Features
POWER-PACKED
Four-wheel drive, terrain-taming suspension and selectable rear locking differential make this compact UTV able to handle any conditions, so you can tackle trails and the back 40 with confidence and ease.
COMPACT

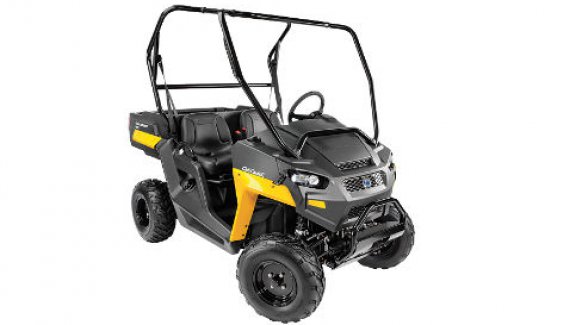

A 50-inch width means the Challenger™ 400 4x4 can fit in the bed of a standard pickup truck, so you can take it where you can’t take other utility vehicles.
VERSATILE
Complete any job with a 400-pound capacity and dent-resistant, double-walled cargo bed. Integrated D ring tie-downs keep your supplies in place while horizontal and vertical bed divider slots keep things organized.
Specifications
SPECIFICATIONS |
Cargo Bed: Dent-resistant, double-walled cargo bed with tie downs (accepts bed dividers) |
Platform: Utility Vehicle |
Speed Limiter: Reverse speed limiter (12 mph) |
Front Suspension: Dual A-arm |
Suspension Front/Rear: Solid axle with high angle articulation for increase traction |
Fuel Efficiency: 30 MPG |
Rear Differential: Manually lockable |
Transaxle: Schafer |
Selector: Forward-Neutral-Reverse |
Rear Axle Housing: Die-cast aluminum |
ROPS: SAE J2258 |
Seat Belts: 3 point seat belts with angle lockout |
Frame: Front bumper included. Powder coated and e-coated steel frame with automotive-grade corrosion protection. |
Series: CHALLENGER |
Bed Lift: Hydraulic lift assist |
Tailgate: Flip-down, latchable tailgate |
Speed: Up to 25 mph |
Engine Type: Subaru EX40 Air Cooled |
Towing Capacity: 500 lbs. |
Shocks: Heavy-duty coil |
Torque: 19.9 ft.-lbs @ 4,000 rpm |
Ignition: Magneto |
Windshield: Sold separatley |
Air Cleaner: Canister with paper element |
Roof: Optional/Available as attachment |
Engine Displacement: 404cc |
Drive System: 2WD |
Lubrication: Splash with chain carry |
Transmission: Enclosed CVT |
Minimum Ground Clearance: 5.5" |
Overall Length: 96" |
Travel: 6" Front, 4.5" Rear |
Cargo Bed Payload: 350 lbs. |
Overall Width: 50" |
Overall Height: 71" |
Weight: 940 lbs. |
Bed Dimensions: 27" x 37" x 12" |
Fuel System: Gas |
Fuel Tank Capacity: 5.7 gal. |
Front Tire Size: 21" x 7" x 10" |
Rear Tire Size: 22" x 9" x 10" |
Tire Type: Offroad/Trail |
Wheels: 10" Steel with sealed, automotive-style bearings |
Headlights: LED with low beam and high beams |
Seating: Adjustable Sports Style |
Headrests: Optional/Available as attachment |
Display: Standard Digital Dash w/ Speedometer |
