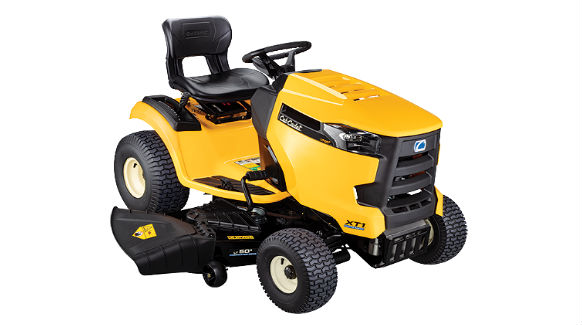

Cub Cadet XT1 LT50

Double tap to zoom



Features

Advanced Cutting Performance

A new muscular cutting system features stamped and fabricated cutting deck options built with heavy duty materials and an advanced belt design, ensuring durability and reliability while delivering the pristine Cub Cadet Signature Cut™ and an unprecedented level of bagging performance.

Exceptional Corrosion Protection

Only Cub Cadet offers the protection of the Corrosion Defense System with E-Coat. A multi-step process electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear.

Incredibly Responsive Handling

The XT 1’s new steering system delivers optimized command and control at every turn.

Specifications

ENGINE
Engine Type: 24 HP professional-grade Kohler® 7000 Series OHV
Cylinders/Material: Twin/Cast-iron sleeve
Lubrication: Fully pressurized automotive-style oil pump w/ spin-on oil filter

POWER SYSTEM
Powertrain: Tuff Torq® foot-controlled hydrostatic transmission (K46)
Rear Differential: N/A
Engine to Transmission: Heavy-duty belt
Cruise Control : Soft touch engagement
Transmission Housing: Cast aluminum

STEERING
Rear Axle: 3/4" w/dual PM steel drive hubs
Steering/Turning Radius: NEW optimized steering system, manual sector and pinion/16"
Front Pivot Bar: Heavy-duty cast-iron (5-year limited warranty/unlimited hours)
Front Axles: Heavy-duty 3/4" through machined bushings
Ball Joints: Fully-adjustable/Automotive-style

ELECTRICAL SYSTEM
Battery: 230 cold crank amps
Charging System: Flywheel Alternator - 12 amp regulated
Headlights: NEW LED High Illumination
System Monitor Package: Digitial hour meter/service minder, oil, battery, brake and PTO start sequence
Cub Connect™: N/A
Safety Systems: Neutral Start, operator presence, reverse safety switch, brake pedal lock, RevTek reverse mowing technology

OPERATION
PTO Clutch: Electronic fingertip engagement
Deck Lift: Lever/12-position/spring assisted
Brakes: Automotive-style disc
Seat: NEW Cub Comfort™ high-back seat with 10 degree incline and slide

MOWER DECK
Cutting Width/Blades: 50"/Triple Blades
Deck Construction: Stamped
Deck Cutting Height: 1" - 4"
Anti-scalping Wheels (front/rear): 2 Ball/2 Ball/Nose Roller
Mulch Kit: Optional
Deck Spindles: 3/4" with steel cap and Triple Lip Sealed
Deck Pulleys: Split steel spindle pulleys/oversized heavy-duty idlers
Deck Attach/Removal: QuickAttach™ (no tools required)
Deck Wash: Patented SmartJet™ high-pressure deck washing system

WARRANTY
Warranty: 3-year Unlimited Hours (includes Powertrain) & 5-year Chassis & Front Axle Unlimited Hours/limited lifetime fabricated deck shell
