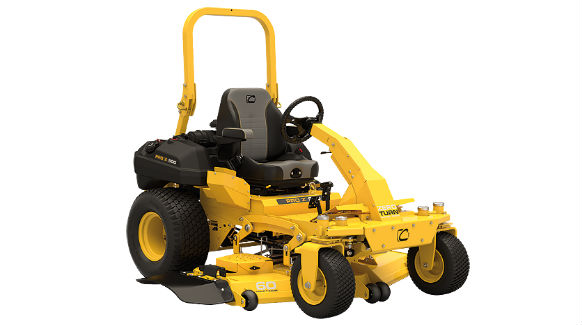

Cub Cadet PRO Z 960 S KW

Double tap to zoom



Features

MAXIMIZE YOUR WORKDAY

The steering wheel zero-turn option increases hillside stability, helping you cover acres up to 10% faster than comparable lap bar units. Plus, with the power of high-performance engines, you can tackle tough jobs and achieve a quality cut, day in and day out.

BEST-IN-CLASS DECK

Tackle the toughest conditions with the industry-leading only triple-7-gauge steel cutting deck: a 7-gauge deck shell with 7-gauge top and bottom reinforcements. Designed for durability, our decks produce a quality cut you can always count on.

MAINTENANCE MADE EASIER

Slash downtime thanks to Cub Cadet’s new spindle design. Completely sealed, dual double-row ball bearings make the spindle maintenance-free for its lifetime, and anti-friction washers prevent self-tightening, making blade maintenance easier.

PIVOTING FRONT AXLE

A pivoting front axle allows the front end of the PRO Z to ride across unseen terrain while protecting the quality of the cut. The frame and axle float as the PRO Z moves, allowing the deck to adapt to the shape of the terrain and avoid scalping and turf damage.

Specifications

STEERING
Lap Bar / Steering Wheel Adjustment:  Multi-position Quick-adjust steering column

CHASSIS
ROPS: 2" x 2" spring-latch tool-less foldable 3 position
Rear Bumper:  5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
Front Axle / Yokes:  2" x 3" solid axle tube with ISO dampening suspension and 1/2" thick steel front yokes
Frame:  Fully welded, full-length 3/8 x 5" laser cut steel / integrated tie-down slots

OPERATION
Lap Bar / Steering Wheel Control:  High Performance Steering Wheel with Foot-pedal Control
Cruise Control:  N/A
Front Tires:  16" x 6.5" - 8" turf
PTO Clutch: Warner PTO Clutch (200 ft. lb.) with Soft-Start
Seat Type:  High-back Air-Ride suspension with EVC cushion, padded arm rests, ISO mounted base (lateral suspension),angle back adjust and lumbar support,seat belt
Park Brake / Braking:  Hand-operated lever with integrated hydro pump release lever
Throttle/PTO/Key Switch:  HD Low-profile throttle lever, sealed key switch & electronic fingertip engagement pto
Rear Tires:  26" x 12" - 12" (Turf Tread)

DIMENSIONS
Weight (approx):   1580 lbs.
L / W / H with discharge chute UP and ROPs DOWN:  88" L x 73" W x 48" H

MOWER DECK
Spindle Construction:  8" sealed cast aluminum housing (maintenance-free)
Deck Blades:  3 high-lift Marbain® blades / 18,500 fpm (approx.)
Deck Height Adjustment:  Foot pedal with spring assist
16 Positions
Deck Material:  fabricated 7ga. (.187”) steel shell
Rolled Leading Edge Reinforcement:  1/4" (.250") steel
Deck Size/Type:  60" FABRICATED DECK
Bottom Reinforcement:  7ga. (.187") bottom plate
Top Reinforcement(s):  7ga. (.187") top plate
Trim-Side Wear Guard:  3/4" Thick UHMW-PE Replaceable Trim-side Wear Guard
Cutting Height:  1" - 5"
Discharge Chute:  High-density, impact-resistant rubber
Spindle Covers:  Steel - Tooless Quick Release
Side Construction:  5/16"(.313) steel on trim and discharge sides
Deck Style/Construction:  7ga. top plate
7ga. bottom reinforcement
¼” rolled leading edge
Anti-Scalping: 2 Front HD w/ Bushings & Grease Zerk

GENERAL
Cup Holder:  Intergrated into Side Pod
Hour Meter:  Standard electronic

ENGINE & DRIVE SYSTEM
Fuel Capacity:  Twin 7.45 gal. tanks (14.9 gal. total) with electronic fuel gauge
Ground Speed:  Fwd: 14 mph / Rev: 7 mph
Horsepower / CC's:  35hp - 999cc
Engine Type:  Kawasaki FX1000v
Transmission:  Parker HTG 16cc pump / 310cc wheel motor
