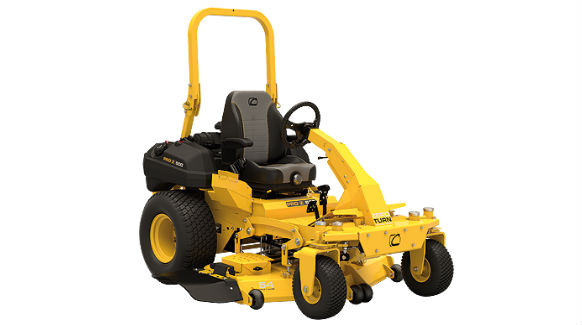

Cub Cadet PRO Z 554 S KW

Double tap to zoom



Features

MAXIMIZE YOUR WORKDAY

The steering wheel zero-turn option increases hillside stability, helping you cover acres up to 10% faster than comparable lap bar units. Plus, with the power of high-performance engines, you can tackle tough jobs and achieve a quality cut, day in and day out.

BEST-IN-CLASS DECK

Tackle the toughest conditions with the industry-leading only triple-7-gauge steel cutting deck: a 7-gauge deck shell with 7-gauge top and bottom reinforcements. Designed for durability, our decks produce a quality cut you can always count on.

MAINTENANCE MADE EASIER

Slash downtime thanks to Cub Cadet’s new spindle design. Completely sealed, dual double-row ball bearings make the spindle maintenance-free for its lifetime, and anti-friction washers prevent self-tightening, making blade maintenance easier.

PIVOTING FRONT AXLE

A pivoting front axle allows the front end of the PRO Z to ride across unseen terrain while protecting the quality of the cut. The frame and axle float as the PRO Z moves, allowing the deck to adapt to the shape of the terrain and avoid scalping and turf damage.

Specifications

SPECIFICATIONS
Steering Wheel Control:  Steering wheel w/ quick-adjust tilt column

CHASSIS
Frame:  Fully welded, full-length 3/8 x 5" laser cut steel / integrated tie-down slots
Rear Bumper:  5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
Front Axle / Yokes:  2" x 3" solid axle tube and 1/2" thick steel front yokes
ROPS:  2" x 2" spring-latch tool-less foldable 3 position

OPERATION
Front Tires:  15" x 6" - 6" smooth (turf)
Rear Tires:  24" x 12" - 12" (Turf Tread)
Lap Bar / Steering Wheel Control:  High Performance Steering Wheel with electronic power steering & Foot-pedal Control
Park Brake / Braking:  Hand-operated lever with integrated hydro pump release lever
Throttle/PTO/Key Switch:  HD Low-profile throttle lever, sealed key switch & electronic fingertip engagement pto
Cruise Control:  N/A
Seat Type: High-back dial suspension with EVC Cushion
seat belt
angle back adjust
arm rests
PTO Clutch: Warner Clutch - 125 ft lb.

DIMENSIONS
Weight (approx):   1424 lbs.
L / W / H with discharge chute UP and ROPs DOWN:  84" L x 56" W x 50" H

MOWER DECK
Deck Material:  fabricated 7ga. (.187”) steel shell
Spindle Construction:  8" sealed cast aluminum housing (maintenance-free)
Deck Blades:  3 high-lift Marbain® blades / 18,500 fpm (approx.)
Top Reinforcement(s):  7ga. (.187") top plate
Deck Size/Type:  54" Fabricated Deck
Trim-Side Wear Guard:  3/4" Thick UHMW-PE Replaceable Trim-side Wear Guard
Side Construction:  5/16"(.313) steel on trim and discharge sides
Discharge Chute:  High-density, impact-resistant rubber
Cutting Height:  1" - 5"
Bottom Reinforcement:  7ga. (.187") bottom plate
Deck Height Adjustment:  Foot pedal with spring assist
16 Positions
Rolled Leading Edge Reinforcement:  1/4" (.250") steel
Anti-Scalping: 2 Front HD w/ Bushings & Grease Zerk
Deck Style/Construction:  7ga. top plate
7ga. bottom reinforcement
¼” rolled leading edge

GENERAL
Cup Holder:  Intergrated into Side Pod
Hour Meter:  Standard electronic

ENGINE & DRIVE SYSTEM
Fuel Capacity:  Twin 7.45 gal. tanks (14.9 gal. total) with dial gauge
Ground Speed:  Fwd: 10 mph/Rev: 5 mph
Horsepower / CC's:  27hp - 852cc
Engine Type:  Kawasaki FX850v
Transmission:  Parker HTJ Series
12cc pump / 260cc wheel motor
