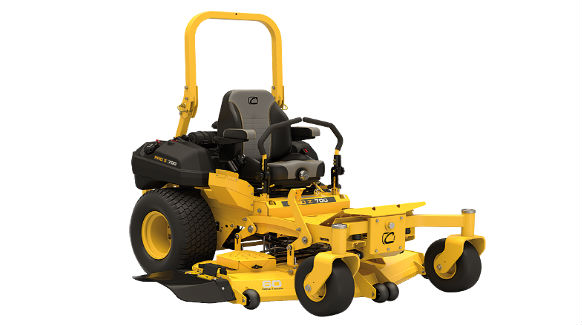

Cub Cadet PRO Z 760 L KW EFI

Double tap to zoom



Features

CUSTOM LAP BAR DESIGN

Oversized zero-turn lap bars with quick-adjust knobs, full-length comfort grips and integrated automatic parking brake system reduces operator fatigue.

BEST-IN-CLASS DECK

Tackle the toughest conditions with the industry-leading only triple-7-gauge steel cutting deck: a 7-gauge deck shell with 7-gauge top and bottom reinforcements. Designed for durability, our decks produce a quality cut you can always count on.

MAINTENANCE MADE EASIER

Slash downtime thanks to Cub Cadet’s new spindle design. Completely sealed, dual double-row ball bearings make the spindle maintenance-free for its lifetime, and anti-friction washers prevent self-tightening, making blade maintenance easier.

ALL-DAY COMFORT

The PRO Z has been engineered to absorb the punches so your body doesn’t have to. Our exclusive air-ride seat allows you to adjust seat firmness to your personal preference for a smooth ride all day long.

BEEFED-UP FRONT END

Absorb the impact of rough terrain with new front-end construction featuring a best-in-class combination of axle, hub and yoke size. With an isolation-dampening system and maintenance-free ball bearings, the PRO Z is designed to handle the rigors of the job.

Specifications

STEERING
Lap Bar / Steering Wheel Adjustment:  3/4 length padded bars w/tooless quick adjust dial

CHASSIS
Rear Bumper:  5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
Frame:  Fully welded, full-length 3/8 x 5" laser cut steel / integrated tie-down slots
ROPS:  2" x 2" quick-latch tool-less foldable 3 position
Front Axle / Yokes:  2" x 3" solid axle tube with ISO dampening suspension and 1/2" thick steel front yokes

OPERATION
Lap Bar / Steering Wheel Control:  High Performance & Speed Control
Rear Tires:  24" x 12" - 12" (Turf Tread)
Seat Type:  High-back dial suspension with EVC cushion,
padded arm rests
ISO mounted base (lateral suspension)
angle back adjust and lumbar support
seat belt
PTO Clutch:  Warner PTO Clutch (200 ft. lb.) with Soft-Start
Throttle/PTO/Key Switch:  HD Low-profile throttle lever, sealed key switch & electronic fingertip engagement pto
Park Brake / Braking:  Hand-operated lever with integrated hydro pump release lever
Cruise Control:  N/A
Front Tires:  13" x 6.5" - 6" (smooth)

DIMENSIONS
Weight (approx):  1424 lbs.
L / W / H with discharge chute UP and ROPs DOWN:  86" L x 62" W x 52" H

MOWER DECK
Trim-Side Wear Guard:  3/4" Thick UHMW-PE Replaceable Trim-side Wear Guard
Side Construction:  5/16"(.313) steel on trim and discharge sides
Spindle Construction:  8" sealed cast aluminum housing (maintenance-free)
Deck Blades:  Triple-blade / High-lift blade (standard) Marbain Blade
Bottom Reinforcement:  7ga. (.187") bottom plate
Rolled Leading Edge Reinforcement:  1/4" (.250") steel
Cutting Height: 1" - 5"
Top Reinforcement(s):  7ga. (.187") top plate
Deck Height Adjustment:  Foot pedal with spring assist 16 Positions
Discharge Chute:  High-density, impact-resistant rubber
Deck Size/Type:  60" FABRICATED DECK
Deck Material:  fabricated 7ga. (.187”) steel shell
Anti-Scalping:  2 Front HD w/ Bushings & Grease Zerk
Deck Style/Construction:   7ga. top plate   7ga. bottom reinforcement  ¼” rolled leading edge

GENERAL
Cup Holder:  Intergrated into Side Pod
Hour Meter: Standard electronic

Engine & Drive System
Ground Speed:  Fwd: 12 mph / Rev: 6 mph
Fuel Capacity:  Twin 7.45 gal. tanks (14.9 gal. total) with electronic fuel gauge
Engine Type; Kawasaki FX850v EFI
Horsepower / CC's: 29.5 HP - 852cc
Transmission:  14cc Parker® HTG pump with hydro release lever
