Features
Unbeatable in every environment.

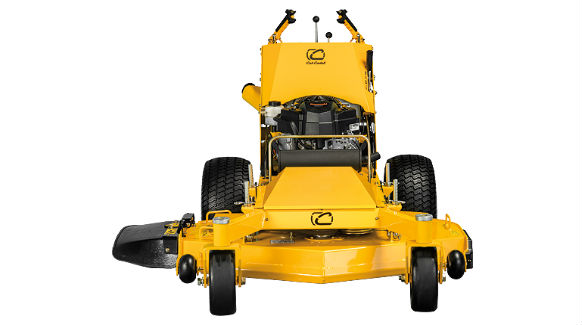

The PRO HW™ has the thickest steel beam, control center and yokes in the industry. Paired with a higher ground clearance and superior weight balance, this commercial walk behind mower can easily maneuver over curbs while moving forward or in reverse and can follow any contour effortlessly thanks to a fixed floating deck.
Good things can come easy.
This machine is tough, but not on you. Easy-Trac steering hand levers use less force to steer the mower. Straight-line adjustable tracking allows for on-the-go straight line adjustments with the turn of a knob. The hydro drive system with cruise control gives you infinite speed control so you can mow at your own pace.
Minimize maintenance, maximize performance.
The PRO HW™ features a new spindle assembly, including completely sealed, single-row ball bearings that are maintenance-free, which means less downtime for you and your crew.
Specifications
| CHASSIS |
| Additional Frame Features: 1.5 x 3" fully welded tube |
| Frame: Operator Tower with 7ga. Construction |
| Rear Bumper: N/A |
| ROPS: N/A |
| Front Axle / Yolks: Frame-mounted foot pedal front-end lift assist |
| MOWER DECK |
| Discharge Chute: High-density, impact-resistant rubber |
| Top Reinforcement(s): 7ga. top plate |
| Deck Height Adjustment: 4-pin manual with deck-mounted lift handles / 7 positions |
| Spindle Construction: 5" sealed cast aluminum housing (maintenance-free) |
| Side Construction: 1 / 4" steel |
| Deck Size/Type: 48" Fabricated Deck |
| Trim-Side Wear Guard: ¾" trim-side (polymer) |
| Deck Blades: 3 high-lift Marbain® blades / 18,500 fpm (approx.) |
| Cutting Height: 1.5" - 4.5" |
| Bottom Reinforcement: 7ga. (.175") steel |
| Leading Edge Reinforcement: 7 ga. |
| Deck Style/Construction: Fixed floating, fabricated 10ga. (.135”) steel shell |
| OPERATION |
| Rear Tires: |
| Park Brake / Braking: |
| Operator Controls: Single-lever cruise control (0-7 MPH) |
| Front Tires: 11" x 4" - 5" smooth (run flat) |
| PTO Clutch: Warner Clutch - 125 ft lb. |
| Cruise Control: N/A |
| Lap Bar / Steering Wheel Control: Hand-lever steering control with ball bearing linkage for smooth feel |
| Additional Controls: Single-knob straight line tracking ajustment |
| GENERAL |
| Hour Meter: Standard electronic |
| DIMENSIONS |
| Width (Chute Up / Down): 50"/61" |
| Height (ROPS Down / Up): 46" |
| Weight: 665 lbs |
| Length: 77" |
| ENGINE & DRIVE SYSTEM |
| Horsepower / CC's: 15hp 603cc |
| Engine Type: Kawasaki FS541v (Electric Start) |
| Fuel Capacity: 5 gal. |
| Ground Speed: 7mph fwd. / 3mph rev. |
| Transmission: Hydro-Gear® ZT 2800 charged (commercial-grade) |
