Features

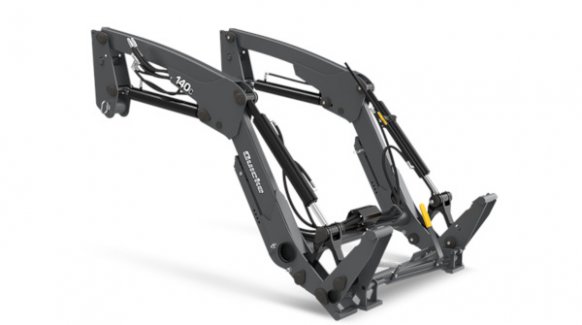

World-leading design and performance – the benefits of Quicke front loaders are available for your compact tractor. Professional standards that always are in place to ensure your working day is as straightforward and productive as possible

Specifications

Lift heights and bucket angles
Maximum Lift Height - Measured at Pivot Pin (m) 2.38
Maximum Lift Height - Under Level Bucket (m) 2.19
Maximum Dump Angle at Maximum height° (Degrees) 50
Maximum Q Level angle° (Degrees) N/A
Maximum Rollback Angle at ground° (Degrees) 25
Loader forces
Lift Capacity to Maximum Height -800mm From Pivot Pin (kg) 370
Lift Capacity, 1,5m Height -800mm From Pivot Pin (kg) 450
Breakout Force -800mm From Pivot Pin (kg) 560
Rollback Force at Ground Level -800mm From Pivot Pin (kg) 780
Reach data
Clearance with bucket dumped 45 deg (mm) N/A
Loader physical data
Arm width (C-C) (mm) 990
Weight - Front loader (kg) 210
Loader position
Digging Depth (mm) 125
Tractor / Loader physical Data
Tractor PTO HP Range (hp) 20-40
Tractor weight (max)(kg) 1000
Loader Weight (kg) 210
Arm width (C-C) (mm) 990
* Varies depending on machine and implement
