Features

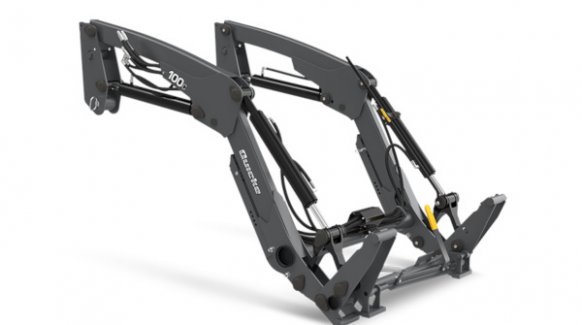

World-leading design and performance – the benefits of Quicke front loaders are available for your compact tractor. Professional standards that always are in place to ensure your working day is as straightforward and productive as possible

Specifications

Lift heights and bucket angles
Maximum Lift Height - Measured at Pivot Pin (m) 1.90
Maximum Lift Height - Under Level Bucket (m) 1.76
Maximum Dump Angle at Maximum height° (Degrees) 51
Maximum Q Level angle° (Degrees) N/A
Maximum Rollback Angle at ground° (Degrees) 30
Loader forces
Lift Capacity to Maximum Height -800mm From Pivot Pin (kg) 1210
Lift Capacity, 1,5m Height -800mm From Pivot Pin (kg) 210
Breakout Force -800mm From Pivot Pin (kg) 280
Rollback Force at Ground Level -800mm From Pivot Pin (kg) 340
Reach data
Clearance with bucket dumped 45 deg (mm) N/A
Loader physical data
Arm width (C-C) (mm) 812
Weight - Front loader (kg) 180
Loader position
Digging Depth (mm) 125
Tractor / Loader physical Data
Tractor PTO HP Range (hp) 20-25
Tractor weight (max)(kg) 600
Loader Weight (kg) 180
Arm width (C-C) (mm) 812
* Varies depending on machine and implement
