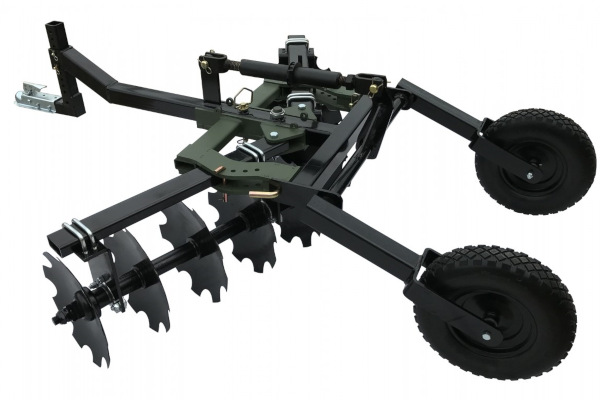

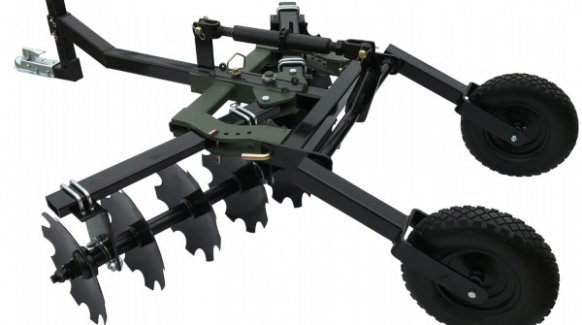

DHV Series Disc Harrows DHV66
Overview:
The DHV Disc Harrows are designed to attach to the Terra Hog System to allow your ATV and UTV to aerate your manicured lawn.
Get a Quote »
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send to a friend »
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Attaches to the Terra Hog System
Cutting width: Up to 66"
# of Blades: Up to 10
Specifications
MODEL
DHV66
Product Description
ATV Disc Harrow 66"
Overall Width
67"
Cutting Width
66"
Overall Depth
21 5/8"
Weight
371 lbs.
Blade Spacing
7 1/2"
# of Blades
10
Blade Type
Notched
Bearing Type
Self Aligning, Ball Bearing
Angle Adjustment
0°, 7°, 14°, 21°
King Pin
1 1/4"
