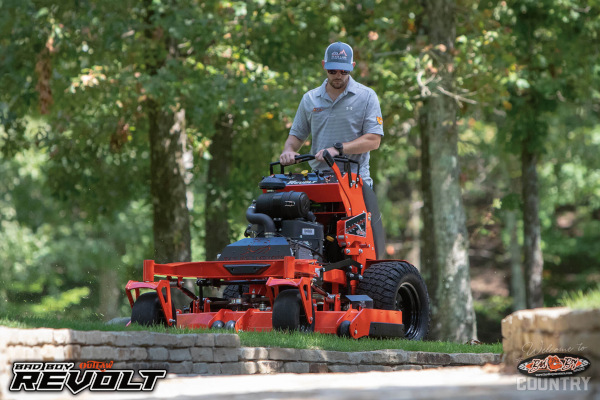

Bad Boy Mowers 726cc Kawasaki® FX 23.5HP

Double tap to zoom



Features

POWER AND INNOVATION

Dual High-Performance Hydro-Gear Integrated Drive Systems for reliable, self-contained power and performance. Curved iBeam front rail and steel 3/8˝ front forks and 3 1/8˝ trail for smooth directional changes. More compact than most Stand-Ons, the Revolt is shorter in length for better in and around cutting. Patented Dual Deck Support Isolators, paired with deck wear pads, minimizes damage from any side impact.

STRENGTH AND CUT QUALITY

Heavy-gauge, all-steel, all-welded and fabricated 1.5˝ x 3˝ frame rail provides the backbone for years of durable service. A three-position speed control provides smoother operation in the tightest of spaces. The quick-access panel to the deck and drive belts, with the flip-up thigh pad revealing the battery, control arms and hydro tanks, makes the Revolt the easiest to service in the industry. Features a sloped 7 gauge steel deck with reinforced 3/8˝ sides. Larger rear tires provide excellent grip and traction.

CONTROL AND COMFORT

Our adjustable rubber suspension riding platform absorbs vibrations normally passed along to the rider’s knees and joints and the soft, ergonomic thigh pad accommodates operators of all heights and provides all day mowing comfort. The Revolt can get you into even tighter spaces with smaller 36˝ or 48˝ deck cutting widths available.

Specifications

ENGINE OPTIONS
 Kawasaki  5400/6100 - 852cc Air-Cooled 27hp V-Twin FX850
 Vanguard  5400/6100 - 810cc Air-Cooled EFI
 Kawasaki  3600 - 726cc Air-Cooled FX691
 Kawasaki  4800 - 726cc Air-Cooled FX730
DIMENSIONS
 Cutting Width 3600 - 36"
4800 - 48"
5400 - 54"
6100 - 61"
 Weight  3600 - 777 lbs.
4800 - 905 lbs.
5400 - 925 lbs.
6100 - 945 lbs.
 Overall Height/Length  48"/63"
 Chute Up/Chute Down Width  3600 - 38.5"/50.5"
4800 - 50.5"/62.5"
5400 - 56.5"/68.5"
6100 - 63.5"/75.5"
FEATURES
 Transmission 3600 - 3100 Hydro-Gear® 12cc Integrated Transaxle
4800 - 3400 Hydro-Gear® 12cc Integrated Transaxle
5400/6100 - 3400 Hydro-Gear® 12cc Integrated Transaxle
 Deck Thickness  3/16" Thick Solid Steel
 Cutting Height  2"-5" With Deck Height Control System
 Lift and Height Adjustment  Manual Lift
 Rear Tires/Front Tires  3600 - 21x7-10 Turf /13x6-6 Smooth
4800/5400/6100 - 23x9-12 Turf /13x6-6 Smooth
 Fuel  6.5 Gallons; Unleaded Gasoline
Ground Speed (Forward) Up To 9 mph
