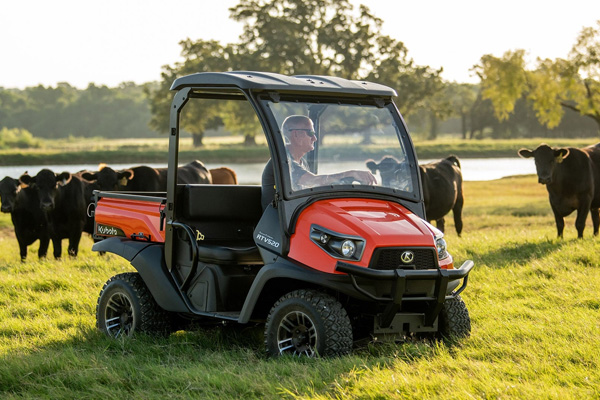

No matter where you go or what job you need to get done, you can count on the RTV520 to make easy work of it, every single time. A liquid-cooled Kubota engine delivers more than 17 horsepower, while the VHT transmission provides single-pedal operation and hill-hold support to increase driver confidence no matter the terrain. The heavy-duty cargo bed with dump capabilities and a towing capacity of 1,168 lbs make quick work of every project on your to-do list.
No matter how experienced you are behind the wheel of a utility vehicle, the machine needs to make your life easier. The RTV520 does just that with worry-free ownership, made possible with reduced maintenance, enhanced protection for key components, and easy operation. Rest assured you have a vehicle you can rely on day in, day out.
GET THERE COMFORTABLY
Enjoy a smooth, and comfortable ride, thanks to the RTV520’s improved suspension and softer seat. The engine improvements also deliver reduced vibration and a quieter ride and can be customized to match any season. We now offer an enclosed cab which delivers protection from the elements even in cold environments.
ACCESS ANY AREA
Access any area with the nimble stature and maneuverability of the RTV520. At 54.7 in. wide, you can easily access narrow roads and squeeze through tight gates. The vehicle is very easy to turn. When combined with a tight turning radius, the RTV520 unlocks areas all over your property or worksite.
|Engine Type||2-cylinder, Gas, OHC, Water-cooled, EFI|
|Horsepower HP (kW) /rpm||17.4 (13.0)|
|Displacement cu. in. (cc)||31.4 (514)|
|Cargo Bed Load lbs. (kg)||440 (200)|
|Towing Capacity Ibs. (kg)||1168 (530)|
|Length in. (mm)||105.1 (2670)|
|Width in. (mm)||54.7 (1390)|
|Height, Overall in. (mm)||74 (1880)|
|Drive System||4WD Standard|
|Transmission / Transmission Type||VHT PLUS|
|Fuel Tank Capacity US gal (L)||5.1 (19.2)|
|Max. Traveling Speed mph (km/h)||0-24.9 (40)|
