Strong Chassis Design
All Kubota tedders are built around a rugged, CNC bend, box chassis made out of one piece of metal with only one welding seam for maximum rigidity. The chassis design is fully enclosed at the top edge for maximum strength.
The symmetric Kubota Super-C tines efficiently pick up the crop from two different areas. As it spreads the crop, the crop is inverted so the lower crop is placed on the top, giving a more even dry down. The crop is then spread evenly across the width of the machine for consistent drying. These tines are made of 0.39" shot-peened spring steel. Our spring coil diameter has a 20% larger diameter than conventional designs. This increases each tine service life, even when tedding heavy, high moisture crops.

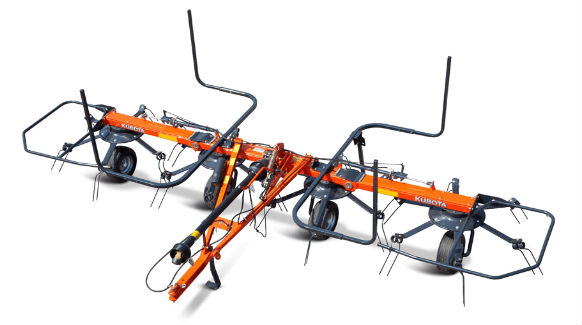

Pull Type Version
Pull-type design with low weight and power requirements. The low weight of 904 lbs. is ideal for applications with small tractors, or in hilly terrain.
These Kubota tedder models have a maintenance-free, oil-immersed gearbox, which means less time required for servicing and more time in the field. The gearboxes are integrated into the frame, making them extremely durable. Because they are not part of the frame structure, but are mounted within the actual frame, the gearbox is relieved of frame stresses.
