Exceptional Raking Performance

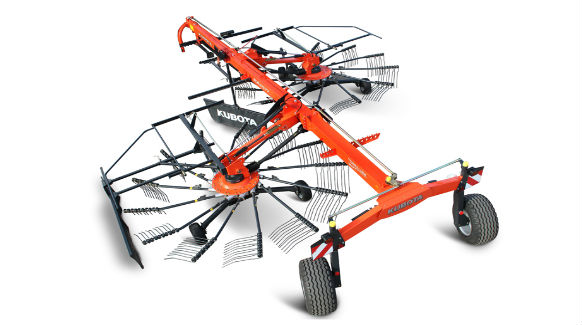

The RA2577 features twelve tine arms and four double tines per arm on the front rotor, and thirteen tine arms and five double tines per arm on the rear rotor to provide high tine frequency. This ensures clean raking performance in all types and volumes of crop.
Fast and Safe Transport
For fast and safe transport from field to field, RA2577 can be optionally equipped with a hydraulic swath board. The transport width of this model is 9'9".
Maintenance Free ProLine Gearbox
Kubota RA2577 Rakes are fitted with the renowned ProLine gearbox, with its maintenance-free oil bath solution. The shape of the massive 15.7" curve disc allows the tine arms to leave the crop faster, leaving a more uniform swath shape.
Kubota rakes are equipped for maximum raking performance. The RA2577 rakes include heavy duty 0.39" wire diameter tines for outstanding durability.
High Capacity Working Width
The RA2577 ProLine double rotor rake delivers a working width of 24’ raking width & 25'3" with swath. The high capacity side delivery concept adds excellent flexibility in swath formation and allows you to collect crop from a working width of up to 48’ into one swath.
Kubota's side delivery rotary rake has a carrier frame with rear wheel steering, allowing the rake to make turns up to 80 degrees. This is ideal for making tight turns on headlands and productive swathing, even in awkwardly shaped fields. When in headland position, an outstanding lifting height of 18” prevents swath damage. And with a lower center of gravity, this model has excellent stability.
