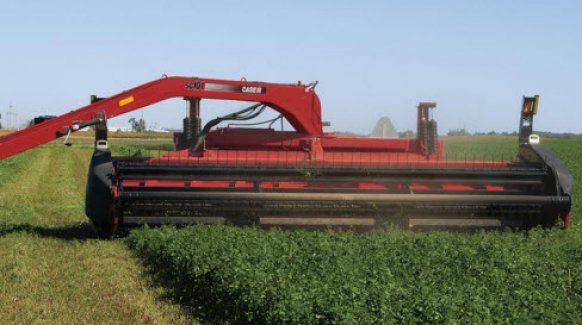

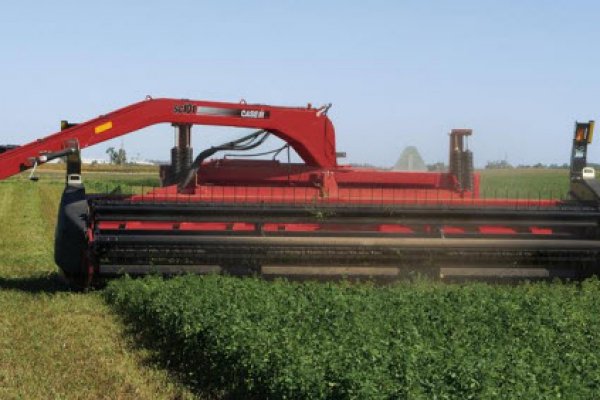

Case IH Products SC101 for sale at H&R Agri-Power



Self-propelled Capacity and Maneuverability
For self-propelled capacity and maneuverability at a pull-type price, fit an HDX 2 Series sicklebar header to the SC101 . Choose one of three cutting widths: 14 ft. 3 in. (4.34 m), 16 ft. 3 in. (4.95 m) and 18 ft. 3 in. (5.56 m). Features center-pivot design with hydraulic tongue swing and 1,000-rpm hydrostatic drive.


Make Case IH
Model SC101-HDX142
Tongue, Side-pull or Center pivot Center Pivot
Sickle Header
Cutting width, ft in (m) 14' 3" (4.34)
Overall width, operating, ft in (m) 16' 3" (4.95)
Cutting height range, in (mm) 1.2 - 6.2 (30-157)
Header flotation Full lateral and vertical
Sickle Cutterbar
Sickle count, single or dual Dual
Sickle speed, spm 1810
Sickle stroke, in (mm) 3 (76)
Guard or cutting angle range, degrees 6 to 12
Sickle drive Open, double wobble
Number of reel tine bars 5
Reel diameter, in (mm) 42 (1067)
Reel speed range, rpm 52 - 87
Reel drive Belt and chain
Auger count, single or dual Single
Auger diameter, in (mm) 20 (508)
Auger speed, rpm 287
Auger drive Chain
Roll Conditioner
Roll length, in (mm) 102 (2591)
Roll diameter, in (mm) 10.375 (264)
Roll speed, rpm 717
Roll material Rubber on rubber
Alternate roll material Steel on steel
Roll surface pattern Intermeshing chevron
Roll drive Spur drive gearbox and PTOs
Windrow/swath width, in (mm) 38 - 96 (965-2438)
Tractor Requirements
Tractor power, minimum PTO hp (kW) 60 (45)
PTO Rated Speed, rpm 1000
Hookup to Tractor drawbar Hitch on drawbar extension
Hookup to Tractor Hitch Lift Arms No
Number of Remotes 2
Transport Dimensions
Transport Width, ft-in (m) 16' 3" (4.95)
Transport Length, ft-in (m) 25' 11" (7.90)
Transport Height, in (mm) 80 (2032)
Weight, lbs (kg) 6,825 (3096)
Tire Size 31x13.50-15, 8 ply
Sales Literature
Literature number CIH3090902
Literature date 03/01/2009
Operator's Manual
Manual Number 87010379
Manual Date 11/01/2002
Entry Date
Manufacturing Status Current
First Entry Date 10/01/2008
Revision Date 07/01/2012
