Features
Powerful Advantages
- 480 hp to power through demanding field conditions and handle heavy loads
- Fuel-efficient Case IH FPT 12.9 L engine for full Tier 4 B/Final compliance and 10% increase in fuel economy, on average
Advanced Farm Management
- AFS Connect™ 2.0 compatible
- Real-time dashboard access to your equipment on any device
- Track combines, grain carts and semis with up-to-minute harvest information
- Total control over your data - you decide who can see or can't see your data
Greater Grain Capacity
- 410-bushel tank
- High unload rate of 4.0 bu/sec
- Optional dual drive unload system to turn off cross augers independent of unload auger, and to allow unload auger to be emptied with grain in tank
Residue Management
- Widest range of residue management options on the market
- Vertical Spreader provides optimal spread width for headers up to 45 feet
- Chopper provides six residue options to match residue handling requirements
- Dual Disc Spreader - Hydraulically driven variable speed for headers up to 40 feet
Unsurpassed Accuracy
- AFS Pro 700 display with variety tracking offers on-the-go yield monitoring and machine/guidance control
- AFS Variety Tracking for accurate records of seed varieties, inputs and performance; use data from up to 30 different seed varieties
- Automatic Crop Settings to have operator pick crop and have the combine set the basic functions
- Integrated yield and moisture monitoring sensors
Maximum Uptime
- Power Plus CVT drives mean less routine maintenance thanks to only three drive chains and six belts on the entire machine
- Industry leading 600 hours between oil changes
Specifications
| Make | Case IH |

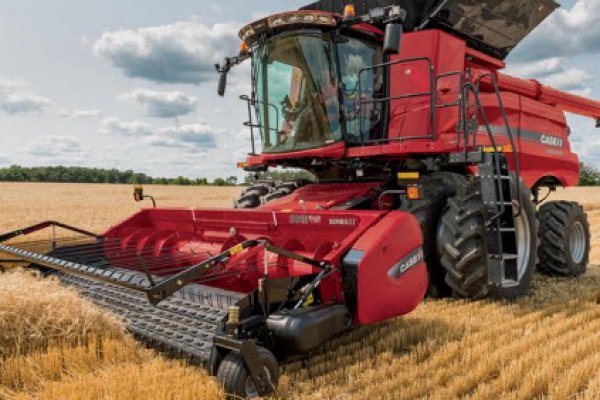

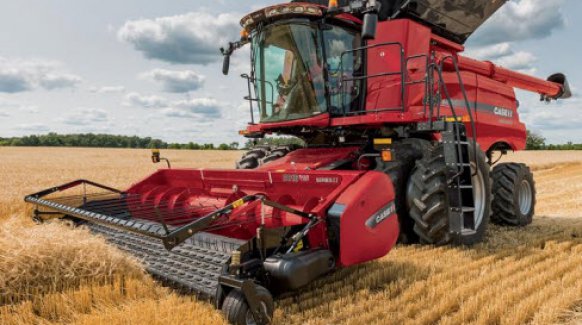

| Model | Axial-Flow 8240 (2015-Present) |
| ENGINE | |
| Horsepower, Rated - hp (kW) | 480 (358) |
| Horsepower, Maximum - hp (kW) | 555 (414) |
| Power Boost - hp (kW) | 75 (56) |
| Engine Make | Case IH FPT |
| Engine Model | C13 |
| Number of Cylinders | 6 |
| Piston Displacement - cu in (L) | 787 (12.9) |
| Emission Tier Level | Tier 4B / Final |
| Fuel Tank Capacity - gal (L) | 297 (1125) |
| Diesel Exhaust Fluid (DEF) Tank Capacity, gal (L) | 43 (163) |
| FEEDING SYSTEM | |
| Feeder Width - in (mm) | 54 (1372) |
| Feeder Speed Variable | Standard |
| Feeder Reverser Control | Electro-Hydraulic |
| Feeder Tilt Adjustment | Fore-aft std; Lateral std. |
| Stone / Rock Protection | Gear Driven Trap |
| THRESHING & SEPARATING SYSTEM | |
| Threshing System Type, Rotary or Conventional Cylinder | Longitudinal rotor |
| Number of Rotors or Cylinders | 1 Rotor |
| Rotor or Cylinder Description | Staggered Rasp Bars |
| Rotor or Cylinder Diameter - in (mm) | 30 (762) |
| Rotor or Cylinder Length - in (mm) | 103.3 (2623) |
| Rotor or Cylinder Speed Range - rpm | 220 - 1180 |
| Threshing Area Wrap - degrees | 180 |
| Concave Adjustment | Electronic, w/position sensor |
| CLEANING SYSTEM | |
| Total Sieve Area - sq in (sq m) | 10,075 (6.50) |
| Leveling System Available | Self-leveling to 12.1% |
| Cleaning Fan Description | 15.4" (391) dia. Cross Flow |
| Cleaning Fan Speed Range - rpm | 300 - 1150 |
| GRAIN HANDLING SYSTEM | |
| Grain Tank Capacity, Standard - bu (L) | 410 (14448) |
| Optional Grain Tank Capacity - bu (L) | No optional tank |
| Unloading Rate - bu/sec. (L/Sec) | 4.0 (141) |
| Unloading Auger Length, Standard - ft-in (m) | See Reach from Machine Center |
| Optional Auger Length - ft-in (m) | See Optional Reach from Machine Center |
| Reach from Machine Center, Standard Auger - ft-in (m) | 28' 9" (8.8) |
| Reach from Machine Center, Optional Auger - ft-in (m) | 23' 6" to 34' (7.2 to 10.4) |
| TIRES and TRACKS | |
| Reference Drive Tire Size | Dual IF520/85 R42 CFO, R1 |
| Steering Tire Size | VF600/70 R28 CFO, R1W |
| Rubber Tracks Available | 30" or 36" Factory Fit |
| WEIGHTS and DIMENSIONS, without Header | |
| Weight, 2WD - lb (kg) | 40,414 (18331) single tires; 44,548 (20207) dual tires |
| Wheelbase, 2WD - in (mm) | 147.7 (3752) |
| Transport Height - ft-in (m) | 12' 10" to 13' 4" (3.91 to 4.06) |
| SALES LITERATURE | |
| Literature Number | CIH09141601 Rev 04/17 |
| Literature Date | 4/1/2017 |
| Other Documentation | |
| Document Number | 47764535 |
| Document Date | 8/1/2014 |
| Status and Entry Dates | |
| Manufacturing Status, Current or Archive | Current |
| First Entry Date | 11/18/2014 |
| Revision Date | 2/15/2015; 6/11/2017 |
