• 500 gal -1,200 gal spoil tank
  • 200 gal-400 gal water capacity
  • 1,000 cfm blower
  • 4 gpm water pump
  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the CV SGT Vacuum Excavator

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the CV SGT Vacuum Excavator

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on CV SGT Vacuum Excavator

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

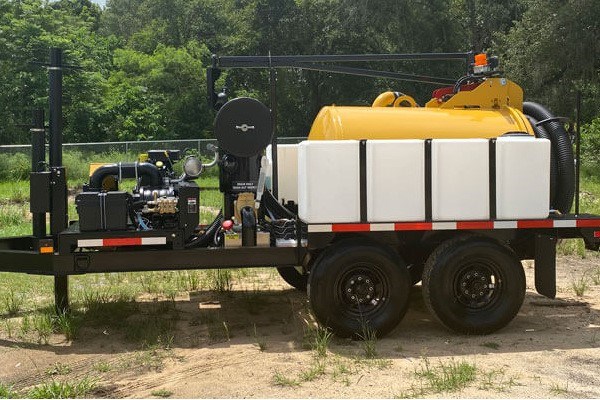

CV SGT Vacuum Excavator Features & Benefits

Helps clean the air

This vacuum excavator features a cyclonic filtration separator as well as a secondary filter to clean the air down to .5 micron.

Simple rear-hydraulic claw door

The rear hydraulic claw door has an over-center locking mechanism for a no-fuss positive lock and unlock.

Optional strong arm®

With 270-degree rotation, the strong arm supports the weight of the vacuum hose, and the roller head allows for ease of handling by allowing smooth, fluid movements and adjustments.

Reverse pressure

Reverse pressure to offload liquids and dislodge debris in the hose.

Sturdy I-beam trailer

Units are built from start to finish at our factory, including the trailer which consists of a sturdy I beam construction.

CV SGT Vacuum Excavator Specs & Compare

TRAILER
Compatibility500-gal (1892.7-L) spoil tank option
Length228 in (579 cm)
Width93 in (236 cm)
Height89 in (226 cm)
Empty weight4800 lbs (2177 kg)
Gross Vehicle Weight Rating (GVWR)9995 lbs (4534 kg)
Trailer axles(2) 7000 lbs (3175 kg)
TRAILER - OPTION TWO
Compatibility800-gal (3028.3-L) spoil tank option
Length246 in (625 cm)
Width97 in (246 cm)
Height89 in (226 cm)
Empty weight5300 lbs (2427 kg)
Gross Vehicle Weight Rating (GVWR)14000 lbs (6350 kg)
Trailer axles(2) 7000 lbs (3175 kg)
TRAILER - OPTION THREE
Compatibility1200-gal (4542.5-L) spoil tank option
Length248 in (630 cm)
Width102 in (259 cm)
Height122 in (310 cm)
Empty weight7350 lbs (3334 kg)
Gross Vehicle Weight Rating (GVWR)24000 lbs (10886 kg)
Trailer axles(2) 12000 lbs (5443.1 kg)
SKID
Compatibility800-gal (3028.3-L) spoil tank option
Length230 in (584 cm)
Width97 in (246 cm)
Height81 in (206 cm)
Empty weight4800 lbs (2177 kg)
ENGINE
Make and ModelKohler EFI Gas
Horsepower38 hp (28.3 kW)
Fuel tank capacity or type15 gal (56.8 L)
WATER TANK
Compatibility500-gal (1892.7-L) spoil tank option
Water capacity200 gal (757 L)
Number of Tanks2
High pressure pump flow rate4 gpm (15.1 L/min)
High Pressure Pump3000 psi (206.8 bar)
High pressure hose length50 ft (15 m)
Low Water ShutoffElectric
WATER TANK - OPTION TWO
Compatibility800-gal (3028.3-L) spoil tank option
Water capacity300 gal (1136 L)
Number of Tanks2
High pressure pump flow rate4 gpm (15.1 L/min)
High Pressure Pump3000 psi (206.8 bar)
High pressure hose length50 ft (15 m)
Low Water ShutoffElectric
WATER TANK - OPTION THREE
Compatibility1200-gal (4542.5-L) spoil tank option
Water capacity400 gal (1514 L)
Number of Tanks2
High pressure pump flow rate4 gpm (15.1 L/min)
High Pressure Pump3000 psi (206.8 bar)
High pressure hose length50 ft (15 m)
Low Water ShutoffElectric
SPOIL TANK
Compatibility500-gal (1892.7-L) spoil tank option
Spoil tank capacity500 gal (1892.7 L)
Door typeHydraulic
Tank Lift TypeHydraulic
SPOIL TANK - OPTION TWO
Compatibility800-gal (3028.3-L) spoil tank option
Spoil tank capacity800 gal (3028.3 L)
Door typeHydraulic
Tank Lift TypeHydraulic
SPOIL TANK - OPTION THREE
Compatibility1200-gal (4542.5-L) spoil tank option
Spoil tank capacity1200 gal (4542.5 L)
Door typeHydraulic
Tank Lift TypeHydraulic
VACUUM
Type of Filters0.5 micron filtration
Hose length30 ft (9 m)
Hose width/diameter4 in
Vacuum1000 cfm (28 cubic m/min)
Vacuum blower typePD blower
Vacuum Mercury14 inHg (0.4 bar)
CONTROL PANEL
ControlsCurbside
GaugesAnalog
OPTIONS
Strong armOptional
Recirculation kitOptional
Hydraulic jackOptional
Reverse PressureStandard
