• Easier drilling for crews of various skill levels with an automated rod exchange and open-side vise.
  • Help increase uptime with on-rig diagnostics and bolstered reliability from redesigned components.
  • Go further and bore more than its predecessor, the D23x30 S3, with an optional 480 ft (150 m) of rod and components designed to drill in tough ground conditions.
  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the D24 HDD

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the D24 HDD

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on D24 HDD

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

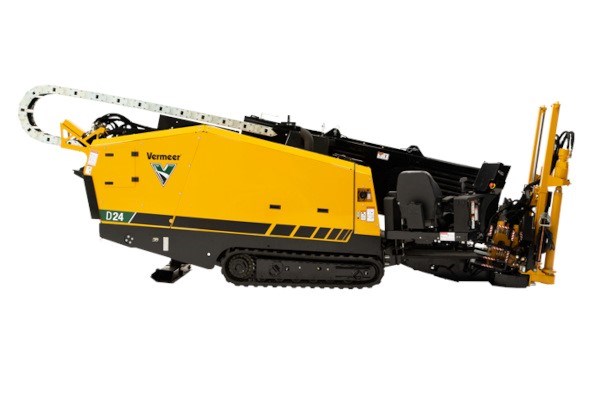

D24 HDD Features & Benefits

Drill longer in harder ground conditions

Optional class-leading rod capacity to bore further with 480 ft (150 m) of rod on board without having to get off the machine. A 45-gpm (170-L/min) mud pump increases fluid flow rate, helping you ream quickly and pull large product faster.

Peace of mind

Taking a new standard, the D24 boasts enhanced hydraulics, electrical design and power train system designed for maximum reliability, all backed with an industry leading 3-year, 3,000-hour OEM extended warranty program.

Innovative components

Intelligent on-rig diagnostics to get ahead of the game with technology that helps deliver more uptime with specific diagnostic explanation and prescriptive troubleshooting steps right to the operator's fingertips.

Easy and automated rod exchange with a single button push completes the entire rod changeout sequence, eliminating up to 19 steps, giving operators from various skill levels more time for more rod in the ground.

Sliding, open-sided vise to minimize the number of steps to change out a rod with this patented vise design. The vise utilizes sliding, open-side functionality, which allows you to see the rod joint.

100-hp CAT® Engine

The drill is equipped with 100-hp (75-kW) CAT® 3.6L Stage V engine. Two 800 CCA batteries improve cold start capability.

Your access to MORE: VermeerOne™

VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real-time data to make smarter decisions, and help maximize productivity and profitability.

D24 HDD Specs & Compare

General Dimensions and Weights
Length (Minimum Transport)224 in
Width (Minimum Transport)56 in
Height (Minimum Transport)89 in
Weight16380 lbs
Angle of Approach18 deg
Engine
Make and ModelCAT C3.6
Fuel TypeUltra low sulfur diesel
Maximum Engine RPM2000 rpm
Idle Speed1000 rpm
Gross Horsepower100 hp
Displacement220 cu-in
AspirationTurbo
Cooling MethodLiquid
Max Fuel Consumption5 gph
Emissions ratingT4F/SV
Maximum Operating Angle (Fore/Aft)*35 deg
Maximum Operating Angle (Left/Right)*35 deg
Operational
Thrust24700 lbs
Max peak thrust24700 lbs
Continuous thrust22000 lbs
Pullback24700 lbs
Max peak pullback24700 lbs
Continuous pullback22000 lbs
Maximum Carriage Speed at Maximum Engine RPM181 ft/min
Maximum Carriage Speed in Low at Maximum Engine RPM90 ft/min
Maximum Spindle Torque (Low at Maximum Engine RPM)3080 ft-lb
Maximum Spindle Torque (Medium at Maximum Engine RPM)2270 ft-lb
Maximum Spindle Torque (High at Maximum Engine RPM)1460 ft-lb
Maximum Spindle Speed (Low at Maximum Engine RPM)99 rpm
Maximum Spindle Speed (Medium at Maximum Engine RPM)132 rpm
Maximum Spindle Speed at Max Engine RPM198 rpm
Minimum Bore Diameter4 in
Maximum Ground Drive Speed at Maximum Engine RPM3.3 mph
Automated Rod LoaderYes, now with Automated Rod Exchange
Noise Level at Operator's Ear88 dB(A)
Guaranteed sound power (CE-rating)100 dB(A)
Fluid Capacities
Fuel Tank35 gal
Hydraulic Tank25 gal
Hydraulic System
Auxiliary Pump Flow at Maximum Engine RPM8 gpm
Auxiliary Pump Relief Pressure2750 psi
Thrust/Pullback Pump Flow at Max Engine RPM27 gpm
Thrust/Pullback Pump Relief Pressure5000 psi
Rotation Pump Flow at Maximum Engine RPM27 gpm
Rotation Pump Relief Pressure5000 psi
Hydraulic Supply Filter RatingB1000 = 6 micron
Hydraulic Return Filter RatingB1000 = 11 micron
Drilling Fluid System Option One
Maximum Flow45 gpm
Maximum Pressure900 psi
BrandFMC
On Board Tank Capacity5 gal
Features
Breakout SystemSliding, open side
Drilling LightsStandard
Flow IndicatorStandard
Stakedown SystemStandard
Strike AlertStandard
Remote LockoutStandard
Operator PresenceStandard
Drill Pipe
Drill Rod Thread#600
Thread TypeFirestick
Length10 ft
Rod Diameter2.375 in (6.03 cm)
Joint Inside Diameter.9 in
Joint Outside Diameter2.625 in (6.67 cm)
Weight75 lbs
Minimum Bend Radius108 ft
Rodbox capacity400 ft
Drill Pipe Option Two
Drill Rod Thread#600
Thread TypeFirestick
Length10 ft
Rod Diameter2.375 in (6.03 cm)
Joint Inside Diameter.9 in
Joint Outside Diameter2.625 in (6.67 cm)
Weight75 lbs
Bend Radius108 ft (33 m)
Rodbox capacity480 ft
