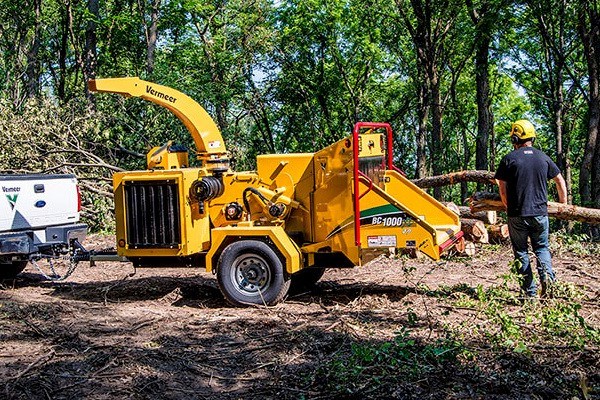

The heavy-duty Vermeer BC1000XL brush chipper with its all-steel engine enclosure is designed to hold up for the long haul. Enhanced with the modern day operator in mind, the BC1000XL is available with either a Tier 4 Final 49-hp or 74-hp (36.4-kW or 55-kW) engine that meets all the latest emission regulations. When transporting the machine, expect smooth towing thanks to the rubber-torsion suspension.

  • Get a Quote Value Your Trade Request Brochure
  • Send to a Friend
  • Payment Calculator

    • Get information on the BC1000XL Tier 4 Final Brush Chipper

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the BC1000XL Tier 4 Final Brush Chipper

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on BC1000XL Tier 4 Final Brush Chipper

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

BC1000XL Tier 4 Final Brush Chipper Features & Benefits

25-GAL (94.6 L) FUEL TANK

Keep up the pace because the BC1000XL comes with a 25-gal (94.6 L) fuel tank that lets you put in more hours before refueling.

MINIMIZED MAINTENANCE

Minimize maintenance because once the shield is opened, belts can be changed without tools, and the clutchless PTO system eliminates the need to slide the engine.

PATENTED BOTTOM FEED STOP BAR

Provides operator safety with the patented bottom feed stop bar. The four-position upper feed control bar with dual stop positions and forward/reverse feed positions mounts over the feed table and enables the operator to stop the feed rollers and select forward or reverse operations.

BC1000XL Tier 4 Final Brush Chipper Specs & Compare

GENERAL DIMENSIONS AND WEIGHTS
Length - Feed Table Up, Tongue In150 in
Length - Table Down, Tongue Extended198 in
Width66.5 in
Height101 in
Weight - Engine Option One4995 lbs
Weight - Engine Option Two4995 lbs
Tongue Weight - Engine Option One600 lbs
Tongue Weight - Engine Option Two600 lbs
ENGINE - OPTION ONE
Make and ModelDeutz D2.9L Tier 4 Final
Number of Cylinders4
Gross Horsepower (Maximum)74 hp
Torque (Max)181 ft-lb
Fuel Tank Capacity25 gal
Max Fuel Consumption4.6 gph
Fuel TypeDiesel
Air Cleaner2-stage dry with safety element
Oil FilterSpin-on
Recommended Oil10W30
Oil Volume with Filter8.4 qt
Maximum Angle of Continuous Operation30 deg
Cooling MediumLiquid
Coolant Capacity (Engine and Radiator)13.3 gal
Alternator95 Amp
Fan18.625" (47.3 cm) suction
Clutch TypeClutchless PTO
Clutch Drive EngagementBelt tensioner
ENGINE - OPTION TWO
Make and ModelDeutz TD2.9L Tier 4 Final
Number of Cylinders4
Gross Horsepower (Maximum)49 hp
Torque (Max)108 ft-lb
Fuel Tank Capacity25 gal
Max Fuel Consumption3 gph
Fuel TypeDiesel
Air Cleaner2-stage dry with safety element
Oil FilterSpin-on
Recommended Oil10W30
Oil Volume with Filter8.4 qt
Maximum Angle of Continuous Operation30 deg
Coolant Capacity (Engine and Radiator)2.9 gal
Cooling MediumLiquid
Alternator95 Amp
Fan15" (38.1 cm) suction
Clutch TypeClutchless PTO
Clutch Drive EngagementBelt tensioner
FEED SYSTEM
Feed Roller OrientationHorizontal
Number of Feed Rollers1
Feed Roller Clamp Load350 lbs
Feed Roller Minimum Distance to Drum1 in
Feed Roller Dimension20" x 17" (50.8 cm x 43.2 cm)
Number of Knives2
Weight of Feed Roller400 lbs
Number of Feed Roller Motors1
Motor Displacement28.3
Motor ManufacturerWhite
Feed Speed105 ft/min
Infeed Table Width52 in
Infeed Table Length32 in
Infeed Hopper Height12 in
Infeed Throat Capacity12" H x17" W (30.5 cm H x 43.2 cm W)
Pinch Point - Distance to End of Feed Table66.5 in
Distance from Feed Table to Ground26 in
Infeed Table Material Thickness.2 in
SAFETY SYSTEM
Bottom Feed Stop BarStandard
Bottom Feed Stop Bar Diameter2 in
Bottom Feed Stop Bar Material Thickness11 GA
Actuation Force (BFSB)34 lbs
Normal Sensitivity22 deg
Reduced Sensitivity12 deg
Reset MethodGreen hold-to-run button
Four Position Feed Control BarStandard
Positions4: E-stop, forward, neutral and reverse
Actuation Force34 lbs
Green Hold to Run ButtonStandard
DRUM/DISC CUTTING SYSTEM
Material Capacity12 in
Width20 in
Thickness.4 in
Diameter20 in
Speed2050 rpm
Weight With Shaft460 lbs
Safety Lock - Number of Positions2
Number of Knives2
Knife Thickness.6 in
MaterialA8 chipper steel
Useable Edges2
Knife Size0.63" x 4.5" x 9" (1.6 cm x 11.4 cm x 22.9 cm)
Number of Bolts/Knife4
Replaceable Threaded Knife BlockYes
Number of Paddles5
Fixture MethodWeld-on
Bedknife Size3.5" x 17.3" (8.9 cm x 43.8 cm)
Bedknife Thickness1 in
Bedknife Material1018
Bedknife - Number of Useable Edges4
CUTTER DRIVE COMPONENTS - ENGINE OPTION ONE
Number of Bearings2
Bore2.4 in
TypeSpherical rollers
ManufacturerLinkbelt
Dynamic Capacity31400 lbs
Static Capacity53500 lbs
Belt Idler/TensionerYes
Belt Type5V
DISCHARGE SYSTEM
Chute Height101 in
Chute Rotation Angle270 deg
Rotation TypeRotation handle with pin lock
Rotational LockYes
HYDRAULIC SYSTEM
Tank capacity7 gal
Recommended Oil TypeVermeer VMF
System TypeTandem center
Filtration Method10 micron return; 100 micron suction
Pump Flow at Maximum RPM2.7 gpm
System relief pressure2500 psi
Flow ControlNo
Directional ControlYes
Oil CoolerNo
ELECTRICAL SYSTEM
System Voltage12 Volt
BatteryGroup 31; 950 CCA
Standard GaugesMFD, hour
SwitchesFeed Stop Bar Sensitivity, Droop, Ecoldle
ControllerVermeer ACS
DisplayMultifunctional display (MFD)
Shutdown SystemYes
Radio Remote ControlNo
CHASSIS
Frame Description7" (17.78 cm) Z channel; 0.25" (0.64 cm) thickness
Tongue Description2.5" x 4.5" x .25" (6.4 cm x 11.4 cm x .6 cm)
Tongue ExtensionExtendable 24" (61 cm) @ 12" (30.5 cm) increments
Hitch TypePintle
Fender DescriptionBolt-on-steel
Axle/SuspensionTorsion
Type - Option OneRubber torsional
Manufacturer - Option OneDexter
Capacity - Option One5200 lb (2358.7 kg)
Tires - Option OneST235/80/R16 Load Range E
Wheels - Option One16" (40.6 cm)
Axle/Suspension - Option TwoTorsion
Type - Option TwoRubber torsional
Manufacturer - Option TwoDexter
Capacity - Option Two7000 lb (3175.2 kg)
Tires - Option TwoST235/80R16 Load Range E
Wheels - Option Two16" x 6" (40.6 cm x 15.2 cm)
Brake TypeStandard electric or optional hydraulic
Trailer Light TypeLED
OTHER OPTIONS
Special PaintOptional
Extended WarrantyOptional
Preventive MaintenanceOptional
