Robust performance

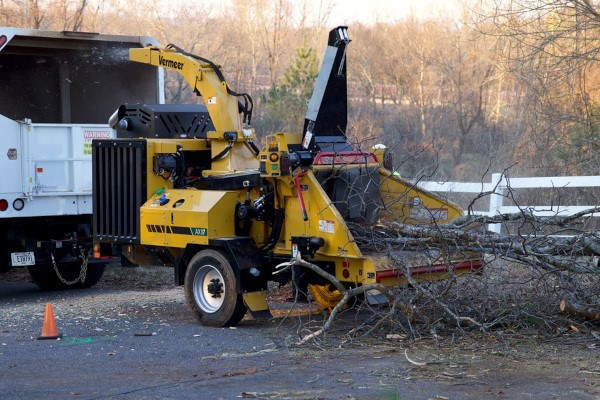

The AX17 delivers maximum pull-in force, making feeding of large-diameter logs and branchy limbs easier.
A fixed infeed table design and oversized infeed opening gives the operator optimal performance and durability when mechanically feeding.
Transport with ease
With a weight under 10,000 lb (4536 kg), there's no need to have a CDL certified driver to transport this machine.
Intelligent feeding
SmartFeed, a patented feed-sensing control system, boosts operator productivity and reduces engine strain by monitoring engine rpm and controlling feed rollers.
SmartCrush minimizes down pressure until the feed roller climbs onto the material, then increases pressure to push it to the cutter drum, allowing the operator to focus on the next load.
The EcoIdle™ engine control system reduces engine speed to a preset lower rpm after one to five minutes of inactivity, saving fuel and reducing jobsite noise.
Dual offset horizontal feed rollers lessen the need for the operator to manually control the machine when feeding large-diameter logs.
Jobsite efficiency
The patented winch boom design can be raised out of the way when mechanically feeding the machine.
The optional full-function remote allows machine operation from a loader to maximize productivity and minimize crew size.
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real time data to make smarter decisions, and help maximize productivity and profitability.
Safety
The patented bottom feed stop bar is strategically positioned so the operator can strike it to shut off the feed mechanism.
| GENERAL DIMENSIONS AND WEIGHTS | |
| Length - Feed Table Up, Tongue In | 210 in |
| Length - Table Down, Tongue Extended | 222 in |
| Width | 78.5 in |
| Height | 110.5 in |
| Weight (with winch, hydraulic jack and hydraulic chute) | 9750 lbs |
| Weight - Engine Option One | 8640 lbs |
| Tongue Weight - Engine Option One | 1380 lbs |
| Length with Winch (Additional) | 0 in |
| Weight With Winch (Additional) | 720 lbs |
| Sound Power | 116 dB(a) |
| ENGINE - OPTION ONE | |
| Make and Model | Cummins 3.8L T4 |
| Number of Cylinders | 4 |
| Gross Horsepower (Maximum) | 130 hp |
| Torque (Max) | 360 ft-lb |
| Fuel Tank Capacity | 40 gal |
| Max Fuel Consumption | 7 gph |
| Fuel Type | Diesel |
| Air Cleaner | 2-Stage Dry |
| Oil Filter | Spin On |
| Recommended Oil | API CJ-4 or ACEA-E9 |
| Oil Volume with Filter | 13.6 qt |
| Maximum Angle of Continuous Operation | 45 deg |
| Cooling Medium | Liquid |
| Coolant Capacity (Engine and Radiator) | 5.5 gal |
| Alternator | 60 amp |
| Fan | 22 in suction |
| Clutch Type | Spring-loaded clutch |
| Clutch Drive Engagement | Manual lever |
| FEED SYSTEM | |
| Feed Roller Orientation | Horizontal |
| Number of Feed Rollers | 2 |
| Feed Roller Clamp Load | 3000 lbs |
| Feed Roller Clamp Type | Hydraulic |
| Feed Roller Minimum Distance to Drum | .4 in |
| Feed Roller Dimension | 15 in x 20 in (38.1 cm x 50.8 cm) |
| Number of Knives | 9 |
| Weight of Feed Roller | 145 lbs |
| Feed Roller Dimension (Two) | 11 in x 20 in (27.9 cm x 50.8 cm) |
| Number of Knives (2) | 9 |
| Weight of Feed Roller (Option Two) | 105 lbs |
| Number of Feed Roller Motors | (3) 2 upper, 1 lower |
| Motor Displacement | 28.9 cu-in upper |
| Motor Manufacturer | Parker |
| Feed Speed | 95 ft/min |
| Infeed Table Width | 59.5 in |
| Infeed Table Length | 52 in |
| Infeed Hopper Height | 29 in |
| Infeed Throat Capacity | 19.5-in x 20.5-in (49.5-cm x 52.1-cm) |
| Distance from Feed Table to Ground | 30 in |
| Infeed Table Material Thickness | .3 in |
| SAFETY SYSTEM | |
| Bottom Feed Stop Bar | Standard |
| Bottom Feed Stop Bar Diameter | 2 in |
| Bottom Feed Stop Bar Material Thickness | .12 in |
| Actuation Force (BFSB) | 34 lbs |
| Reset Method | Green hold-to-run button |
| Four Position Feed Control Bar | Standard |
| Diameter | 2 in |
| Material Thickness | .1 in |
| Positions | Four positions: E-stop, Forward, Neutral, Reverse |
| Actuation Force | 34 lbs |
| Green Hold to Run Button | Standard |
| DRUM/DISC CUTTING SYSTEM | |
| Material Capacity | 17 in |
| Thickness | .5 in |
| Diameter | 26 in |
| Speed | 1800 rpm |
| Weight With Shaft | 855 lbs |
| Safety Lock - Number of Positions | 2 |
| Number of Knives | 2 |
| Knife Thickness | .8 in |
| MaterialA | A8 chipper steel |
| Useable Edges | 2 |
| Knife Size | 5 in x 10 in (12.7 cm x 25.4 cm) |
| Number of Bolts/Knife | 5 |
| Replaceable Threaded Knife Block | Yes |
| Number of Paddles | 12 |
| Fixture Method | Weld On |
| Bedknife Size | 3 in x 20.25 in (7.6 cm x 51.4 cm) |
| Bedknife Thickness | 1.3 in |
| Bedknife Material | 1018 |
| Bedknife - Number of Useable Edges | 2 |
| CUTTER DRIVE COMPONENTS - ENGINE OPTION ONE | |
| Number of Bearings | 2 |
| Bore | 2.9 in |
| Type | Spherical roller |
| Manufacturer | Linkbelt |
| Dynamic Capacity | 41800 lbs |
| Static Capacity | 71500 lbs |
| Belt Idler/Tensioner | Yes |
| Belt Type | 5V |
| CUTTER DRIVE COMPONENTS - ENGINE OPTION TWO | |
| Number of Bearings | 2 |
| Bore | 2.9 in |
| Type | Spherical roller |
| Manufacturer | Linkbelt |
| Dynamic Capacity | 41800 lbs |
| Static Capacity | 71500 lbs |
| Belt Idler/Tensioner | Yes |
| Belt Type | 5V |
| DISCHARGE SYSTEM | |
| Chute Height | 110.5 in |
| Bottom Thickness | .7 in |
| Top Thickness | .2 in |
| Side Wall Thickness | .1 in |
| Deflector Thickness | .1 in |
| Chute Rotation Angle | 270 deg |
| Rotation Type | Manual (hydraulic option) |
| Rotational Lock | Yes - self-locking worm gear |
| HYDRAULIC SYSTEM | |
| Tank capacity | 3 gal |
| Recommended Oil Type | HY PWR 68 |
| System Type | Tandem center |
| Filtration Method | 3 micron return, no suction |
| Pump Flow at Maximum RPM | 6 gpm |
| System relief pressure | 3000 psi |
| Auto Reverse PSI | 2800 psi |
| Flow Control | No |
| Directional Control | Yes |
| Oil Cooler | Yes |
| ELECTRICAL SYSTEM | |
| System Voltage | 12 volt |
| Battery | Group 31 - 950 CCA |
| Standard Gauges | MPC-12 |
| Switches | Hold-to-run, sensitivity selector, droop selector, EcoIdle™ engine control system, throttle, chute controls, remote enable, manual feed roller crush |
| Controller | MPC-12 |
| Display | MPC-12 |
| Shutdown System | Yes |
| Radio Remote Control | Two options |
| CHASSIS | |
| Frame Description | Z Channel: .25-in (.64-cm) thickness |
| Toolbox Description | Standard |
| Tongue Description | 3 in x 5 in x 38 in (7.6 cm x 12.7 cm x 96.5 cm) |
| Tongue Extension | Extendable, 12-in |
| Hitch Type | 3-in ID pintle |
| Fender Description | Bolt-on steel |
| Axle/Suspension | 10,000-lb torsion |
| Type - Option One | Rubber torsional |
| Manufacturer - Option One | Dexter |
| Capacity - Option One | 10,000 lb |
| Tires - Option One | 235/75R17.6 |
| Wheels - Option One | 17.5 x 6.75, bolt circle 8 on 6.6 |
| Brake Type | Standard electric |
| Trailer Light Type | LED |
| WINCH OPTION | |
| Winch Relief System | 1700 psi |
| Winch Boom Structure | .25 in (.64 cm), .19 in (.48 cm)( |
| Winch Input Speed | 48 rpm |
| Winch Controls | Forward, reverse and fee spool |
| Winch Rope | 7/16 in |
| Rope Length | 151 ft |
| Rope Line Pull | 2000 lbs |
| Rope Choker | Yes |
| OTHER OPTIONS | |
| Special Paint | Optional |
| Extended Warranty | Optional |
| Preventive Maintenance | Optional |
| Adjustable Height Discharge Chute | Optional |
| Remote Control | Optional |
| Hydraulic Outriggers | Optional |
| Hydraulic Chute Controls | Optional |
