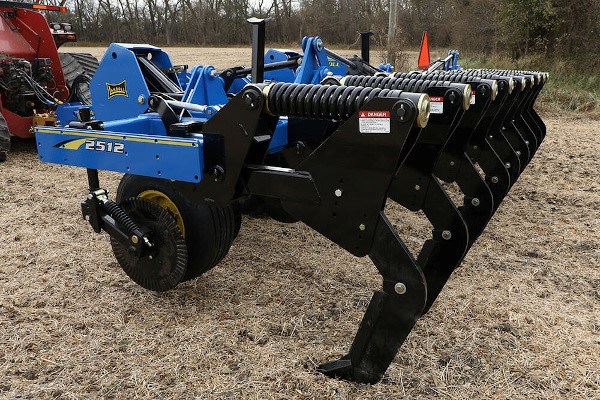

Rugged and Durable All tillage tools need to be built to handle the stress of the fast-paced industry of today. However, deep tillage machines with depth capacities well below the normal operating depths need to be especially tough. In many instances, these tools will be operating in profiles that have never been touched by a tillage tool before. The 2500 Series In-Row Ripper has what it takes.
  • Get a Quote Value Your Trade
  • Send to a Friend
  • Payment Calculator

    • Get information on the 2512F-9-30

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the 2512F-9-30

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on 2512F-9-30

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

2512F-9-30 Features & Benefits

Extra Tough Features For Deep Tillage

  • 6” x 6” Rear and 6″ x 4″ Front Frame Construction
  • Cat. II, III Narrow Three-Point Hitch for Narrow Non-Folding Models
  • Cat. III, IV Three-Point Hitch for Standard Non-Folding Models and Folding Models
  • Heavy-Duty Pull Hitch Caddy Included on Larger Folding Models
  • 40 ½” Under Frame Clearance
  • Maximum Working Depth of 20” on HD Hydraulic Auto-Reset Models and Rigid Shear Bolt Models; 16″ on Auto-Reset Spring Shank Models
  • Heavy-Duty Coulter Assemblies with 22” Smooth Blades
  • 600 lbs. of Down Pressure on Coulter Assemblies
  • Coulter Assemblies – 6” Trip Height
  • Turnbuckle Adjustable Gauge Wheels with 280/70R x 15 Radial Tires
  • Parking Stands
  • Powder Coat Paint
  • LED Warning Lights & SMV Emblem



Versatility & Reliability

  • Auto-Reset Spring, HD Hydraulic Auto-Reset or Rigid Shear Bolt Shank Assemblies
  • Choice of Straight Leg Shanks, Parabolic Shanks or Low Disturbance Shanks
  • Variety of Points and Wearstrips Available
  • 16” Trip Height on Auto-Reset Spring Shank Models with 2,300 lbs. of Point Load
  • 28″ Trip Height on Hydraulic Auto-Reset Shank Models with a Massive 4,000 lbs. of Point Load
  • Options Available for Coulter Assemblies

2512F-9-30 Specs & Compare

2500 Series In-Row Ripper Auto Reset Spring Shanks, Folding Units

Product Attributes 2512F-9-30
Approximate Weight 12,721 lbs. (5,770 kg)
Working Width 22 ft. 6 in. (6.9 m)
Transport Width 13 ft. 11 in. (4.2 m)
Frame Type Three-Point Hitch Folding
Frame Structure 6 in. x 6 in. x 0.5 in. (152 x 152 x 13 mm) Rear Frame 6 in. x 4 in. x 0.5 in. (152 x 102 x 13 mm) Front Frame
Frame Construction Laser Cut Components; Robotically Welded
Frame Extensions 2 ft. 0 in. (0.6 m) Wing
Coulter Assemblies Standard
Number of Coulters 9
Coulter Blade Diameter 22 in. (559 mm) Smooth Blade (Standard)
Coulter Protection Adjustable Spring Cushion
Coulter Down Pressure 600 lbs. (272 kg)
Coulter Trip Height 6 in. (152 mm)
22 in. Ripple Coulter Optional
22 in. Pyramid Coulter Optional
Number of Shanks 2-5-2
Shank Type Auto-Reset Spring Shank
Shank Leg Type* 1.25 in. x 5 in. x 36 in. (32.8 x 127 x 914 mm) Straight Leg Shank
1.25 in. x 4 in. x 36 in. (32.8 x 102 x 914 mm) Parabolic Shank
0.75 in. x 5 in. x 32 in. (19 x 127 x 813 mm) Low Disturbance Shank
Shank Spacing 30 in. (762 mm)
Maximum Shank Working Depth 16 in. (406 mm)
Shank Trip Height 16 in. (406 mm)
Point Load 2,300 lbs. (1,043 kg)
Under Frame Clearance 40.5 in. (1.0 m)
Points for Straight Leg Shanks 2 in. (50.8 mm) V-Shaped Cast C.A.D.I. Point (Standard)
Wearstrips for Straight Leg Shanks C.A.D.I. Reversible Wearstrip (Standard)
Points for Parabolic Shanks 2.375 in. (60.3 mm) V-Cap C.A.D.I. Point (Standard)
Shark Fin Point (Optional)
7 in. (178 mm) Wing Point (Optional)
Wearstrips for Parabolic Shanks C.A.D.I. Wearstrip (Standard)
Points for Low Disturbance Shanks 2 in. (50.8 mm) V-Shaped Cast Point (Standard)
Wearstrips for Low Disturbance Shanks 0.75 in. (19 mm) Wearstrip (Standard)
Gauge Wheels (4) Standard
Gauge Wheel Type Turnbuckle Adjustable
Gauge Wheel Hubs 6-Bolt
Gauge Wheel Tire Size HD 280/70R x 15
Three-Point Hitch Cat. III, IV
Pull-Hitch Caddy Optional
Pull-Hitch Caddy Tires (4) 385/65R x 22.5 Radial Tires
Pull-Hitch Caddy Hitch Cat. IV Ball Hitch
Coverboard Kit Optional
12 in. Offset Shank Mounts Optional
Rear Hitch Optional
Parking Stands Standard
Powder Coat Paint, Sapphire Blue Standard
LED Warning Lights & SMV Emblem Standard
Horsepower Requirements 40 HP and up (30 kW) Per Shank
Recommended Operating Speed 3 to 5 MPH (4.8 to 8.0 km/h)

 * Units are equipped with choice of Straight Leg Shanks, Parabolic Shanks or Low Disturbance Shanks. Points and Wearstrips listed above as Standard are included with each respective shank choice, unless Optional equipment is chosen.
Specifications subject to change with or without notice.



Hydraulic Auto-Reset Shanks, Folding Units PDF Specs

Rigid Shear Bolt Shanks, Folding Units PDF Specs
