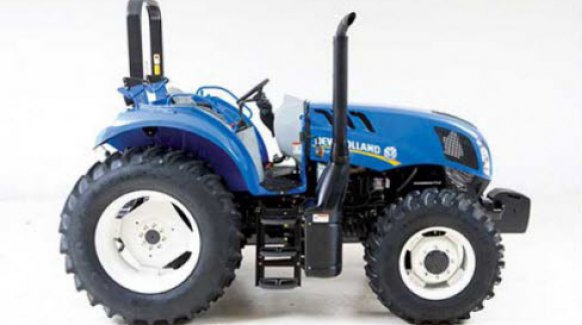

New Holland Ag Products TS6.120 High Clearance

Double tap to zoom



Features

ANYTHING BUT BASIC

TS6 tractors are Standard tractors are rugged, comfortable and flexible. The fact they are affordable is an added bonus.

MORE POWER AND TORQUE

Tier 4B engines provide more horsepower and torque than previous models while reducing emissions and fuel use.

REWARD YOURSELF WITH COMFORT

Both the VisionsView™ cab and open, flat-deck platform give you plenty of room and operating ease.

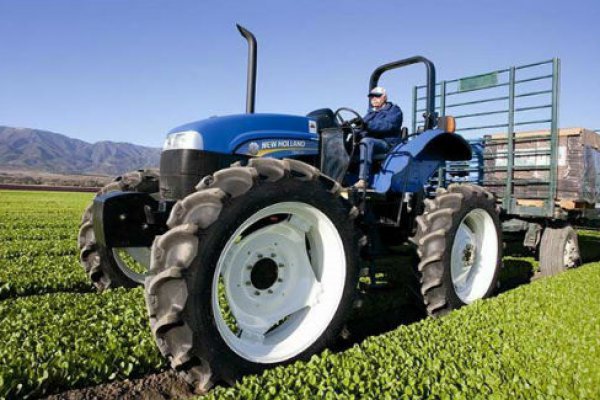

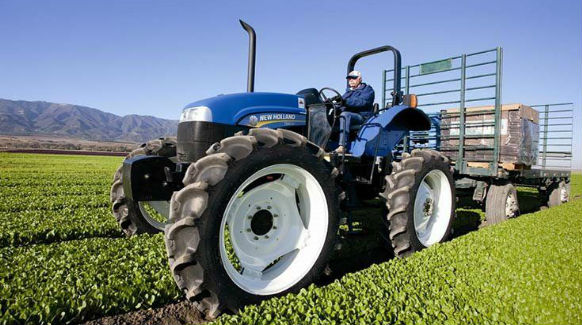

HIGH-CLEARANCE MODEL AVAILABLE

The TS6.120 High-Clearance tractor nimbly maneuvers down rows of vegetable and specialty crops.

Specifications

Model TS6.120
Engine
Engine type 4 cylinder, 16 valve, high pressure common rail, air-to-air intercooled turbo diesel
Engine Make / Model Fiat Powertrain Industrial / FPT NEF
Engine Displacement [cu in (L)] 274 (4.5)
Rated Engine Horsepower @ 2200 RPM 119
Rated PTO Horsepower 96
Emissions Certification Tier 4B/Final
Fuel Tank Capacity gal. (l) 57.5 (217.6)
DEF (AdBlue®) Tank Capacity gal. (l) 7.9 (30)
Electrical System
Alternator amps 120
Battery 12 volt w/950 CCA
Transmission
Base Transmission 8x8 synchronized hydraulic shuttle w/left hand shuttle
Optional Transmission 8x8 synchronized mechanical shuttle w/left hand shuttle
Premium Transmission -
Creeper Option 10:1 gear ratio
Rear PTO & 3-Point Hitch
PTO (rpm) 540/1000
3-Point Hitch Category II w/flex link ends
Base 3-Point Hitch ASAE Lift Capacity [lbs (kg)] 3735 (1693)
Option 3-pt. ASAE Lift Capacity [lbs (kg)] 5499 (2499
Option 2 3-pt. ASAE Lift Capacity [lbs (kg)] 7326 (3323)
Hydraulic System
System Type Fixed displacement pumps (steering, implement, aux) with combining/diverter valve
Hydraulic Implement Pump Flow [gpm (l/m)] 13 (49)
Optional Auxiliary Hydraulic Pump [gpm (l/m)] 9 (34)
Rear hydraulic remote valves* Deluxe closed center with flow control and quick connect couplers
Axles
Front 4WD adjustable tread width in. (mm) -
Front std. 2WD adjustable tread width in. (mm) -
Front HD 2WD adjustable tread width in. (mm) -
Rear flange axle adjustable tread width in. (mm) -
Rear bar axle adjustable tread width in. (mm) -
Rear axle type External drop box final drive with internal wet brakes
Front 4WD adjustable tread width in. (mm) 72 (1829) to 84 (2134)
Rear 4WD adjustable tread width in. (mm) 72 (1829) to 100 (2540)
Ground clearance** (lowest part of front axle) in. (mm) 25.25 (616)
Weight
Weight (shipping, 4WD, cab, flange axle) lbs. (kg) 11,883 (5390)
Weight (shipping, 4WD, cab, bar axle) lbs. (kg) -
Weight (shipping, 2WD, cab) lbs. (kg) -
Weight (shipping, 4WD, ROPS, flange axle) lbs. (kg) 10,957 (4970)
Weight (shipping, 4WD, ROPS, bar axle) lbs. (kg) -
Max. tractor weight (G.V.W.), Cab, 4WD lbs. (kg) 17,196 (7800)
Dimensions**
Wheel base 4WD (Std. Duty Class 3) in. (mm) 107.5 (2730)
Wheel base 4WD (HD Class 3) in. (mm) -
Wheel base 2WD standard duty (6 bolt hub) in. (mm) -
Wheel base 2WD heavy duty (8 bolt hub) in. (mm) -
Overall length 4WD w/ front weights in. (mm) 192.9 (4900)
Overall length 2WD w/ front weights in. (mm) -
Height to top of cab in. (mm) 121.9 (3095)
Height to top of ROPS in. (mm) 128.9 (3275)
Height to top of exhaust in. (mm) 121.4 (3085)
Available Offering Configurations
Available Offering Configurations -
