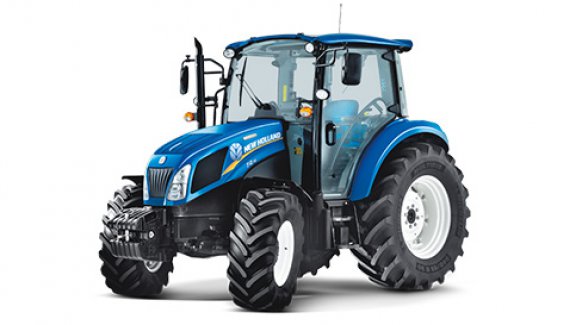

RELIABLE, FUEL-EFFICIENT POWER The new PowerStar now has more power than ever, boasting a 207 cubic-inch, 3.4 liter engine producing 50 or 65 PTO horsepower. Coupled with four-cylinders and turbo charged, these diesel engines rise to the challenging conditions with smooth lugging power. You get the power you need for field PTO work, tough roadside mowing or heavy loader work.
POWER THE IMPLEMENTS OF YOUR CHOICE Name the task, and PowerStar Series tractors have the hydraulic capacity to tackle it.
SMOOTH SHIFTING AND SHUTTLING* New Holland offers a wide selection of transmission choices, so you can equip your PowerStar tractor to suit your operation. • 8 x 8 Synchro shuttle transmission gives you two ranges with four synchronized gears in each range. • 12 x 12 Synchro shuttle transmission provides three ranges with four synchronized gears in each range • Regardless of transmission choice a left-handed shuttle is included. * Not available on T4.65
BEST-IN-CLASS COMFORT Whether you choose a PowerStar model with a spacious, flat-deck ROPS platform or factory-installed, all-weather cab, you get best-in-class visibility, comfort and operating ease. When you take your seat, there is no doubt that PowerStar tractors were designed with the operator in mind.
A PERFECT MATCH New Holland engineers designed the heavy-duty 655TL factory-installed loader expressly for PowerStar tractors. It works as the perfect extension of your PowerStar tractor.
2WD OR FWD AVAILABLE The PowerStar tractor model T4.75 is available with a 2WD HD or 4WD axle. The 2WD Heavy-duty and 4WD axles adjust to adapt to a wide variety of applications.
EASY MAINTENANCE PowerStar tractors make it easy to keep up with maintenance duties with convenient, ground-level service points.
CUSTOMIZE YOUR POWERSTAR™ TRACTOR Choose from a selection of optional equipment and dealer-installed accessories to make a PowerStar tractor truly your own.
|Make / Model||F5C|
|Displacement, cu. in. (L)||207 (3.4)|
|Rated Speed (RPM)||2,300|
|Gross engine HP||64|
|Emission legislation||US EPA Tier 4B|
|Cold Start||Grid Heater|
|Standard||12x12 hydraulic shuttle|
|Base equipment PTO speed||540 @ 1,958 engine RPM|
|Optional PTO speed (540E)||540 @ 1,592 engine RPM|
|Draft Sensing||Top link|
|ASAE lift capacity @ 24" lbs. (kg)||3,664 (1662)|
|System type||Open center|
|Mechanical Shuttle Transmission: Implement pump flow GPM (l/min)||-|
|Mechanical Shuttle Transmission: Steering & services pump flow GPM (l/min)||-|
|Power Shuttle Transmission: Implement pump flow GPM (l/ min)||12.5 (47.5)|
|Power Shuttle Transmission: Steering & services pump flow, GPM (l/ min)||9.5 (36)|
|Remotes||Up to 3|
|Wheelbase (2WD) in. (mm)||-|
|Wheelbase (4WD), in. (mm)||83.9 (2132)|
|Overall length in. (mm)||151 (3836)|
|ROPS height (folded) in. (mm)||-|
|Cab height in. (mm)||94.8 to 97.8 (2409 to 2484)|
|ROPS (2wd) lbs. (kg)||-|
|ROPS (4wd) lbs. (kg)||-|
|Cab (2wd) lbs. (kg)||-|
|Cab (4wd) lbs. (kg)||6,239 (2830)|
