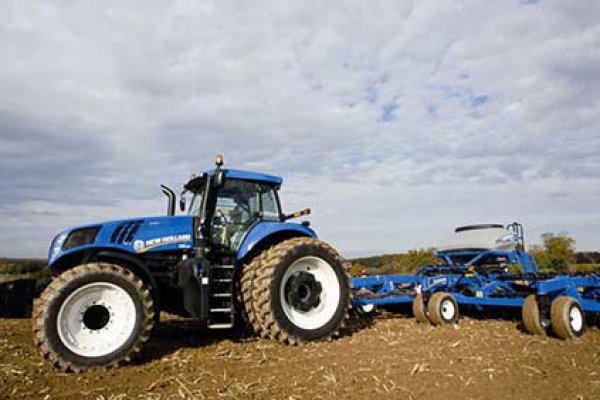

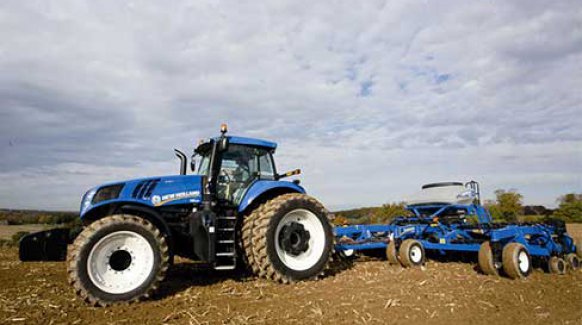

New Holland Ag Products Genesis T8.350

Double tap to zoom



Features

MORE POWER AND PRODUCTIVITY

GENESIS T8 Series tractors are the most powerful conventional tractors in the world.



ABSOLUTE DRIVING PLEASURE

New Holland's award-winning SideWinder™ II armrest makes the GENESIS T8 Series intuitive to operate.



MAXIMUM VERSATILITY

The GENESIS T8 wheelbase is the longest in the industry for a smooth, stable ride, yet the sculpted frame design makes these tractors the most maneuverable in this class.



LOWER OPERATING COST

Operating costs for the GENESIS T8 tractors with ECOBlue HI-eSCR technology have been maintained when compared to T8 Tier 4A tractors.



Specifications

GENESIS® T8.350
Engine* FPT Cursor 9
No. of cylinders / Aspiration / Valves / Emission level 6 / eVGT /24 / Tier 4B
ECOBlue™ SCR HI-eSCR system (selective Catalytic Reduction) Standard
Fuel System - high pressure common rail Standard
Displacement cubic in. (L) 531 (8.7)
Max. EPM horsepower** - ISO - ECE R120, 1800 rpm kW/hp (CV) 258/351
Max. horsepower - ISO - ECE R120, 1800 rpm kW/hp (CV) 323/315
Rated EPM horsepower - ISO - ECE R120, 2000 rpm kW/hp (CV) 232/315
Rated horsepower - ISO - ECE R120, 2000 rpm kW/hp (CV) 206/280
PTO HP (SAE) kW/hp (CV) 175/235
Viscous coupled cooling fan Standard
Diesel capacity Auto Command CVT (full to drained) gal. (L) 163 (617)
Diesel capacity Ultra Command FPS (full to drained) gal. (L) 179 (678)
DEF/AdBlue® tank capacity (full to drained) gal. (L) 26 (99)
Service Interval hours 600
Ultra Command™ Full-Powershift transmission
18 x 4 Ultra Command™ Full-Powershift (40 kph) Standard
19 x 4 Ultra Command™ Full-Powershift (40 kph ECO or 50 kph) Optional
23 x 6 Ultra Command™ Full-Powershift (40kph with Creeper) Optional
Auto Command™ Continuously Variable Transmission (CVT)
Auto Command™ Continuously Variable Transmission (CVT) Optional
Auto Command™ Continuously Variable Transmission (40kph) Standard
Auto Command™ Continuously Variable Transmission (50kph) - Optional
Electrical
12 volt alternator amps 200
Batteries 2-12V
Axles
Rear axle dimension standard/optional in. (mm) 4/4.5 (102/114)
Rear axle length in. (mm) 120 (3050)
Terraglide™ front axle suspension Optional
MFD tread adjustability in. (mm) 60-88 (1524-2235)
Track Spacing (center to center) in. (mm) Not available
Hydraulics
System type Pressure-flow compensating (PFC)
Standard pump flow gpm (Lpm) 44 (166)
MegaFlow™ option gpm (Lpm) 75 (282)
Remote Valves
Type Electro Hydraulic
Remotes - Electro-hydraulic STD (opt 4 (5/6)
Linkage
Rear linkage category lbs. (kg) Cat III/IIIN
Cat III/IIIN Lift capacity 43"links/38" links, 4" rear axle lbs. (kg) 12,900 (5851) / 14,900 (6758)
Cat III/IIIN Lift capacity 43"links/38" links, 4.5" rear axle lbs. (kg) 15,900 (7212) - 19,500 (8119)
Cat IVN/III Lift capacity 43"links/38" links, 4.5" rear axle lbs. (kg) 17,500 (7938) / 19,500 (8845)
Cat HD IVN/III, 5" rear axle lbs. (kg) NA
Front linkage lift capacity (610 mm in front of ball ends) 12,800 (5810)
PTO
Front PTO/ 3-point hitch lbs. (kg) Optional
Front hitch lift capacity 12,800 (5810)
Front PTO and shaft size 1000 rpm, 1 3/8", 21 spine
Cab
Comfort Ride™ cab suspension Optional
IntelliSteer® guidance complete Standard
Cab sound level dBA 68
Volume-size cu. ft. (cu. m) 109.5 (3.1)
Glass sq. ft. (m sq.) 68.5 (6.4)
Estimated average standard weight***
Estimated average standard weight*** lbs. (kg) 22,377 (10,150)
Max Ballasting
Max Ballasting lbs. (kg) 31,791 (14,420)
