HANDLE BIGGER LOADS AND MOVE ‘EM FASTER

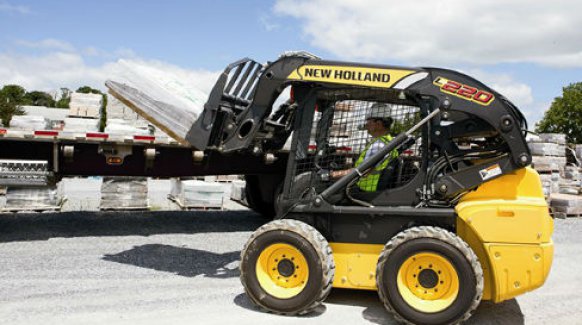

No matter what your line of work — landscaping, farming or construction — you’ll complete your jobs more effectively with a New Holland 200 Series skid steer loader. It’s the skid steer you would want on the job — one that’s durable, reliable and productive.
Excellent dump height and reach
The patented New Holland Super Boom® vertical lift linkage delivers maximum reach at maximum height, allowing you to precisely place loads in the center of trucks.
Rock solid stability
A smooth, stable ride results from a new, longer wheelbase, low center of gravity and correct frontto- rear weight distribution.
Better visibility allows you to work more confidently and quickly to improve your overall efficiency. A lower door threshold allows for better sightlines to the bucket cutting edge and to the trench, and the see-through area on the cab roof provides a clear view to the bucket at full height. Rear visibility is among the best in the industry due to a large window, low engine hood and no rear frame towers.
Service made easy
Long service intervals mean New Holland skid steers spend less time in the shop. The swingout rear door and hood provide easy access to maintenance checkpoints. You can access engine oil, fuel fill, hydraulic oil, coolant and radiator points without tools.
The entire cab and boom lift assembly tilts forward for unrivaled access to components and easy cab cleanout.
The wide cab offers superior operator comfort and visibility to critical areas, allowing operators to work with a new level of confidence and speed.
|Manufacturer/model||ISM / N844LTA|
|Bore/stroke, in (mm)||3.31 x 3.94 (84 x 100)|
|Displacement, in3 (L)||135 (2.2)|
|Fuel injection||HPCR Direct|
|Air intake||Turbocharged Aftercooled with external EGR|
|Horsepower per SAE J1349 Gross hp (kW)||67 (50) @ 2800 rpm|
|Horsepower per SAE J1349 Net hp (kW)||64 (47.7) @ 2800 rpm|
|Peak torque, lb-ft (Nm)||153 (208) @ 1800 rpm|
|Travel speed, low range, mph (km/h)||7.8 (12.5)|
|Travel speed, high range (optional), mph (km/h)||11.4 (18.3)|
|Bucket hinge pin, in (mm)||121 (3073)|
|Top of ROPS, in (mm)||78.7 (1998)|
|Bottom of level bucket, fully raised, in (mm)||114.3 (2902)|
|Overall length without attachment with coupler, in (mm)||105.7 (2697)|
|Dump angle, degrees||52|
|Dump reach (max height), in (mm)||29.8 (758)|
|Rollback, bucket on ground, degrees||34|
|Rollback, bucket at full height, degrees||88|
|Wheelbase, in (mm)||44.4 (1128)|
|Ground clearance (bottom of belly pan), in (mm)||8 (203)|
|Angle of departure, degrees||25|
|Clearance circle without bucket, in (mm)||50.7 (1289)|
|Clearance circle rear, in (mm)||62.9 (1599)|
|Rear axle to bumper, in (mm)||36.4 (924)|
|Overall width, in (mm)||69.1 (1755)|
|Pump flow, Standard Flow, gpm (Lpm)||20.6 (78)|
|Relief pressure, psi (bar)||3046 (210)|
|Optional high flow, gpm (Lpm)||30.7 (116.2)|
