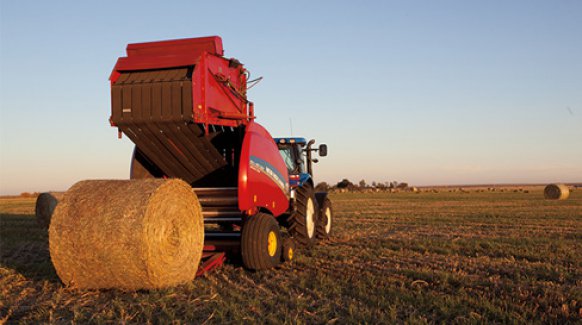

New Holland Ag Products Roll-Belt 550

Double tap to zoom



Features

EASY OWNERSHIP

Roll-Belt™ 450, 460, 550, and 560 balers possess the newest design enhancements and smartest technology to ensure that they remain in the field.

STOP THE SQUAT

From the moment the pickup tines touch the windrow, Roll-Belt balers pick up all of your valuable crop.

BALE LIKE NEVER BEFORE

Numerous options on Roll-Belt round balers are available to provide you with peace of mind and simplify your baling experience.

HIGHER DENSITY + MORE CAPACITY = REDUCED STORAGE LOSSES

The industry’s densest bales combined with EdgeWrap™ net wrapping yields weather-resistant bales that reduce storage losses.

Roll-Belt™ Design

A DESIGN PACKED WITH INNOVATION YIELDS BALES PACKED WITH HAY

The key to quickly forming perfect cores in any crop condition is New Holland’s proven combination of rolls and belts. The design of Roll-Belt balers utilizes heavy-duty steel rolls in both the front of the baler as well as in the floor of the bale chamber. The rolls are combined with short, tough belts in the back to deliver fast, consistent core formation and tight, uniform bales regardless of the crop you’re baling. This proven combination also forms the densest bales in the industry. By packing more of your valuable crop into each bale, you save time and money in numerous different ways.

WHY DOES DENSITY MATTER?

From the moment you start baling to the moment the last bale is unloaded at your storage location, there are numerous benefits to making dense bales are many. Making fewer but denser bales in the field:
• Reduces ground compaction and plant damage, which promotes faster regrowth and higher tonnages for the next cutting.
• Reduces your baling time, and handling, wrapping, and transportation costs.
• Improves bale weathering and reduces loss because a dense bale sheds precipitation and resists absorbing moisture from the ground.
Density always matters.

HOW THE ROLL-BELT™ DESIGN WORKS

1) To start the process of making a bale, the pickup gathers crop from the ground. The floor roll feeds crop from the pickup into the belts. The floor roll also carries the majority of the bale’s weight, which reduces stress on the belts and lacings for longer life and lower maintenance costs. Constant action between the floor roll and the bale provides superior feeding compared to designs that feed directly from the pickup into the bale. Additionally, when a bale is being formed, its center of gravity is behind the centerline of the floor roll to allow bales to naturally fall out of the chamber when ejected, unlike competitive designs.
2) Next, the starter roll helps turn the crop and start the core. The ribs of the fixed roll aid in keeping the bale rotating. This roll also transmits power to the remaining upper rolls: the pivot roll, the ribbed stripper roll, and the follower roll. The function of the three rolls is to assist in rolling material and forming the bale’s core. The stripper roll is also ribbed to strip material off the apron belts and direct it back into the bale.
3) As the bale grows, the top rolls pivot forward. The belt tension arm (I) also rotates to allow the bale chamber to expand. The belt tension cylinder (J) and belt tension spring (K) deliver reduced belt tension at the start to ensure positive core formation, even when baling short, dry crop.
4) When the bale reaches full size, the tractor is stopped by the operator. The wrapping mechanism starts automatically.

Specifications

Roll-Belt™ 550
Bale Size
Diameter, in. (cm) 36-60 (91.5-152)
Width, in. (cm) 61.5 (156)
Weight, lbs. (kg) 500-2,000 (227-998)
Density Pressure, psi (kPa) Adjustable
Baler Dimensions and Weights
Overall length, tailgate closed, in. (cm) 188.6 (479)
Overall height, tailgate closed, in. (cm) 105 (266)
Shipping weight*, lbs. (kg) 5,967 (2707) *CropCutter with 21.5L tires
Bale Forming Chamber
Floor roll (ActiveSweep) in. (cm) N/A
Floor roll (Rotor), in. (cm) N/A
Floor roll (SuperSweep), in. (cm) 12 (30.5)
Forming rolls, in. (cm) 2 rolls, 10 (25)
Stripper roll, in. (cm) 10 (25.4)
Starter roll, in. (cm) 7 (17)
Bottom tailgate idler roll, in. (cm) 5.5 (14)
Belts
Number of belts 8
Belt width, in. (cm) 7 (18)
Belt length, in. (cm) 343 (871)
Surface type (dependent on belt type) Mini Rough Top
Endless belts N/A
Wrapping System
Twine application Dual twine arms
Twine control Automatic, electric
Twine box 6 active balls
Additional twine storage 4 balls (2 per side)
Net Wrap EdgeWrap™ net wrap system, 3 roll capacity
Bale Forming Indicators
Standard Indicators Bale size, left/right driving gauges, twine movement, twine arm position, bale counter,
  bale ejector, hydraulic pressure gauge, tailgate latch
Tire Options
Implement tires 31 x 13.5-15 10 PR
Low profile flotation tires 18L x 16.1, 10PR
High profile flotation tires N/A
Tractor Requirements
PTO HP (minimum), hp. (kW) 80 (60)
PTO speed, rpm 540 or 1,000
Driveline protection Slip clutch
Hydraulic remote requirement 1 or 2
PICKUP SPECIFICATIONS - SuperSweep™ Pickups
Overall width, in. (cm) 88 (224)
Width, tine-to-tine, in. (cm) m 60 (152) 1.5
Width, flare-to-flare, in. (cm) 68 (174)
Tine spacing, in. (cm) 2.6 (7)
Tine bars 6
Number of tines 144
Reel diameter, in. (cm) 16 (41)
Pickup protection Multi-plate slip clutch
PICKUP SPECIFICATIONS - ActiveSweep™ (Standard-Duty) Pickups
Overall width, in. (cm) N/A
Width, tine-to-tine, in. (cm) m N/A
Width, flare-to-flare, in. (cm) N/A
Tine spacing, in. (cm) N/A
Tine bars N/A
Number of tines N/A
Reel diameter, in. (cm) N/A
Pickup protection N/A
PICKUP SPECIFICATIONS - ActiveSweep™ (Heavy-Duty) Pickups
Overall width, in. (cm) N/A
Width, tine-to-tine, in. (cm) m N/A
Width, flare-to-flare, in. (cm) N/A
Tine spacing, in. (cm) N/A
Tine bars N/A
Number of tines N/A
Reel diameter, in. (cm) N/A
Pickup protection N/A
PICKUP SPECIFICATIONS - SuperFeed™ Pickup
Overall width, in. (cm) N/A
Width, tine-to-tine, in. (cm) N/A
Width, flare-to-flare, in. (cm) N/A
Tine spacing, in. (cm) N/A
Tine bars N/A
Number of tines N/A
Reel diameter, in. (cm) N/A
Pickup protection N/A
PICKUP SPECIFICATIONS - CropCutter® Pickup
Overall width, in. (cm) N/A
Width, tine-to-tine, in. (cm) N/A
Width, flare-to-flare, in. (cm) N/A
Tine spacing, in. (cm) N/A
Tine bars N/A
Number of tines N/A
Reel diameter, in. (cm) N/A
Pickup protection N/A
