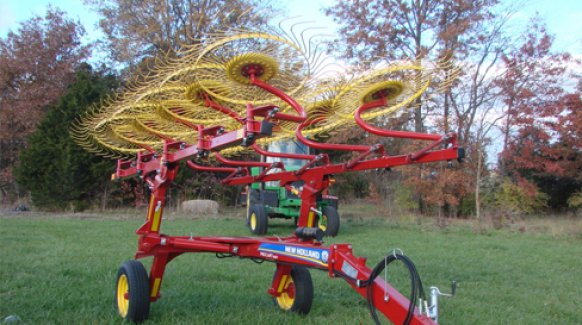

New Holland Ag Products 1022 10-Wheel

Double tap to zoom



Features

DEPENDABLE, HIGH-SPEED RAKING

Individual floating rake wheels provide cleaner raking and help form more uniform windrows that are easier to bale.

DURABLE, COMPACT DESIGN

The well-built frame provides the strength and reliability you need, and it’s compact and stable so you can move fast between farm and field.

HIGH FRAME CLEARANCE

Unlike other carted wheel rakes on the market, ProCart™ rakes offers a high frame clearance to accommodate high-volume crops.

A CHOICE OF MODELS

With raking widths from 18 to 28 feet, and a choice of five different models, there’s one perfect for you.

RAKE WHEELS

CLEANER RAKING WITH INDEPENDENT RAKE WHEEL FLOTATION

Individual floating rake wheels follow ground contours independently to gather every bit of the swath to cause less stubble damage compared to rakes with tandem-mounted rake wheels. Suspended by an adjustable compression spring, each rake wheel can be adjusted to your crop and field conditions for the cleanest possible raking.

FLIP-UP FRONT RAKE WHEELS

(1022/1225/1428 Plus)

You can raise the leading rake wheel on each beam and lock it out of the work position to adapt to changing crop conditions. When working in heavy crops like first cuttings, raise the front rake wheel, or for lighter, late-season cuttings, lower the front rake wheel into raking position. This added flexibility allows you to produce the ideal windrow size for your baler or harvester, no matter the season or crop conditions.

Specifications

1022 10-Wheel
Finger Wheels
Number of finger wheels 10
Finger wheel diameter, in (m) 55 (1.4)
Teeth per wheel (#) 40
Dimensions
Overall length*, ft (m) 19' (5.8)
Minimum transport height, ft (m) 7'9" (2.4)
Transport width, ft (m) 8' 5" (2.6)
Tread width outside of tirePs, ft (m) 5' 10" (1.77)
Minimum working width*, ft (m) 19' (5.8)
Maximum working width*, ft (m) 21' (6.4)
Minimum windrow width*, ft (m) 3' (0.9)
Maximum windrow width*, ft (m) 6' 7" (2)
Weight, lbs (kg) 1875 (850)
Tires 205 - 75/15
Tractor requirement, hp (kW) 30 (22.3)
Tractor requirement, hydraulic 1 DA
