PROROTOR™ 3114 SIDE-DELIVERY RAKE

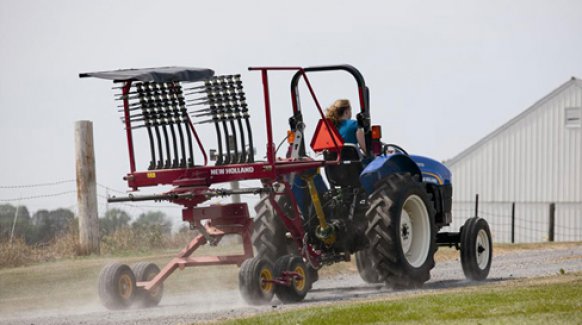

For the traditional haymaker, the ProRotor 3114 rotary rake offers a large, 11 ft. diameter rotor, perfectly suited to today’s most common nine and ten foot mowers and mower-conditioners. The single-rotor design allows you to rake individual windrows, or double them up in two passes for the most efficient baling and harvesting possible. Drawbar trailed with a low power requirement hooks up quickly and works efficiently with tractors having as little as 20 PTO hp. For frequent travel on narrow rural roads, tine arms remove quickly and store away in storage rack. The compact folding also means this rake stores way easily taking up less valuable shed space.

Specifications

ProRotor.3114
Finish
Paint Powder Paint
Cutting Width/Discharge
Crop Delivery Left Side
DIN Width - Sing Swath or Min (m/ft) 4.2/13.8
DIN Width - Double Swath or Max (m/ft) -
Dimensions
Length (m/ft) -
Transport Length (m/ft) 3.9/12.8
Width (m/ft) -
Transport Width (m/ft) 2/6.6
Transport Height w/ arms removed (m/ft) -
Height (m/ft) -
Capacity (hph/aph) 4.6/11.4
Weight (kg/lb) 570/1257
Rotor Diameter (m/ft) 3.4/11
Clean Swept Working Width (not noted on supplied tables) (m/ft) 3/9.8
Cam Track Diameter (mm/in) 260/10.2
Minimum Tractor Requirement
Power Requirement (kw/hp) 15/20
PTO Speed 540
PTO Type Double Wide Angle CV
Overrunning Clutch NA
Protection Radial Pin Clutch
Tractor Attachment
Hitch Drawbar
Special Hitch Pin Standard
Operational
Rotor Articulation System NA
Num. Rotors 1
Num. Arms / Rotor 11
Num. Tines / Arm 4
Tine Arm Diameter (mm/in) 35/1.4
Tine Arm Attachment to Gearbox 2 bolts
Tine Arm Removal for Transport/Storage Lynch pin
Tine Diameter (mm/in) 9/0.4
Front Swath Board Standard
Rear Swath Board NA
Swath Board Adjustment/Folding Mechanical
Height Adjustment Hyd Lift/Mech Stop
Rotor Headland Clearance (mm/in) 500/19.7
Removable Tine arms/ Folding Guards Standard
Undercarriage Tires/Wheels 18.5x8.5-8 PR6
Axle Tandem
Hyd. Requirements 1 Single Acting
Chassis Tires/Wheels NA
Rear Wheel Steering NA
Max. Turning Angle NA
Safety
Transport Lighting Dealer-Installed Option
Transport Safety Chain/Hitch Check Chains Transport Safety Chain
SMV Emblem NR
Electrical/Lighting
Transport Lighting Requirement -
Electrical Requirements NA
Operating Speed
Operational Speed 8-14 k/h / 5-8.5 mph
