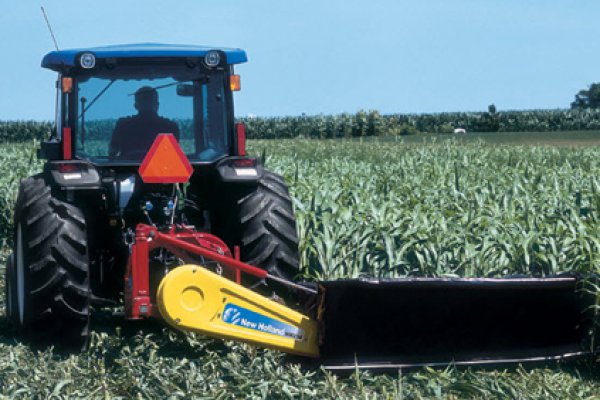

New Holland Ag Products HM236 Mounted (PRIOR MODEL)

Double tap to zoom



Features

DISC MOWERS THAT SPEED THROUGH TOUGH CUTTING
Designed to breeze through the toughest conditions — wet grasses or fire ant hills — New Holland disc mowers provide nonstop, trouble-free cutting. Choose from heavy-duty models, economy models and a pull-type version. Available in cutting widths from 5.5 to over 10 feet, you’ll find the machine to match any cutting job and fit any budget.

Specifications

Model HM236 Mounted
Cutter Bar
Cutting width, ft. in. (mm) 7' 11" (2413)
Cutting height, in. (mm) 0.63-2.36 (16-60)
Cutter bar tilt angle, degrees 2 to -8
Cutter bar operating range, degrees +18 to -30
Breakaway angle, degrees 21
Cutter bar floatation -
Type cutterbar Enclosed gear drive
Number of discs 6
Knives per disc 2
Disc cutting diameter, in. (mm) 20.47 (520)
Disc drive Spur gear drive in common sump
Disc speed, RPM 3,154
Cutter bar gear protection No
Swath width, approx standard, in. (mm) 79 (2007) includes std. RH swath wheel
Swath width with optional swathboards, in. (m) 67" (1702) w/LH swath wheel
Dimensions and Weight
Overall width, in. (mm) 178.35 (4530)
Overall length, in. (mm) 54.33 (1380)
Height - transport position*, in. (mm) 122.44 (3110)
Weight, Shipping lb. (kg) 1215 (551)
Weight, Operating lb. (kg) 1077 (489)
Maximum transport speed NA
Tires/wheels NA
Driveline
Minimum PTO horsepower required, hp (kW) 50 (37.3)
Input speed, RPM 540
PTO shaft spline/size required 6-spline/ 1 3/8"
Driveline protection Belt drive to cutter bar
Overrunning clutch Standard
Belt tension Adjustable drawbolt
Hydraulics and Hitch
Hydraulic circuits required One remote
Minimum relief pressure required, psi (bar) 2,320 (160)
Hitch Category II
