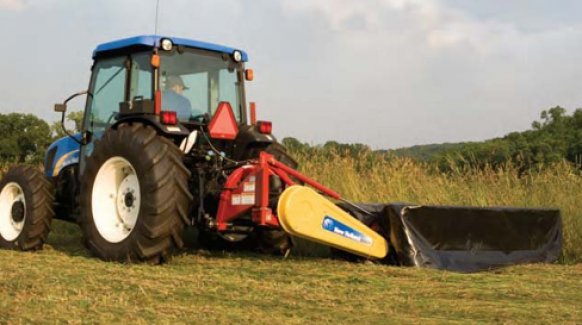

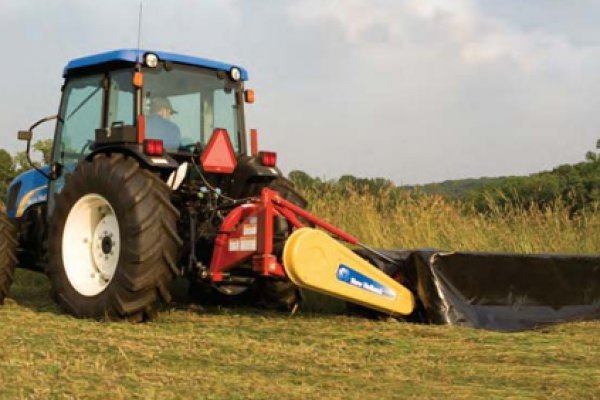

New Holland Ag Products HM234 Mounted (PRIOR MODEL)

Double tap to zoom



Features

DISC MOWERS THAT SPEED THROUGH TOUGH CUTTING
Designed to breeze through the toughest conditions — wet grasses or fire ant hills — New Holland disc mowers provide nonstop, trouble-free cutting. Choose from heavy-duty models, economy models and a pull-type version. Available in cutting widths from 5.5 to over 10 feet, you’ll find the machine to match any cutting job and fit any budget.

Specifications

Model

HM234 Mounted

Cutter Bar



Cutting width, ft. in. (mm)

5' 6" (1676)

Cutting height, in. (mm)

0.63-2.36 (16-60)

Cutter bar tilt angle, degrees

0 to -8

Cutter bar operating range, degrees

+18 to -30

Breakaway angle, degrees

21

Cutter bar floatation

-

Type cutterbar

Enclosed gear drive

Number of discs

4

Knives per disc

2

Disc cutting diameter, in. (mm)

20.47 (520)

Disc drive

Spur gear drive in common sump

Disc speed, RPM

3,154

Cutter bar gear protection

No

Swath width, approx standard, in. (mm)

50 (1270) includes std. RH swath wheel

Swath width with optional swathboards, in. (m)

38" (965) w/LH swath wheel
Dimensions and Weight

Overall width, in. (mm)

134.25 (3410)

Overall length, in. (mm)

54.33 (1380)

Height - transport position*, in. (mm)

92.52 (2350)

Weight, Shipping lb. (kg)

933 (423)

Weight, Operating lb. (kg)

822 (373)

Maximum transport speed

NA

Tires/wheels

NA
Driveline

Minimum PTO horsepower required, hp (kW)

35 (26.1)

Input speed, RPM

540

PTO shaft spline/size required

6-spline/ 1 3/8"

Driveline protection

Belt drive to cutter bar

Overrunning clutch



Belt tension

Adjustable drawbolt
Hydraulics and Hitch

Hydraulic circuits required

One remote

Minimum relief pressure required, psi (bar)

2,320 (160)

Hitch

Category I or II
