A NEW LEVEL OF DISC MOWER PRODUCTIVITY.

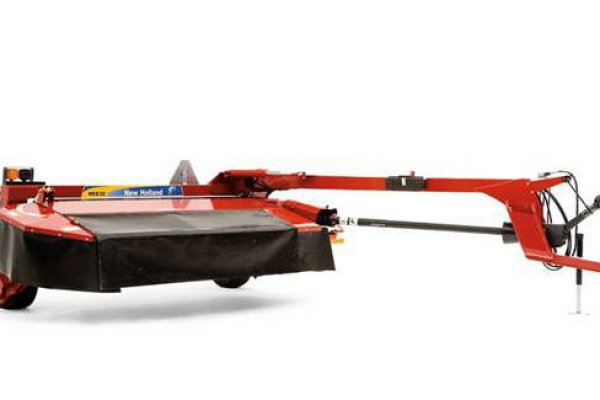

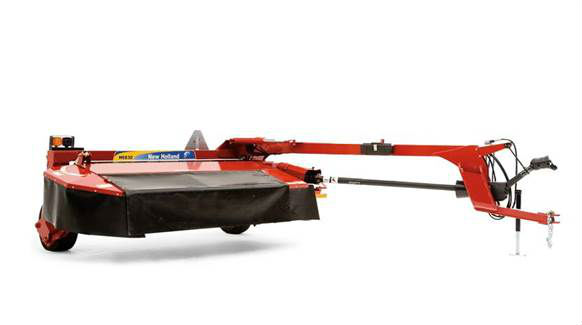

The eight-disc heavy-duty H6830 pull-type disc mower combines the benefits of a wide 10-foot, four-inch cut with easy hookup and a low horsepower requirement.
The H6830 header is suspended from the main frame of the machine. Large flotation springs allow the header to float both vertically and laterally for even cutting in uneven terrain, preventing damage and bulldozing. You can adjust the flotation spring tension easily by turning the anchor bolts.
TIGHT TURNING, NARROW 10’10” TRANSPORT
The primary PTO uses an 80-degree constant velocity joint that permits tight turning. A secondary CV driveline option allows you to mow in the transport position to “steer” around field obstacles on the fly. Hydraulic tongue swing allows you to power the machine from transport to operating position and back. End shields flip up for a narrow 10-foot, 10-inch transport width.
WIDE 95-INCH SWATH
Wheels are located inboard of the cutting edge to eliminate run-down of uncut crop. Crop deflectors direct the cut crop inside the tire path and into a wide 95-inch swath.
|H6830 Side Pull|
|Cutting width ft. in. (mm)||10' 4" (3150)|
|Cutting height in. (mm)||0.95-3.25 (24-82.5)|
|Cutter bar tilt angle degrees||0 to -10|
|Cutter bar operating range degrees||+18 to -28|
|Breakaway angle degrees||NA|
|Cutter bar floatation||Vertical adjustable spring|
|Type cutterbar||MowMax™ cutterbar, modular, w/individual sealed reservoirs|
|Number of discs||8|
|Knives per disc||2|
|Disc cutting diameter in. (mm)||19.7 (500)|
|Disc drive||Bevel gears in sealed modules|
|Disc speed RPM||2,835|
|Cutter bar gear protection||Std. ShockPRO: easy replace ShockPRO hub with a partial complement of sacrificial splines|
|Swath width, approx standard** in. (mm)||95 (2413)|
|Swath width with optional swathboards** in. (m)||N/A|
|Minimum PTO horsepower required hp (kW)||60 (44.7)|
|Input speed RPM||540|
|PTO shaft spline/size required||6-spline/ 1-3/8"|
|Driveline protection||Slip clutch|
|Hydraulics and Hitch|
|Hydraulic circuits required||Two remotes|
|Minimum relief pressure required psi (bar)||1,500 (104)|
|Hitch||Category II drawbar|
|Dimensions and Weight|
|Overall width in. (mm)||196 (4978)|
|Overall length in. (mm)||183 (4648)|
|Height - transport position* in. (mm)||62 (1575)|
|Weight, shipping lb. (kg)||3,035 (1379)|
|Weight, operating lb. (kg)||2,610 (1186)|
|Maximum transport speed||20 mph/ 32.2 kph|
|Tires/wheels||27 x 9.5 x 15 6 PR|
