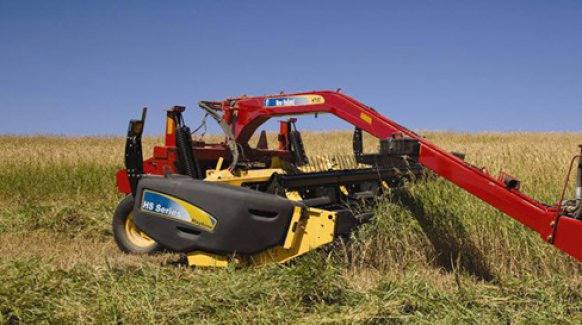

New Holland Ag Products 499 (PRIOR MODEL)

Double tap to zoom



Features

BEST IN PLUG-FREE CUTTING AND CONDITIONING
Rated number-one in smooth cutting and plug-free conditioning, the New Holland Haybine® mower-conditioners deliver core features that lead to top-of-the-line field performance and hay quality: genuine New Holland cutting parts; full, lateral and radial header flotation; chevron-design rubber rolls; the plug-free torsion-bar roll-pressure system; and no tools needed to change from swath to windrows. For the best in quality hay making, count on the original Haybine!

Specifications

Model

499

Auger

NA

Floating range, in. (mm)

NA

Speed, rpm

NA
Conditioner

Conditioner

Chevron-design intermeshing molded rubber rolls, torsion-bar roll pressure, single hand-crank adjustment

Roll length (crushing area), in. (mm)

110 (2794)

Roll diameter, in. (mm)

10-3/8 (264)

Drives

Gear/shaft

Speed, rpm

665

Pressure, lbs./in. (N/mm)

2 to 38 (0.3 to 6.6)

Roll gap adjustment

Shims

Material discharge, in. (mm)

Adjustable gate for swath, windrow or intermediate widths



38 and 100 (965 and 2540)
Cutterbar

Cutterbar

Two opposing assemblies, timed, dual, counter-stroking sickles

Knives

Bolted, over-serrated sections, adjustable assemblies, timed, dual, counter-stroking sickles

Guards

Twin, forged steel, double-hardened hold-downs

Cutting height, in. (mm)

1.25 to 6.25 (32 to 159)

Cutting angle, degrees

-4 to -10, mech std

Hydraulic tilt



Guard points max lift, in. (mm)

19-1/2 (495)

Skid shoes

2

Sickle drive

enclosed gearbox

Sickle speed, spm

1700

Sickle stroke, in. (mm)

3 (76)
Cutting Width

Cutting Width, ft. in. (mm)

12'3" (3734)
Dimensions

Overall width, operating, ft. in. (mm)

19'8" (5994)

Overall width, transport, ft. in. (mm)

13'9" (4191)

Overall length, transport, ft. in. (mm)

21'6" (6553)

Overall height, operating, ft. in. (mm)

6'2-1/2" (1892)

Overall height, raised, ft. in. (mm)

6'8-1/2" (2045)
Drive

Drive

540 or 1000 rpm PTO
Hydraulic Cylinders

Hydraulic Cylinders

Standard header lift, Standard tongue shift
Minimum Tractor Req

Minimum Tractor Req

60-hp (45 kw)



Two remote hydraulic circuits required capable of 1750 psi (12066 kpa)
Operating Speed

Operating Speed, mph (kph)

up to 8 (13)

Max safe transport speed, mph (kph)

25 (40)
Reel

Reel

Rolareel

Peripheral speed, mph (kph)

standard: 4.8 to 7.9 (7.7 to 12.7), with reduction kit 4.0 to 6.6 (6.5 to 10.7)

Speed Adjustment

Variable sheave

Diameter (maximum), ft. in. (mm)

3'7-1/2" (1105)

Adjustments

Fore/aft and vertical

Drive

Belt and chain

Bushings/bearings, in. (mm)

1.25 (31.75) bearing w/collar at cam end and bushings at all other locations
Tires

Tires

11L x 14 4-ply ag implement (HUT)
Tractor Hookup

Tractor Hookup

Hydrostatic
Weight

Weight, lbs. (kg)

4480 (2032)
