CLEAN, HIGH SPEED CUTTING

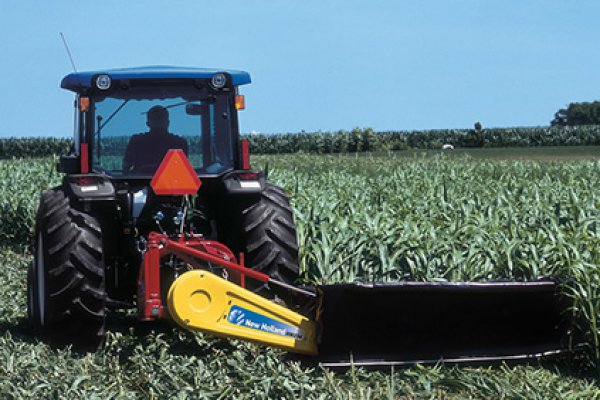

Slice through thick crops, even gopher mounds, at high speed with the HM Series disc mowers. Depending on the model, four, five or six low-profile, oval cutting discs use two knives per disc to slice through the wet grasses. Knives, made of high-quality steel, are reversible for twice the cutting life.
ENCLOSED GEAR-DRIVEN CUTTERBAR
The enclosed gear-driven cutterbar provides years of reliable service. Discs are retained with six bolts for easier service.
PROTECTION AGAINST FIELD DAMAGE
Several important HM Series features fend off foreign objects and keep you moving through the field:
• Rock guards and skid shoes protect the discs and carry the cutterbar over uneven ground.
• A spring-loaded breakaway latch protects the cutterbar by allowing the mower to pivot back the instant it encounters an obstacle.
• An adjustable flotation spring allows you to change cutterbar ground pressure.
OVERRUNNING CLUTCH IS STANDARD
The 540-rpm PTO driveline with overrunning clutch protects the driveline and makes hook-up easy.
CONVENIENT TO USE
The simple design of HM Series disc mowers make them easy to use. A single-acting hydraulic cylinder makes it easy to lift the cutterbar at the end of each pass. Right-side swath divider wheel separates each cut path.
A transport lock makes it easy to move from field to field.
The three-point-hitch mounting, two adjustable parking stands and a storage support for the PTO shaft make it easy to attach and remove HM Series mowers.
|Cutting width ft. in. (mm)||5' 6" (1676)|
|Cutting height in. (mm)||0.63-2.36 (16-60)|
|Cutter bar tilt angle degrees||0 to -8|
|Cutter bar operating range degrees||+18 to -30|
|Breakaway angle degrees||21|
|Type cutterbar||Enclosed gear drive|
|Number of discs||4|
|Knives per disc||2|
|Disc cutting diameter in. (mm)||20.47 (520)|
|Disc drive||Spur gear drive in common sump|
|Disc speed RPM||3,154|
|Cutter bar gear protection||No|
|Swath width, approx standard** in. (mm)||50 (1270) includes std. RH swath wheel|
|Swath width with optional swath wheel** in. (m)||38 (965) w/LH swath wheel|
|Minimum PTO horsepower required hp (kW)||35 (26.1)|
|Input speed RPM||540|
|PTO shaft spline/size required||6-spline/ 1 3/8"|
|Driveline protection||Belt drive to cutter bar|
|Belt tension||Adjustable drawbolt|
|Hydraulics and Hitch|
|Hydraulic circuits required||One remote|
|Minimum relief pressure required psi (bar)||2,320 (160)|
|Hitch||Category I or II|
|Dimensions and Weight|
|Overall width in. (mm)||134.25 (3410)|
|Overall length in. (mm)||54.33 (1380)|
|Height - transport position* in. (mm)||92.52 (2350)|
|Weight, shipping lb. (kg)||933 (423)|
|Weight, operating lb. (kg)||822 (373)|
|Maximum transport speed||NA|
