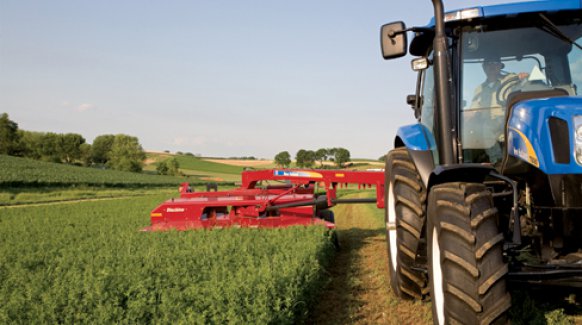

New Holland Ag Products H7230

Double tap to zoom



Features

FAST, SMOOTH CUTTING

You can rely on genuine Discbine® H7000 Series disc mower-conditioners for smooth, trouble-free mowing, even in tough conditions.

THE SHOCKPRO™ HUB ADVANTAGE

ShockPRO™ disc hubs protect the cutterbar by absorbing harmful impacts and can be changed quickly so you’re back making hay quickly.

CONDITIONING CHOICES

Choose the best conditioning system for your crops – chevron form rubbers rolls, steel rolls or advanced LeaningEdge™ flail tines.

MAKING TALL HAYFIELDS LOOK LIKE CLOSE-CUT LAWNS

Close, clean cutting is standard with H7000 Discbine® trailed mower-conditioners. The MowMax disc cutterbar mows at a height of less than one inch, which makes your tall hayfields look like close-cut lawns after you’re finished mowing. Low-profile-design rock guards allow the cutterbar to run at a shallower angle on the ground for less wear, less damage and a more consistent cut height. The Discbine® disc head is suspended independently from the trail frame, allowing it to closely follow changing ground contours and reducing stubble damage and skid shoe wear. Use the adjustable disc header flotation springs and the 2- to 10-degree cutting angle adjustment to cut your valuable crop. A mechanical cutting angle adjustment is standard on 9’ 2’’ models, but a hydraulic control is provided as standard on 10’ 4’’ models for precision on-the-go cutting height adjustments.

Specifications

H7230
New Holland-Disc Cutterbar
Type MowMax™ True Modular Disc Cutterbar
Width of Cut, ft. in. (m) 10' 4" (3.2)
Number of discs 8
Number of knives 16 (2 per disc)
Disc Speed, rpm 3000
Cutting angle 2 to 10 degrees
Hydraulic Cutting angle control Standard
Standard Cutting height skid shoe, in. (mm) Standard 0.95 to 3.2 (24 to 81)
Fixed Raised, high-stubble skid shoe Optional  2.25-4.5 (57-114)
Adjustable Raised, high-stubble skid shoe -
BioMass skid shoe -
Ground clearance with header fully raised, in. (mm) 18" (457)
Cutterbar Flotation Vertical and lateral, adjustable springs
QuickMax™ Knife Change System -
ShockPro™ Disc Drive Hub protection system Standard
MowMax™ 3-year cutterbar protection plan Standard
Chevron-Design Roll Conditioner
Chevron-Design Roll Conditioner Standard
Type. Choice of molded rubber or steel rolls
Roll Length, in. (mm) 102 (2591)
Roll Diameter, in. (mm) 10.4 (264)
Roll Drive 4 HB V-belt and enclosed gears
Roll Speed, rpm 635
Roll Pressure System Torsion Bar
Conditioner Intensity Adjustment Single crank adjustable roll pressure and two stop bolts to adjust roll gap
LeaningEdge™ Flail Conditioner
LeaningEdge™ Flail Conditioner -
Number of LeaningEdge flails -
Semi-Swinging LeaningEdge flail design -
Rotor Diameter, in. (mm) -
Standard Speed, rpm -
Optional Slow Speed, rpm -
Drive. -
Conditioner Intensity Adjustment. -
Optional Textured Hood Liner Kit -
Attachment
Standard Drawbar Optional
Drawbar Swivel Hitch Optional
2-pt Swivel Hitch Optional
Dimensions
Height, Transport, ft. in. (m) 5' 8" (1.7)
Height, Operating, ft. in. (m) 4' 5" (1.3)
Width, Transport, ft. in. (m) 11' 3" (3.4) with standard drawbar hitch
Width, Operating, Std. Drawbar Hitch, ft. in. (m) 16' 0" (4.6)
Width, Operating 2-pt Swivel Hitch, ft. in. (m) -
Width, Operating Drawbar Swivel Hitch, ft. in. (m) -
Length, Transport, Standard Drawbar Hitch, ft. in. (m) 17' 7" (5.3)
Length, Transport, 2-pt Swivel Hitch, ft. in. (m) 19' 9'' (6.0)
Length, Transport, Drawbar Swivel Hitch, ft. in. (m) 19' 9'' (6.0)
Length, Operating, Standard Drawbar Hitch, ft. in. (m) 17' 2" (5.2)
Length, Operating, 2-pt Swivel Hitch, ft. in. (m) 19' 4'' (5.9)
Length, Operating Drawbar Swivel Hitch, ft. in. (m) 19' 4'' (5.9)
Weight, Operating lbs. (kg) 4,165 (1889)
Drive
Drive 540 rpm PTO, enclosed gears and four HB belt
Drive Protection
Drive Protection Slip clutch and over-running clutch
Hydraulics
Hydraulic swing Standard (double-acting cylinder)
Operating Position Side-Pull, Right Side
Hydraulic lift Standard (operated by two single-acting cylinders; master/slave)
Hydraulic tilt Optional (operated by single-acting cylinder and incorporated into the lift system)
Material Discharge
Swath, ft. (mm) 7 (2134)
Windrow, ft. (mm) Adjustable from 3 to 7 (914 to 2134)
Wide Thin Fin Kit (100 % Coverage) Optional
Speeds
Operating, mph (kph) 0 to 9 (0 to 14.5)
Transport, mph (kph) 20 (32)
Tractor Requirement
Tractor Requirement 80 PTO hp (60 kW) or greater with standard ASAE Category II drawbar.
Hydraulic valves All models require two remote hydraulic valves capable of 1500 psi (10343 kPa), 7-pin SAE J560 connector for transport lights
Tubeless Ag Rib Implement Tires
Size 11L x 15 6PR
