Features

  • Reduced-Emission Engine Technology - Caring for Nature
    The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.

  • STIHL Easy2Start™
    The STIHL Easy2Start™
    system makes starting STIHL outdoor power tools almost effortless, eliminating the need for a strong pull of the starting cord. This advanced starting system is designed to make starting STIHL products easier. The specific system may vary by model, but in each case, a quick pull overcomes the engine’s compression to minimize the strength and effort required to start. Available on selected products.

  • Shoulder Strap / Carrying System
    Using a shoulder strap or carrying system helps distribute the weight of the equipment for increased operator comfort and improved maneuverability.

  • Simplified Starting Procedure
    To get started, simply pump the fuel primer, set the choke and pull the starter cord. The built-in stop switch allows the user to turn off the engine with a simple press of the button. When the engine is off, the throttle lock automatically returns to the “start” setting. Your power tool will be ready to be started when you’re ready to get back to work.

  • Fully Lined Drive Shaft
    Provides smooth operation and less vibration.

  • High Tech Polymer Housing
    Housings are lightweight, withstand greater impact and are corrosion-resistant.

  • Protected Choke Lever/Knob
    Helps prevent damage.

  • Start/Run/Stop Controls on Handle

  • Throttle Trigger Interlock br />Must be depressed before the trigger can be activated.

  • Air Filter Cover
    Easily removed for fast and easy filter cleaning or replacement.

  • Protected or Enclosed Control Cables
    Eliminate dangling and loose wires.

  • Heavy-Duty Steel-On-Steel Clutch
    Centrifugal clutch is designed to reduce slippage.

  • Protected Spark Plug
    Protected yet easy to change.

  • Protected Spark Arrestor Muffler
    Has large baffles which reduce noise level and contains a screen designed to reduce the emission of sparks.

  • Upright Translucent Fuel Tank
    Allows operator to easily check fuel level before starting work. Upright position makes it easier to refill.

  • STIHL M-Tronic™ System
    The STIHL M-Tronic™ system intelligently manages the operating performance of the engine. Equipment performance can be affected by a dirty air filter, changes in elevation or poor fuel quality. The STIHL M-Tronic™ system compensates for these factors by eliminating the low and high-speed carburetor adjustment screws and electronically monitoring the engine and digitally controlling the fuel/air mixture. This new technology also provides a simplified warm start procedure.

  • Multi-Function Control Handle
    Having easy access to all of the controls on one comfortable handle makes it easy to complete tasks so the operator’s hand never has to leave the handle.

  • IntelliCarb™ Compensating Carburetor
    The IntelliCarb™ Compensating Carburetor measures the air pressure on the clean side of the air filter and adjusts the metering diaphragm in the carburetor. This keeps the RPM at a consistent level, even when the air filter begins to clog.

  • Tool-Free Handle Adjustment
    The central wing nut enables easy adjustment without the use of tools. For transportation and space-saving storage, the handle can be rotated 90°.

  • Purge Pump Primer
    By pressing the bulb, this small fuel pump delivers fuel to the carburetor, reducing the number of starting pulls needed after an extended break between uses.

  • Anti-Vibration System
    STIHL has a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.

  • Cutting Heads & Blades Selection Chart
    Need help selecting a cutting head or blade for your STIHL trimmer or brushcutter?

  • Bike Handle
    When used in conjunction with a harness, the bike handle allows the machine to be easily guided, enabling a smooth horizontal mowing action to cover large areas quickly and efficiently. With soft grips for increased comfort, the bike handle provides greater control and helps reduce operator fatigue.

Specifications

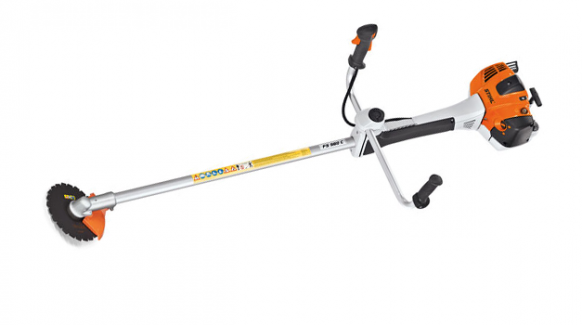

FS 560 C-EM Specifications - Professional Use
DISPLACEMENT 57.1 cc (3.48 cu. in.)
ENGINE POWER 2.8 kW (3.75 bhp)
WEIGHT* 10.2 kg (22.5 lbs.)
FUEL CAPACITY 990 cc (33.5 oz.)
POWER SOURCE Gas
*Weight without cutting attachment or deflector.
