Built in the USA
Indicates products that are built in the United States from domestic and foreign parts and components
STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
Side-Access Chain Tensioner
The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
Toolless fuel and oil caps with retainers
Simply lift the lever and twist the caps to remove or tighten. There‘s no need to use a tool to tighten or loosen.
Translucent Fuel Tank
Allows operator to easily check fuel level before starting work.

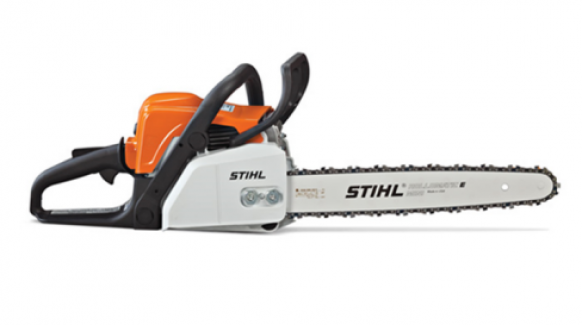

|MS 171 Specifications - Occasional Use|
|DISPLACEMENT||30.1 cc (1.8 cu. in.)|
|ENGINE POWER||1.3 kW (1.7 bhp)|
|POWERHEAD WEIGHT||4.3 kg (9.5 lbs.)|
|GUIDE BAR LENGTHS* (Recommended ranges)||30 to 40 cm (12" to 16")|
|FUEL CAPACITY||280 cc (9.5 oz.)|
|CHAIN OIL CAPACITY||180 cc (6.1 oz.)|
|OILOMATIC® CHAIN||3/8" PMM3|
