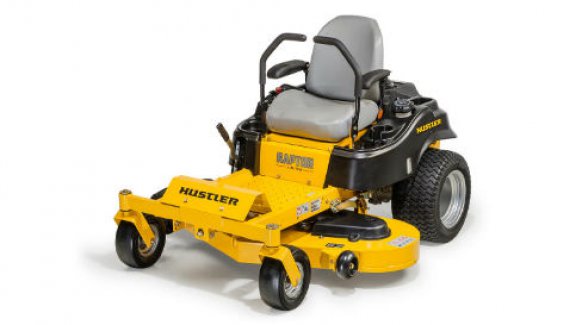

Hustler 52" Limited Kawasaki FR691

Double tap to zoom



Features

Heavy-duty welded deck

The heavy-duty welded deck provides maximum strength and durability.

Heavy-duty Fabricated Frame

Hustler's heavy-duty fabricated frames are the toughest in its category.

Premium Seat

Custom, bolstered vinyl seat with armrests.

Engine Guard

Standard on the Raptor Limited.

Hour Meter

Standard on the Raptor Limited.

Exclusive SmoothTrak Steering

The most precise steering in the zero-turn industry is only found on a Hustler®.

Specifications

Engine
Zero-Turn Configuration 52" Limited Kawasaki FR691
Manufacturer Kawasaki
HP (Per SAE J 1995.) 23
Displacement 725
Cooling Air Cooled
Air Cleaner Single Stage
Engine Warranty 3 Year
Drive System
Zero-Turn Configuration 52" Limited Kawasaki FR691
Type Dual Hydrostatic
Pumps n/a
Wheel Motors n/a
Hydraulic Lines n/a
Hydraulic Cooling n/a
Reservoir Capacity n/a
Transmission Hydro-Gear EZT
Speed 6.5 mph
Parking Brakes Patented Automatic
Decks
Zero-Turn Configuration 52" Limited Kawasaki FR691
Cutting Width 52"
Cutting Heights 1.5" - 4.5"
Deck Lift Hand Operated
Depth 4.1"
Blades 3
Blade Length 3 - 17.86" x 2.25" x .188"
Blade Tip Speed 16,600 fpm
Spindles Aluminum w/ 3/4" Shafts and Triple Protection Sealed Ball Bearings
Deck Belts n/a
Drive Electric PTO Clutch
Construction 11ga. Fabricated
Spindle Mounts Reinforced 14ga.
Impact/Trim Areas 1/4" x 3/4" Steel Bar
Construction
Zero-Turn Configuration 52" Limited Kawasaki FR691
Frame 3.25" x 1.5" x .120" Steel
Deck Carrier Frame n/a
Engine/Transmission Frame n/a
Engine Plate n/a
Front Axle Fabricated w/ Sealed Ball Bearings
Front Caster Wheels Commercial Duty Steel Roller Bearings, Greasable
Front Caster Forks Fabricated 1/4" Steel
Operator Platform n/a
General
Zero-Turn Configuration 52" Limited Kawasaki FR691
Seat Premium Seat w/ Armrests
Fuel Capacity 3 gal.
Cup Holder Yes
Front Tire 11 x 5
Drive Tire 18 x 10.5 - 10
Productivity
Zero-Turn Configuration 52" Limited Kawasaki FR691
Acres per Hour 2.72
Dimensions
Zero-Turn Configuration 52" Limited Kawasaki FR691
Weight 503 lbs.
Height 45"
Height w/ ROPS Up n/a
Height w/ ROPS Folded n/a
Length 73"
Width n/a
Width w/ Chute Up 53.4"
Tire Width 45"
Dimensions w/ Catcher
Zero-Turn Configuration 52" Limited Kawasaki FR691
Catcher Type 2-bag
Powered/Non-powered Non-powered
Catcher Capacity 5.4 bushel
Mower Length w/ Catcher 96.4"
Mower Width w/ Catcher 63.9"
