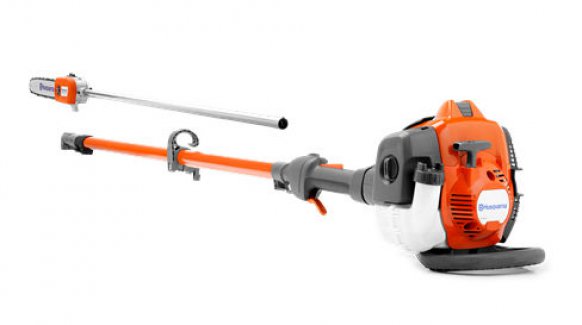

Husqvarna 525P5S

Double tap to zoom



Features

Auto return stop switch

Stop switch automatically resets to the ON position for easier starting.

Intuitive controls

The choke and purge are easy to reach and understand.

Magnesium clutch housing

Robust magnesium clutch housing for tough professional use, ensuring a long service life.

Rear impact guard

The rear-impact guard protects the engine from wear and damage.

Chain lubrication

Adjustable, automatic chain lubrication.

Air Purge

Removes air from carburetor and fuel system for easy starting.

Efficient air filter

The efficient air filter provide less cost for service and less engine wear

Stand alone starter

The stand alone starter makes it easy to change starter cord if needed.

Metal skid plate

Durable metal skid plate protects the engine and fuel tank.

Inertia balancing wheel

The inertia balancing wheel reduces vibration and provides superior cutting performance.

Specifications

Dimensions

Weight (excl. cutting equipment) 14.11 lbs
Length, extended, including cutting equipment 137.8 in

Engine

Cylinder displacement 25.4 cm³
Power output 1.34 hp
Maximum power speed 8500 rpm
Fuel tank volume 17.25 fl oz
Fuel consumption 395 g/kWh
Idling speed 3000 rpm

Equipment

Chain pitch 3/8" LP
Recommended bar length, max 11.81 in
Recommended bar length, min 9.84 in

Lubricant

Oil tank volume 0.3 US pint

Sound and Noise

Sound pressure level at operators ear 90 dB(A)
Sound power level, guaranteed (LWA) 107 dB(A)
