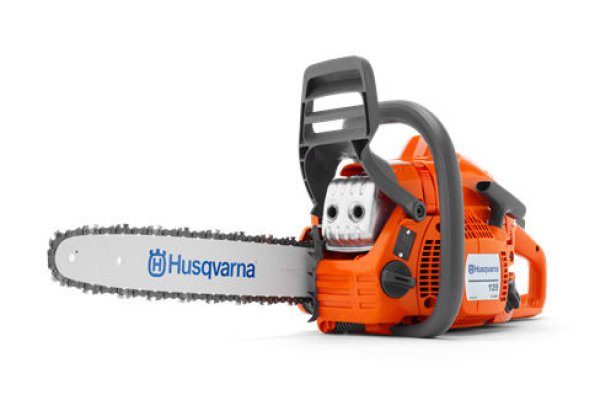

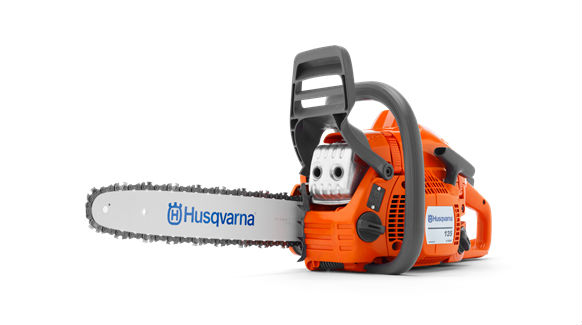

Husqvarna HUSQVARNA 135

Double tap to zoom



Features

X-Torq®
Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.

Air Injection
Centrifugal air cleaning system removes larger dust and debris particles before reaching the air filter. This results in reduced air filter cleanings and improved engine life.

Quick-release air filter
Facilitates cleaning and replacement of the air filter.

Ergonomic rear handle
Increased comfort with soft inlay, ergonomic trigger and asymmetrical handle.

Felling marks
Distinct marks for better felling precision.

Combined choke/stop control
Allows for easier starting and reduces the risk of engine flooding.

Side-mounted chain tensioner
Easier access to chain tensioning device.

Snap-lock cylinder cover
Saves time when changing spark plugs and cleaning.

LowVib®
System designed to reduce vibration levels to the operator, which lessens fatigue.

Inertia activated chain brake
Reduces the likelihood of injury due to kickback.

Air Purge
Removes air from carburetor and fuel system for easy starting.

Specifications

Engine

Cylinder displacement: 40.9 cm³
Cylinder displacement: 2.5 cu.inch
Power output: 2.01 hp
Maximum power speed: 9000 rpm
Fuel tank volume:0.78 US pint
Idling speed: 2900 rpm
Spark plug: Champion RCJ7Y, Husqvarna HQT-1, NGK BPMR7A
Electrode gap:0.02 in
Torque, max.: 2 Nm
Fuel consumption: 652 g/kWh

Equipment

Recommended bar length, max: 16 in
Recommended bar length, min: 14 in
Chain pitch: 3/8" LP
Chain gauge:0.05 in
Chain speed at max power:56.1 fts
Chain speed at 133% of maximum engine power speed:74.48 fts

Dimensions

Weight (excl. cutting equipment):9.7 lbs

Lubricant

Oil tank volume: 0.5 US pint
Oil pump type: Automatic
Oil pump capacity Max: 13 ml/min
Oil pump capacity Min: 13 ml/min

Overall dimensions

Weight (excl. cutting equipment): 9.7 lbs

Sound and Noise

Sound power level, guaranteed (LWA): 114 dB(A)
Sound power level, measured: 113 dB(A)
Sound pressure level at operators ear: 102 dB(A)

Vibration

Equivalent vibration level (ahv, eq) front handle: 3.9 m/s²
Equivalent vibration level (ahv, eq) rear handle: 3.8 m/s²
