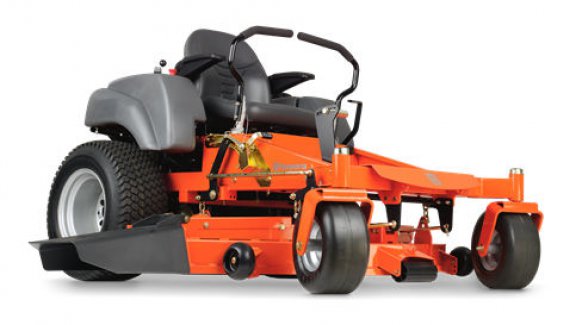

Husqvarna HUSQVARNA MZ 61 967 27 75-02

Double tap to zoom



Features

6-inch Wide Caster Wheels

Durable 6-inch wide front casters with pneumatic tires provide long life and are easy on turf.

Removable foot pan

Removable foot pan for easy access to deck belt pulleys, spindles and clean up.

Pedal-assisted cutting deck lift

Ergonomically designed deck lifting system offers precise cutting height adjustment.  Easy and quick adjustment from the operator's seat.

Oversized chassis

2'' x 3'' tube chassis combined with large rear and front tires provide superior strength and improved ride quality.

Transmissions


Longer life due to premium integrated zero-turn transmissions featuring charge-pumps, larger drive axles and expansion tanks.

Easy-access service points


Oil and filter maintenance, hydraulic drive system components/adjustment, electrical system and battery are all within easy reach so you can quickly get back to being productive.

Comfort & Support

The comfortable high back seat features standard arm rests.

Kawasaki engine

Kawasaki engines offer smooth, quiet, reliable power. Heavy-duty components offer long life and electric start is standard.

Durable cutting deck


The heavy-duty fabricated cutting deck features twin sheets of 11 gauge steel for added support for spindles and increased overall strength.

Hour meter with service minder


Indicates when it's time to service your mower.

Adjustable tracking


The easily accessible adjustment allows fine-tuning of straight line tracking without tools.

Zero-turn steering system

Individual, hydraulic wheel-drive provides very precise maneuvering and allows the mower to rotate around its own axis, without any turning radius.

Cast Aluminum Deck Spindles


Durable blade spindles with aluminum housings for effective heat dissipation.

Comfortable steering


Dual levers with foam-padded hand grips and viscous dampers that reduce vibration, create a comfortable operator experience.

9 Bushel Collection System


Increase productivity and versatility with a 9 bushel triple bag collection system. Unique design removes or installs in a matter of minutes.

Specifications

Cutting deck

Cutting width: 61 in
Cutting deck type: Fabricated
Cutting methods: Collect/Mulch/Side ejection
Cutting deck material: Steel
Deck thickness: 11 gauge
Cutting height steps: 12
Blade engagement: Electric clutch
Clutch rating: 200 ft.lb
Blades: 3 pcs
Blade-tip speed: 18500 fpm
Anti-scalp wheels: 2
Nose roller: Yes
Deck lifting system: Manual, foot assisted
Powder-coated cutting deck: Yes
Spindle/mandrel type: Aluminium, regular
Greasable mandrels: Yes
Cutting height, min (approximate): 1.5 inch
Cutting height, max (approximate): 4.5 in

Drive system

Transmission type: Hydrostatic
Transmission manufacturer: Hydro-Gear
Transmission model: ZT 3100
Pump displacement: 10 cm³
Fan-cooled pumps: Yes

Capacity

Productivity: 4.2 acres/hr
Speed forward max: 8.5 mph
Speed forward min: 0 mph

Dimensions

Base machine, length: 75.5 in
Base machine, height: 42 in
Base machine, width (chute down): 76 in
Base machine, width (chute up): 62.3 in
Weight: 770 lbs
Tire size, front Width: 6.5 in
Tire size, front Diameter: 13 in
Tire size, front Diameter wheel: 6 in

Engine

Engine manufacturer: Kawasaki
Engine name: FR Series
Power: 24 hp
Cylinder displacement: 44.3 cu.inch
Cylinders: 2
Engine cooling: Air
Generator: 16 A
Air Filter type: Standard
Fuel Type: Gasoline
Engine lubrication type: Full pressure
Oil filter: Yes
Fuel tank volume (with reserve): 5 gal (US)
Fuel tank location: Side (Single)

Approval

Homeowner Warranty: 3 Year Limited
Commercial Warranty: 1 Year Limited

Equipment

Seat material: Vinyl
Seat spring: Yes
Seat back height: High
Hour meter: Digital with pre-programmed service intervals
Cup holderl: Yes
Armrests: Yes
Seat type: High-back
