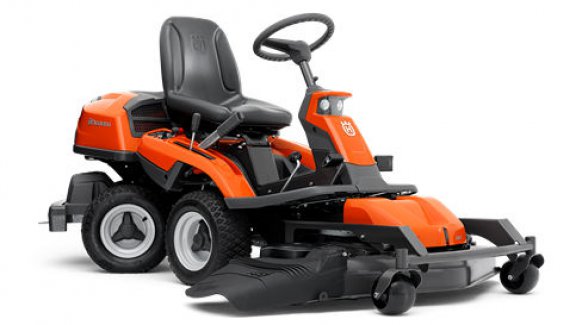

Husqvarna R 322T AWD

Double tap to zoom



Features

Articulated steering

The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine.  The result is superior maneuverability with a minimum turning radius at full lock.

All-Wheel-Drive (AWD)

All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes.  AWD automatically adjusts the traction on all wheels depending on  situation and ground condition.

Front-mounted cutting deck

Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.

Combi cutting deck

The Combi cutting deck offers the versatility of two different cutting systems.  Choose between BioClip for lawn fertilisation and rear ejection for efficient mowing on areas with higher and rougher grass.

Service position

Service position on the cutting deck facilitates cleaning and service.

Attachment frame

Easy to shift between cutting decks and front-mounted attachments, such as broom, flail mower, snow blade and snow thrower.

Easy-access controls

Controls are easy accessible and designed for optimum user comfort.

Rear ejection

The rear ejection cutting mode provides high-effective cutting performance on areas that are cut less frequently.

Floating cutting deck

The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn.

Easy-access service points

The tilting hood and easy-access servicing points make maintenance and servicing easy.

Pivoting rear axle

The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.

Storage compartment

The open left-hand storage is easy to access while mowing.

Comfortable driver's position

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable

External fuel cap

Thanks to the external fuel cap, you don't have to open the engine hood when taking on more fuel. The extra wide fuel tank opening makes refueling even easier.

Automatic blade engagement

The blades are engaged automatically, when you lower the cutting deck.

Four large wheels

Large wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.

Pivoting support wheels

The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damages to the lawn surface.

Transparent fuel tank

Large, transparent fuel tank makes it easy to check the fuel level.

Hour meter with service minder

Indicates when it's time to service your mower.

Bottle holder

Convenient bottle holder for refreshments.

Versatile usage

A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round.

Pedal-operated hydrostatic transmission

Speed and direction are managed by pedals, which lets you keep both hands on the steering wheel, for optimum driving control.

Easy-access cutting height lever

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.

Engine behind driver

Thanks to the rear-mounted engine, you get better overview of the mowing and less noise and emissions in the driver’s area.

Adjustable pitch angle

Possible to fine-tune the cutting deck position, to ensure perfect cutting results at all times.

Headlights

Two 20W halogen lights provide efficient work light.

Cup holder

Cup holder for refreshments while mowing.

Specifications

Battery

Battery type: Lead/Acid
Battery capacity: 24 Ah

Cutting deck

Uncut circle: 26 in
Cutting width, min: 41 in
Cutting width, max: 48 in
Optional cutting decks: Combi 103, Combi 112
Cutting deck type: Stamped
Cutting deck material: Steel
Cutting height, max (approximate): 4 in
Cutting height, min (approximate): 1.5 inch
Cutting height steps: 10 pcs
Blade engagement: Automatic
Blades: 3 pcs
Powder-coated cutting deck: Yes

Vibration

Vibration level steering wheel: 2.5 m/s²
Vibration level seat: 0.7 m/s²

Drive system

Transmission type: Hydrostatic
Transmission manufacturer, rear: Tuff Torq
Drive method: Pedal-operated
Speed forward max: 5.6 mph
Speed reverse max: 5.6 mph
Transmission manufacturer, front: Tuff Torq
Transmission model, front: KTM10L
Transmission model, rear: K574

Equipment

Hour meter: Digital with pre-programmed service intervals
Seat material: Vinyl
Seat suspension: Yes
Seat back height: High
Foldable seat: Yes
Steering wheel type: Comfort

Engine

Engine manufacturer: Briggs & Stratton
Engine name: Endurance Series V-Twin
Net power at preset rpm Energy: 12.6 kW
Net power at preset rpm: 3000 rpm
Cylinder displacement: 40.03 cu.inch
Cylinders: 2
Engine cooling: Air
Generator: 16 A
Battery: 12 V
Battery: 24 Ah
Fuel Type: Gasoline
Fuel tank volume: 25.36 US pint
Fuel tank volume (with reserve): 3.2 gal (US)
Oil filter: Yes

Dimensions

Tire dimensions, front: 165/60-8
Tire dimensions, rear: 165/60-8
Wheelbase: 34.9 in
Base machine, height: 45.3 in
Base machine, length: 79.5 in
Base machine, width: 35 in
Weight: 570.99 lbs
