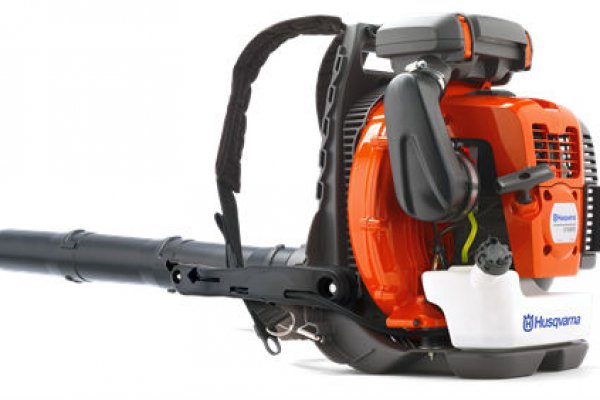

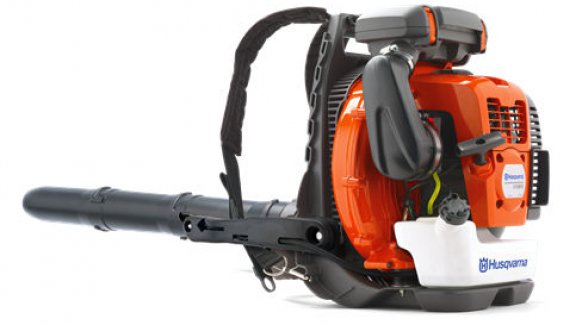

Husqvarna HUSQVARNA 570BFS

Double tap to zoom



Features



X-Torq® engine

The X-Torq® engine design reduces harmful exhaust emissions by up 60% and increased fuel efficiency by up to 20%.

Frame mounted throttle control

Well-protected throttle control located on left-hand side of the frame.

Commercial grade air filter

The 2-stage intake air filtration ensures long operation periods in dusty conditions.

High blowing capacity

The powerful and easy to start X-Torq® engine in combination with efficient fan design delivers high air speed and air flow.

Specifications

Capacity

Air flow in housing 972 cfm
Air flow in pipe 768 cfm
Air speed (flat nozzle) 202 mph
Air speed (round nozzle) 236 mph

Engine

Cylinder displacement 65.6 cm³
Power output 4 hp
Maximum power speed 8000 rpm
Fuel tank volume 74.4 fl oz
Idling speed 2000 rpm
Electrode gap 0.03 in
Spark plug NGK CMR7H
Fuel consumption 431 g/kWh

Sound and Noise

Sound power level, guaranteed (LWA) 110 dB(A)
Sound pressure level at operators ear 99 dB(A)

Vibration

Equivalent vibration level (ahv, eq) handle 5 m/s²
