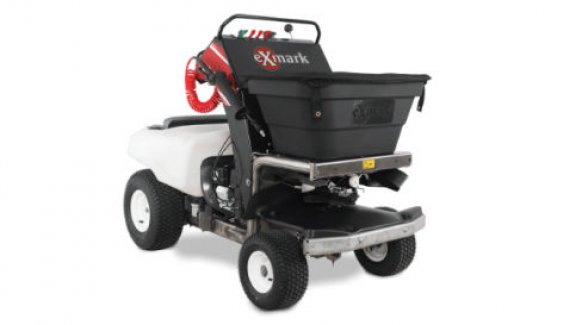

Innovative Lean-to-Steer Technology
This advanced solution allows the operator to control all motion with one hand.
You can mix chemicals in the tank and keep them in suspension, thanks to our innovative agitation system.
Everything you need at your fingertips, allowing you to make easy adjustments and maintain total control.
Hopper can hold 175 lbs. An extra 50 lb bag can also be placed in carrier on top of the tank.
Stainless steel operator platform with isolation mounts for a more comfortable ride. Locks up or down for storage.
|Front Tires||18 x 7.5-8|
|Rear Tires||13 x 6.5-6|
|Width / Cutting Deck||35"|
|Engine Type||Subaru EX27|
|Drive System||Tuff Torq|
|Fuel Capacity||1.59 gal|
|Ground Speed||up to 5.5 mph forward; up to 4.0 mph reverse|
|Spreader and Spray System|
|Hopper Capacity||175 lbs. + 50 lbs. on spray tank; 12 VDC, 2 hp motor|
|Spread Width||Adjustable from 4 ft up to 22 ft|
|Tank Capacity||20 gal|
|Spray Rate||Wide - 0.69 gpm at 30 psi, 0.80 gpm at 40 psi; Narrow - 0.35 gpm at 30 psi, 0.40 gpm at 40 psi|
|Spray Width||Wide spray up to 11 ft wide; Narrow spray up to 5 ft wide|
