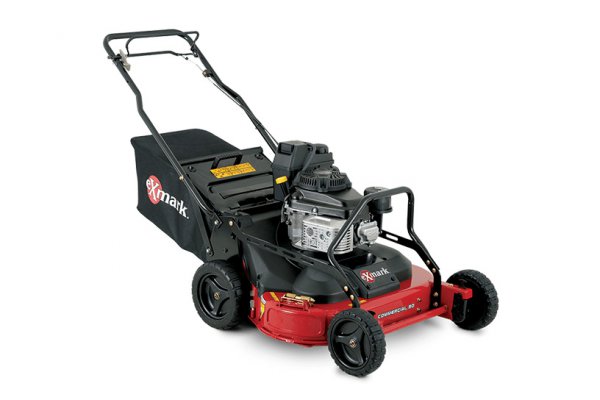

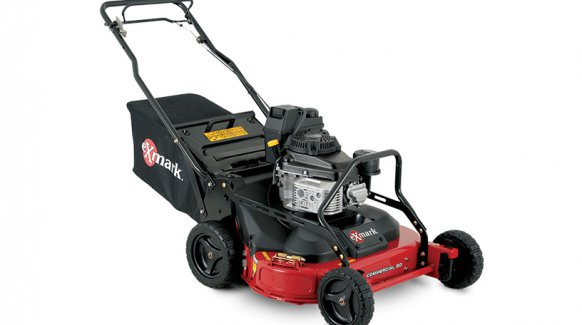

Exmark ECS180CKA30000

Double tap to zoom



Features

Patented Front Height Adjustment

Innovative, simple and built to last, our patented front height adjustment eliminates the need for pivot-style adjusters. The single-point rear height adjustment allows the operator to quickly change the cutting height.

Bag Capacity

2.5 bushel capacity

Twin-Blade Efficiency

The Commercial 30’s timed blade system keeps the overall design compact while delivering a superior cut. It also reduces the horsepower requirement.

Simplified Maintenance

Its access panel makes for easy belt and blade adjustments. And less time in the shop means more time on the job.

Heavyweight Performance, Lightweight Handling

Unit weighs more than a 21”, but operator will not see additional fatigue in operation due to balance of unit and increased coverage.

Productivity

Improve productivity, increase control and manage costs with a deceptively light walk-behind mower.

Holds Side-Hills

Positive drive transmission holds side-hills and helps prevent downhill “run-away”.

Specifications

Equipment
Drive Tires 10 x 3.0, semi-pneumatic
Safety Package Blade Brake Clutch (BBC).
Power Components
Speed 0.0 mph to 4.2 (6.6 kmph) mph forward.
Engine Brand Kawasaki®
Engine Model FJ180V KAI
Engine Type Carbureted
Engine Series FJ KAI
Engine Speed 3,500 rpm
Engine Displacement 179
Air Filter Dual element air cleaner
Drive Belt-Drive
Drive Description Self-propelled, rear-wheel gear-driven.
Fuel Capacity 1 gallon (3.8-L)
Fuel Indicator None
Carb Compliant Yes
Fuel Type Gas Carbureted
Decks
Deck Style Description Fixed deck, Rear-discharge bagger with option to mulch or side discharge.
Bag Capacity 2.5 bushels (20 gallons)
Deck Construction 4.6" Deep Stamped Steel with welded reinforcement
Deck Style Fixed Deck
Width / Cutting Deck 30"
Cutting Heights 1.5"(3.8 cm) to 5.0" (12.7 cm) in 0.5" (1.3 cm) increments.
Blades 2 Blades at 15.4" Length
Blade Tip Speed Approximately 18,500 fpm.
Dimensions
Width 31.9 in. (81cm)
Length 66 in. (167.6 cm)
Height 38.3 in. (97.2 cm)
Curb Weight 170
