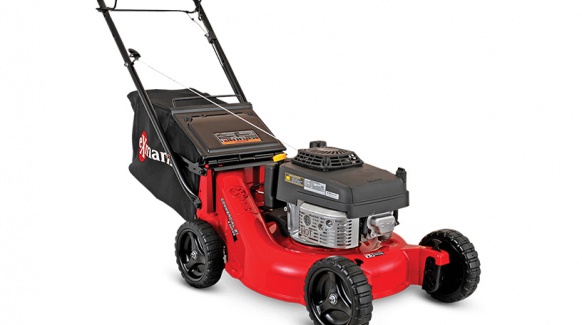

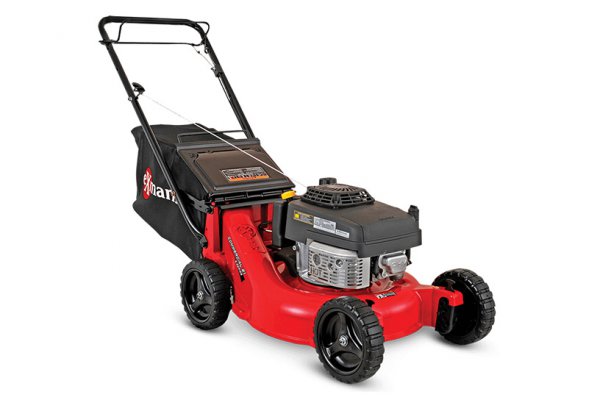

Exmark ECS180GKA21000

Double tap to zoom



Features

Multi-Purpose Blade

Our innovative blade design makes it easy to go from mulching to bagging. And vice versa.

Variable-Speed Transmission

Just engage and go, at infinitely variable speeds up to 4.2 mph. Its simple operation makes the S-Series a great mower for training new employees.

The Exmark Signature Cut

The cutting deck is a full five inches deep, delivering a consistently great cut whether you’re bagging or mulching.

Easy On/Off Bag Design

Easy on/off bag design eliminates the need for levers and doors. The top fill feature allows the operator to check how full the bag is during operation.

Patented Front Height Adjustment

Innovative, simple and built to last, our patented front height adjustment eliminates the need for pivot-style adjusters. The single-point rear height adjustment allows the operator to quickly change the cutting height.

Bag Capacity

2.5 bushel capacity



Specifications

Equipment
Drive Tires 9" x 2.5", semi-pneumatic.
Safety Package Zone start
Power Components
Speed 0.0 mph to 4.2 mph (6.6 kmph) forward.
Engine Brand Kawasaki®
Engine Model FJ180V
Engine Type Carbureted
Engine Series FJ
Engine Speed 3,300 rpm
Engine Displacement 179
Air Filter Dual element air cleaner
Drive Belt-Drive
Drive Description Self-propelled; rear-wheel gear-driven.
Fuel Capacity 2 quart integral fuel tank
Fuel Indicator None
Carb Compliant No
Fuel Type Gas Carbureted
Decks
Deck Style Description Fixed deck, Rear -discharge bagger standard with option to mulch.
Bag Capacity 2.5 bushels (20 gallons).
Deck Construction 5" deep, 1/4"-thick die-cast aluminum.
Deck Style Fixed Deck
Width / Cutting Deck 21"
Cutting Heights 1.0" (2.5 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments.
Blades 1 Blade at 20.5" Length
Blade Tip Speed Approximately 18,500 fpm.
Dimensions
Width 22 in. (55.9 cm)
Length 62 in. (157.5 cm)
Height 38 in. (96.5 cm)
Curb Weight 112
