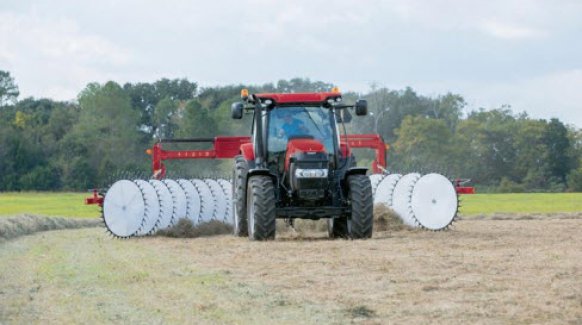

Case IH Products WR401 HD

Double tap to zoom



Features

WR401 HD Feature Highlights

  • Built for the rigorous demands of hay growers who require high-speed, high-volume, flat-land raking: operating speeds as high as 15 mph (24 kph) and no need for a center kicker wheel, so you can drive faster
  • A raking capacity up to 30 ft. 3 in. (9.2 m) wide
  • The offset design turns all the crop, ensuring uniform crop drydown
  • 60-in. (1.5-m) rake wheels are constructed with: heavy iron gussets for superior strength, uv-treated poly wind panels, an over-center wheel stop to keep wheels in proper position, torsional dampening springs for flotation
  • Off-set walking beam tandem wheels allow the machine to follow ground contours and maintain consistent tine height
  • Helps unit travel smoothly over wheel tracks or irrigation borders
  • The hydraulic hose routing is protected by rubber conduit on the telescoping frame to keep hoses from pinching and binding

Specifications

Model WR 401 HD - 17 Wheel
Wheel Rake Description
Manufacturer Description Heavy Duty
Dimensions
Raking width, minimum, ft-in (m) np
Raking width, maximum, ft-in (m) 30' 3" (9.22)
Windrow width, minimum, ft-in (m) np
Windrow width, maximum, ft-in (m) 6' (1.83)
Windrow width adjustment Hydraulic
Transport width, ft-in (m) 12' 3" (3.73)
Transport length, ft-in (m) 28' 3" (8.61)
Transport height, ft-in (m) 7' 6" (2.29)
Weight
Operating weight, lb (kg) 5,700 (2586)
Rake Wheels
Number of rake wheels 17
Rake wheel diameter, in (mm) 60 (1524)
Tines per wheel 36
Tine diameter, in (mm) 0.285 (7.2)
Rake wheel bearings Tapered roller bearings
Transport Tires
Tire count and size Four 9.5Lx15 SL
Options
Center kicker wheel None
Wind panels on rake wheels Standard
Tractor Requirements
Minimum tractor power, hp (kW) 65 (49)
Hydraulic circuits One
Sales Literature
Literature number CIH01111004
Literature date 1/1/2010
Other Documentation
Document Number HF-5118-10
Document Date 2/1/2010
Status and Entry Dates
Manufacturing Status Current
First Entry Date 4/27/2013
Revision Date --
