Wide Ratio CVT Transmission
The wide ratio CVT transmission provides plenty of speed in the lower gears and ample acceleration without sacrificing fuel efficiency.
All Case IH Scout Models
The clean air intake with a truck-style filter reduces contamination and provides ease of maintenance.
Case IH Scout
The 14hp Briggs & Stratton Vanguard, air-cooled, 4-stroke, V-Twin, 480cc gas engine boasts 8-percent more horsepower and torque than its mid-size competition.

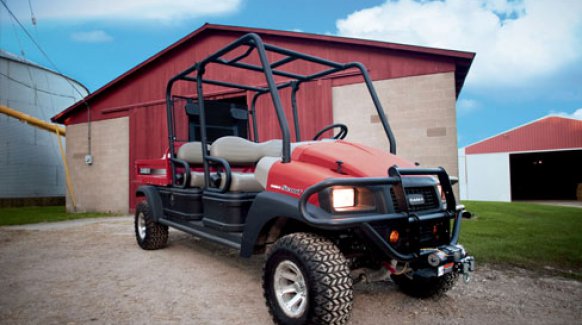

Case IH Scout XL
Choose either a 23hp air-cooled Kawasaki gas engine, or a 20hp liquid-cooled Kubota diesel engine.
Independent Rear and Front Suspension
Navigates rugged terrain with independent front and rear suspension plus rack and pinion steering. It does all the work, while you enjoy the scenery. (Available on all Case IH Scout models)
Swing-Arm Rear Suspension
Double A-Arm front suspension with coil over shocks enhances your ride comfort, while reducing tire wear. (Available on Case IH Scout XL models)
Double A-Arm Front Suspension
The swing-arm rear suspension reduces body roll & side-to-side sway. (Available on Case IH Scout XL models)
Under Hood Storage
Take advantage of additional under-hood storage space. (Available on all Case IH Scout models)
The interior glove box offers ample storage space. (Available on all Case IH Scout models)
With a cargo bed capacity of 425-lbs., it will carry everything you need to keep livestock fed, watered, healthy, and groomed. (Available on Case IH Scout models)
Full-Sized Cargo Bed
Heavy payloads pose no problem, thanks to the full-sized cargo bed capable of handling loads of up to 1,050 and a total vehicle capacity of 1,600 lbs. (Available on Case IH Scout XL models)
Hydraulic, 4-wheel Disc Brakes
Experience more reliable braking power from the four-wheel hydraulic disc brakes and CVT engine braking. (Available on all Case IH Scout models)
6-point certified ROPS/retractable safety belts
A certified ROPS and retractable safety belts are standard on all Case IH Scout models.
4 x 4
With automotive-type controls, it is very easy to change from 2WD to 4WD. (Available on Case IH Scout models)
"On-demand" 4-wheel Drive
Operates just like a truck with automotive-style gas and brake pedals and user-friendly hand levers for differential locks and 2WD/4WD controls.
12V Power Outlet
Plug in your GPS, air compressor, MP3 player or anything else that fits in the 12V outlet.
|Model||CASE IH SCOUT XL™ DIESEL|
|Engine||Kubota® 719cc, 3-Cylinder Industrial Grade|
|Horsepower||20 hp (14.9 kW)|
|Steering||Rack & Pinion|
|Suspension - Front||Independent Double A-Arms w/ Coil-Over Shocks|
|Suspension - Rear||Swing Arm w/ Coil-Over Shocks|
|Brakes||4-Wheel, Hydraulic Disc Brakes|
|Tires: Front||Mud or All-Terrain, 25 × 11-12, 4-Ply|
|Tires: Rear||Optional Aluminum Alloy Wheels|
|Cargo Box SIze||48 in. L × 49.8 in. W × 10.9 in. H; (121.9 cm × 126.5 cm × 27.7 cm)|
|Bed Capacity||800 lbs. (362.9 kg) ; 1,050 lbs. (476.3 kg) Available|
|Total Vehicle Rated Capacity||2-Pass: Std. 1,200 lbs. (544.3 kg); High-Capacity 1,450 lbs. (657.7 kg); 4-Pass: 1,600 lbs. (725.7 kg)|
|Overall Length||2-Pass: 122 in. (316.5 cm); 4-Pass: 154 in. (400.3 cm)|
|Overall Width||58.5 in. (152.4 cm)|
|Overall Height||82.3 in (199.6 cm)|
|Weight Less Batteries||2-Pass: 1,597 lbs. (707.2 kg); 4-Pass: 1,734 lbs. (810.1 kg)|
|Turning Radius||2-Pass: 11.5 ft. (3,500 cm); 4-Pass: 17 ft. (5,180 cm)|
|Vehicle Warranty||2-year/2,000 hour, Limited|
