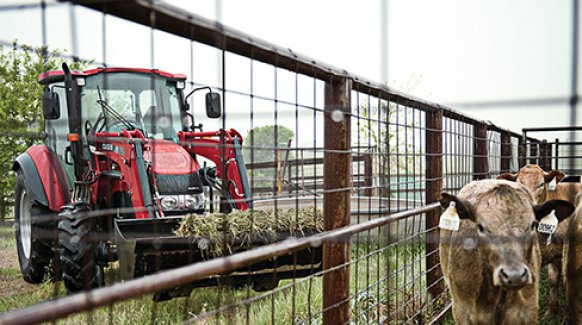

Case IH Products Utility Farmall 95C - Tier 4A (PRIOR MODEL)

Double tap to zoom



Features

FIVE MODELS TO CHOOSE FROM

  • Available in five models, the Farmall 75C, 85C, 95C, 105C and 115C
    • Produce 65, 75, 85, 95 and 98 PTO horsepower, respectively
  • Offer transmission choices that let you choose the ratio and shuttle system that works best for you

FUEL-SAVING CASE IH FPT 3.2L DIESEL ENGINE

  • 4-cylinder, fuel-efficient, turbocharged engine
  • The Farmall 85C, 95C, 105C and 115C engines are intercooled

MORE TRANSMISSION CHOICES

  • Feature 8-speed forward, 8-speed reverse (8X8) mechanical shuttle transmissions
  • Optional 12X12 and hydraulic-shuttle transmissions

SEPARATE STEERING AND IMPLEMENT HYDRAULIC RESERVOIRS

  • When lifting heavy loads you don't have to sacrifice the ability to steer and maneuver
  • The open center hydraulic system, one standard remote valve and three-point hitch - featuring flexible lift arms and telescopic stabilizers - make the tractors capable of handling nearly any implement

Specifications

Make Case IH
Model Farmall 95C Straddle (2008-2012)
Engine Performance
Advertised Engine Power, Rated, hp (kW) 95 (71)
Maximum Engine Power, hp (kW) Same as Advertised
Rated Engine Speed, rpm 2300
Power Boost, hp (kW) No boost
Fuel Tank capacity, gal (L) 23.2 (88)
Diesel Exhaust Fluid (DEF) tank capacity, gal (L) No DEF
PTO Performance
PTO Horsepower, Basic / Optional Transmission, hp (kW) 80 (59.7)
PTO Speeds, rpm 540
PTO operational Type (Independent; Live; Continuous) Independent
Basic Engine
Engine Make Case IH FPT
Engine Model 445TA/MND
Number of Cylinders 4
Displacement, cu in (L) 274 (4.5)
Engine Bore, in (mm) 4.095 (104)
Engine Stroke, in (mm) 5.20 (132)
Block Design, Replaceable Liners Dry Liners
Aspiration, Turbocharged or Naturally Aspirated Turbocharged and Intercooled
Fuel System
Fuel System Description Rotary-Distributor Type
Fuel System Control, Electronic or Mechanical Mechanical
Fuel Injection to combustion chamber, Direct or Indirect Direct
Emission and Exhaust Treatment
Emission Level, US EPA Tier Tier 3
Selective Catalytic Reduction (SCR) w/Diesel Exhaust Fluid (DEF) No
Exhaust Gas Recirculation (EGR) No
Diesel Oxidation Catalyst (DOC) No
Diesel Particulate Filter (DPF) np
Exhaust Pipe, Vertical stack or Horizontal Underhood muffler, vertical stack
Cooling System
Fan Drive Type Belt
Electrical System
System Rating, Volts 12
Alternator Rating, Amps 120
Basic Transmission Configuration
Manufacturer's Description 16x16 Synchronized Mechanical Shuttle
Transmission Type 4 Synchronized Speeds in 4 Ranges
Number of Forward / Reverse Speeds 16F / 16R
Maximum Speed Forward, mph (kph) 25 (40)
Creeper Range Available No
Shuttle (Forward-Reverse) Available Yes
Optional Transmission 1
Manufacturer's Description 16x16 Power Shuttle
Transmission Type 4 Synchronized Speeds in 4 Ranges
Number of Forward / Reverse Speeds 16F / 16R
Optional Transmission 2
Manufacturer's Description No option
Transmission Type No option
Number of Forward / Reverse Speeds No option
Wheel or Track Configuration
Drive Wheels or Tracks; 2WD, 4WD, 2WD / 4WD, 2 Tracks or 4 Tracks 4WD
Steering Configuration: Front Steer, Frame Articulated, or Track-type Steer Front Steer
Rear Axle Assembly
Final Drive Location and Description Planetary / Inboard
Axle Output End, Flange or Bar Flange
Axle Bar Diameter, in (mm) No bar axle
Front Axle
Suspended Front Axle Available No
Brakes
Service Brake Type Wet Disc
Hydraulic System
Hydraulic System Type Open center
Main Hydraulic Pump Type Gear
Implement Pump Flow, gpm (Lpm) 15 (57)
Optional Pump Flow, gpm (Lpm) No option
Number of Standard Remote Valves 1 std; 2 opt
3-Point Hitch Features
3-Point Hitch Category Category 2
Optional Hitch Category Category 1
Draft Sensing or Lift Control Mechanical lower link
Draft Link Ends Adjustable Yes
3-Point Hitch Lift Capacity
Standard Lift Capacity 24 Inches behind pin, lb (kg) 3,962 (1800) - ASAE
Optional Lift Capacity 24 Inches behind pin, lb (kg) No option
Standard Lift Capacity at lift pin, lb (kg) np
Optional Lift Capacity at lift pin, lb (kg) No option
Drawbar
Drawbar Description Swinging, extendable
Wheelbase / Trackbase
Wheelbase, 2WD, in (mm) No 2WD
Wheelbase/Trackbase, MFD/4WD or Track, in (mm) 86.0 (2185)
Length
Length, 2WD, incl. Hitch/Drawbar, in (mm) No 2WD
Length, MFD/4WD or track, incl. Hitch/Drawbar, in (mm) 157 (3987)
Vertical Dimensions
Height to Top of Cab, in (mm) 91.4 (2322)
Height to Top of ROPS raised, in (mm) 95.6 (2428)
Width w/Tires or Tracks
Overall Width, with standard wheels or tracks, in(Mm) 69.6 (1768) min / 93.1 (2365) max
Weight (w/Tires or Tracks)
Weight, 2WD w/ROPS, lb (kg) No 2WD
Weight, MFD/4WD w/ROPS, lb (kg) 6,614 (3000)
Weight, 2WD w/Cab, lb (kg) No 2WD
Weight, MFD/4WD or Tracks w/Cab, without ballast, lb (kg) 7,055 (3200)
Weight, Total allowable, w/maximum ballast, lb (kg) np
Tire / Track Size
Front Tire Size, 2WD No 2WD
Front Tire Size orTrack Width, MFD/4WD or Track 11.2 R24 (R1W)
Rear Tire Size or Track Width 16.9 R30 (R1W)
Sales Literature
Literature Number CIH5021001
Literature Date 05/01/2010
Operators Manual
Operators Manual Number 87477111
Operators Manual Date 01/08/2014
Product Manual
Product Manual Number --
Product Manual Date --
Entry Dates
Manufacturing Status, Current or Archive Archive 2013
First Entry Date 04/01/2008
Revision Date January, 2011; May, 2012; Archived 7Jan2013
