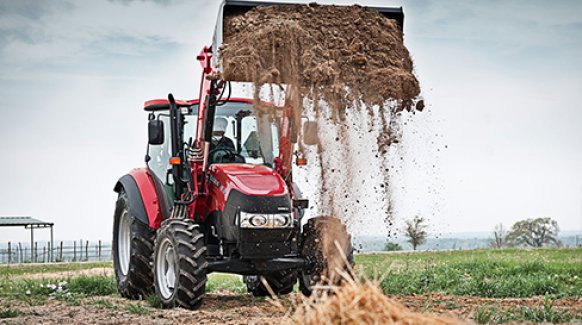

Case IH Products Utility Farmall 115C - Tier 4A (PRIOR MODEL)

Double tap to zoom



Features

FIVE MODELS TO CHOOSE FROM

  • Available in five models, the Farmall 75C, 85C, 95C, 105C and 115C
    • Produce 65, 75, 85, 95 and 98 PTO horsepower, respectively
  • Offer transmission choices that let you choose the ratio and shuttle system that works best for you

FUEL-SAVING CASE IH FPT 3.2L DIESEL ENGINE

  • 4-cylinder, fuel-efficient, turbocharged engine
  • The Farmall 85C, 95C, 105C and 115C engines are intercooled

MORE TRANSMISSION CHOICES

  • Feature 8-speed forward, 8-speed reverse (8X8) mechanical shuttle transmissions
  • Optional 12X12 and hydraulic-shuttle transmissions

SEPARATE STEERING AND IMPLEMENT HYDRAULIC RESERVOIRS

  • When lifting heavy loads you don't have to sacrifice the ability to steer and maneuver
  • The open center hydraulic system, one standard remote valve and three-point hitch - featuring flexible lift arms and telescopic stabilizers - make the tractors capable of handling nearly any implement

Specifications

Make Case IH
Model Farmall 115C (2014)
Engine Performance
Advertised Engine Power, Rated, hp (kW) 115 (86)
Maximum Engine Power, hp (kW) Same as advertised
Rated Engine Speed, rpm 2300
Power Boost, hp (kW) No boost
Fuel Tank capacity, gal (L) 30.3 (115)
Diesel Exhaust Fluid (DEF) tank capacity, gal (L) No DEF
PTO Performance
PTO Horsepower, Basic / Optional Transmission, hp (kW) 98 (73)
PTO Speeds, rpm 540 / 1000
PTO operational Type (Independent; Live; Continuous) Independent
Basic Engine
Engine Make Case IH FPT
Engine Model 3.4 L
Number of Cylinders 4
Displacement, cu in (L) 207 (3.4)
Engine Bore, in (mm) 3.90 (99)
Engine Stroke, in (mm) 4.33 (110)
Block Design, Replaceable Liners Parent bore block
Aspiration, Turbocharged or Naturally Aspirated Turbocharged, air-to-air aftercooled
Fuel System
Fuel System Description High Pressure Common Rail
Fuel System Control, Electronic or Mechanical Electronic
Fuel Injection to combustion chamber, Direct or Indirect Direct
Emission and Exhaust Treatment
Emission Level, US EPA Tier Tier 4A (Interim)
Selective Catalytic Reduction (SCR) w/Diesel Exhaust Fluid (DEF) No
Exhaust Gas Recirculation (EGR) Cooled EGR
Diesel Oxidation Catalyst (DOC) DOC standard
Diesel Particulate Filter (DPF) DPF standard
Exhaust Pipe, Vertical stack or Horizontal Vertical stack
Cooling System
Fan Drive Type Belt
Electrical System
System Rating, Volts 12
Alternator Rating, Amps 120
Basic Transmission Configuration
Manufacturer's Description 12x12 Mechanical Shuttle
Transmission Type 4 Synchronized gears, 3 non-synch ranges
Number of Forward / Reverse Speeds 12F/ 12R
Maximum Speed Forward, mph (kph) 19 (30) std; 25 (40) opt.
Creeper Range Available Yes, see optional
Shuttle (Forward-Reverse) Available Standard
Optional Transmission 1
Manufacturer's Description 12x12 Mechanical with Creeper
Transmission Type 4 Synch gears, 3 Ranges + Creeper
Number of Forward / Reverse Speeds 20F/ 12R
Optional Transmission 2
Manufacturer's Description 12x12 Power Shuttle
Transmission Type 4 Synchronized gears, 3 non-synch ranges
Number of Forward / Reverse Speeds 12F/ 12R
Wheel or Track Configuration
Drive Wheels or Tracks; 2WD, 4WD, 2WD / 4WD, 2 Tracks or 4 Tracks 2WD / 4WD
Steering Configuration: Front Steer, Frame Articulated, or Track-type Steer Front Steer
Rear Axle Assembly
Final Drive Location and Description Inboard planetary
Axle Output End, Flange or Bar Flange
Axle Bar Diameter, in (mm) No bar axle
Front Axle
Suspended Front Axle Available No
Brakes
Service Brake Type Wet disc
Hydraulic System
Hydraulic System Type Open Center
Main Hydraulic Pump Type Gear
Implement Pump Flow, gpm (Lpm) 12.5 (47)
Optional Pump Flow, gpm (Lpm) 16.9 (64)
Number of Standard Remote Valves 1 std; 2 opt
3-Point Hitch Features
3-Point Hitch Category Category 2
Optional Hitch Category np
Draft Sensing or Lift Control Draft sensing top link
Draft Link Ends Adjustable Yes
3-Point Hitch Lift Capacity
Standard Lift Capacity 24 Inches behind pin, lb (kg) 4,339 lbs (1,968)
Optional Lift Capacity 24 Inches behind pin, lb (kg) 5,620 (2549)
Standard Lift Capacity at lift pin, lb (kg) np
Optional Lift Capacity at lift pin, lb (kg) np
Drawbar
Drawbar Description Swinging, Category 2
Wheelbase / Trackbase
Wheelbase, 2WD, in (mm) 91.2 (2316)
Wheelbase/Trackbase, MFD/4WD or Track, in (mm) 89 (2261)
Length
Length, 2WD, incl. Hitch/Drawbar, in (mm) 149 (3789)
Length, MFD/4WD or track, incl. Hitch/Drawbar, in (mm) 149 (3789)
Vertical Dimensions
Height to Top of Cab, in (mm) 100 (2540)
Height to Top of ROPS raised, in (mm) 103 (2616)
Width w/Tires or Tracks
Overall Width, with standard wheels or tracks, in(Mm) 83 (2108) across fenders
Weight (w/Tires or Tracks)
Weight, 2WD w/ROPS, lb (kg) 6,768 (3070)
Weight, MFD/4WD w/ROPS, lb (kg) 7,452 (3380)
Weight, 2WD w/Cab, lb (kg) 7,253 (3290)
Weight, MFD/4WD or Tracks w/Cab, without ballast, lb (kg) 7,937 (3600)
Weight, Total allowable, w/maximum ballast, lb (kg) 9,215 (4180)
Tire / Track Size
Front Tire Size, 2WD 10.00-16, 8 ply, F2
Front Tire Size orTrack Width, MFD/4WD or Track 12.4 R24 R1W
Rear Tire Size or Track Width 18.4 R30 R1W
Sales Literature
Literature Number CIH07151301
Literature Date 07/01/2013
Operators Manual
Operators Manual Number --
Operators Manual Date --
Product Manual
Product Manual Number TA-1322-12
Product Manual Date 12/01/2012
