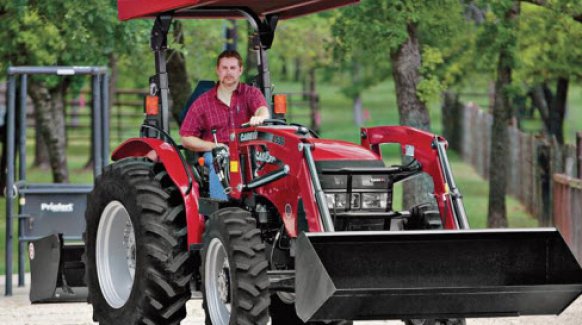

Case IH Products Utility Farmall 50A

Double tap to zoom



Features

Utility Tractor Performance that Goes Above and Beyond

Here's how you can get top-notch performance from a utility tractor without sacrificing value: check out the utility Farmall A tractors from Case IH. These scrappy performers offer everything you want in a basic utility tractor, and more. We designed these no-nonsense machines for smaller acreage farms, rural estates, and municipal applications, as well as for commercial users who need a reliable, efficient tractor.
And then we added performance features, taking every aspect just a step further. For instance, we equip every utility Farmall A tractor with standard features you might not expect on a utility machine - like a 3-point hitch with flexible link ends, a folding ROPS and a rear remote. That's performance above and beyond expectations.



Higher Standard

  • Proven Tier 4 B/Final engines
  • Reliable mechanical fuel injection system
  • Standard 3-point hitch gives you flexible link ends for easy implement attachment, and telescopic stabilizer to keep implements steady
  • 540 rpm PTO - fully independent to power your implements
  • Standard planetary final drive rear axle
  • Rugged construction for long service life
  • Independent hydraulic flow to implements
  • One rear remote for easy hookup of hydraulic tools

Model Options

  • Dependable and fuel efficient 4-cylinder diesel engines
  • Straightforward mechanical transmission that’s easy to operate
  • Has four of the eight gears in the heavily used 2 to 8 mph (6 to 13 kph) working range
  • Optional 8F X 8R synchronized shift transmission available for on-the-fly shifting during roading and hauling
  • Plenty of pulling power and hydraulics for loading, blading, tilling, moving and baling chores
  • Available in 2WD or 4WD to deliver all the traction and power you need for your operation
  • Available in 3 different models ranging in horsepower from 53-70 HP engines

Real Value Means Getting the Most Tractor You Can for Your Dollar

To be a genuine value, your tractor can't scrimp where it matters most - toughness and durability, power and performance. The key is having the expertise and engineering know-how to design a machine that offers bottom-line economy without compromising quality. That's where the Farmall DNA shines through. That's hard working heritage that goes back to 1923, a tradition that makes the Farmall name a legend to generations of hard-to-please farmers without a nickel to waste. They know that real value means making every dollar work as hard as you do. Case IH utility Farmall A tractors include a rich array of performance features that make them worth more on the job - whatever the job happens to be.

Genuine Value

  • The utility Farmall A won’t slow down your chores
  • Three-point hitch with flexible links make it faster and easier to attach implements
  • Lift capacity of up to 1,896 lb (869 kg)
  • One remote valve is standard on all utility Farmall A tractors
  • Engine oil can be checked and filled without lifting the hood
  • Fuel tank is easily filled from the ground or the operator platform

Out Here, Comfort Is a Necessity

Out here, comfort isn't a luxury - it's the only way to keep working all day long under tough conditions. The Case IH utility Farmall A tractors are designed with hardworking operators in mind.

  • Larger operator platform
  • Low vibration levels
  • Fully adjustable seat  to fit every operator
  • Essential controls are right at your fingertips

Increase the Versatility of Your Farmall A Tractor

Handle a variety of tough tasks with maximum efficiency with loaders from Case IH designed specifically for the utility Farmall A series tractors.

  • Your new utility Farmall A series tractor can be ordered loader-ready from the factory
  • Install and remove in minutes
  • Switch easily between attachments, no tools required
  • Front guard protects tractor grill during loader operations
  • Front grill guard can be mounted for everyday protection without the loader

Specifications

Make Case IH
Model Farmall 50A (2015-Present)
Engine Performance
Advertised Engine Power, Rated, hp (kW) 53 (39.5 )
Maximum Engine Power, hp (kW) Same as advertised
Rated Engine Speed, rpm 2700
Power Boost, hp (kW) No boost
Fuel Tank capacity, gal (L) 13 (49)
Diesel Exhaust Fluid (DEF) tank capacity, gal (L) No DEF
PTO Performance
PTO Horsepower, Basic / Optional Transmission, hp (kW) 45 (33.6)
PTO Speeds, rpm 540 std; 540/540E opt.
PTO operational Type (Independent; Live; Continuous) Independent
Basic Engine
Engine Make Case IH FPT
Engine Model 2.2 L
Number of Cylinders 3
Displacement, cu in (L) 135.9 (2.23)
Engine Bore, in (mm) 3.70 (94)
Engine Stroke, in (mm) 4.21 (107)
Block Design, Replaceable Liners Parent bore block
Aspiration, Turbocharged or Naturally Aspirated Wastegate turbocharged
Fuel System
Fuel System Description High Pressure Common Rail
Fuel System Control, Electronic or Mechanical Electronic
Fuel Injection to combustion chamber, Direct or Indirect Direct
Emission and Exhaust Treatment
Emission Level, US EPA Tier Tier 4B / Final
Selective Catalytic Reduction (SCR) w/Diesel Exhaust Fluid (DEF) No
Exhaust Gas Recirculation (EGR) Internal EGR
Cleanup Catalyst (CUC) No
Diesel Oxidation Catalyst (DOC) DOC standard
Diesel Particulate Filter (DPF) Particulate Matter Catalyst
Exhaust Pipe, Vertical stack or Horizontal Downswept std; Vertical opt
Cooling System
Fan Drive Type Belt
Electrical System
System Rating, Volts 12
Alternator Rating, Amps 75
Basic Transmission Configuration
Manufacturer's Description 8Fx8R Mechanical Shuttle
Transmission Type Synchro-shuttle
Number of Forward / Reverse Speeds 8F / 8R
Maximum Speed Forward, mph (kph) np
Creeper Range Available No
Shuttle (Forward-Reverse) Available Standard
Optional Transmission 1
Manufacturer's Description No option
Transmission Type No option
Number of Forward / Reverse Speeds No option
Optional Transmission 2
Manufacturer's Description No option
Transmission Type No option
Number of Forward / Reverse Speeds No option
Wheel or Track Configuration
Drive Wheels or Tracks; 2WD, 4WD, 2WD / 4WD, 2 Tracks or 4 Tracks 2WD / 4WD
Steering Configuration: Front Steer, Frame Articulated, or Track-type Steer Front Steer
Rear Axle Assembly
Final Drive Location and Description Planetary
Axle Output End, Flange or Bar Flange
Axle Bar Diameter, in (mm) No bar axle
Front Axle
Suspended Front Axle Available No
Brakes
Service Brake Type Wet disc
Hydraulic System
Hydraulic System Type Open Center
Main Hydraulic Pump Type Dual gear
Implement Pump Flow, gpm (Lpm) 11.9 (45)
Optional Pump Flow, gpm (Lpm) No option
Number of Standard Remote Valves 1 std.; 2nd opt.
3-Point Hitch Features
3-Point Hitch Category Category 2
Optional Hitch Category No option
Draft Sensing or Lift Control Draft and Position Control
Draft Link Ends Telescopic Standard
3-Point Hitch Lift Capacity
Standard Lift Capacity 24 Inches behind pin, lb (kg) 2,701 (1225) OECD
Optional Lift Capacity 24 Inches behind pin, lb (kg) No option
Standard Lift Capacity at lift pin, lb (kg) np
Optional Lift Capacity at lift pin, lb (kg) No option
Drawbar
Drawbar Description np
Wheelbase / Trackbase
Wheelbase, 2WD, in (mm) 96.4 (2450)
Wheelbase/Trackbase, MFD/4WD or Track, in (mm) 97.6 (2478)
Length
Length, 2WD, incl. Hitch/Drawbar, in (mm) 129.5 (3290)
Length, MFD/4WD or track, incl. Hitch/Drawbar, in (mm) 134 (3404)
Vertical Dimensions
Height to Top of Cab, in (mm) No cab
Height to Top of ROPS raised, in (mm) 92.7 (2365)
Width w/Tires or Tracks
Overall Width, with standard wheels or tracks, in (mm) 67.5 (1714)
Weight (w/Tires or Tracks)
Weight, 2WD w/ROPS, lb (kg) 3,770 (1710)
Weight, MFD/4WD w/ROPS, lb (kg) 4,079 (1850)
Weight, 2WD w/Cab, lb (kg) No cab
Weight, MFD/4WD or Tracks w/Cab, without ballast, lb (kg) No cab
Weight, Total allowable, w/maximum ballast, lb (kg) 4,871 (2210) preliminary
Tire / Track Size
Front Tire Size, 2WD 7.50x16, 6PR
Front Tire Size orTrack Width, MFD/4WD or Track 8.3x24, 6PR R1
Rear Tire Size or Track Width 13.6x28, 8PR R1
Sales Literature
Literature Number CIH04041601
Literature Date 4/1/2016
Secondary Literature Source
Secondary Literature Number TA-1413-14
Secondary Literature Date 11/1/2014
Other Documentation
Document Number --
Document Date --
Status and Entry Dates
Manufacturing Status, Current or Archive Current
First Entry Date 11/1/2014
Revision Date 10/1/2016
