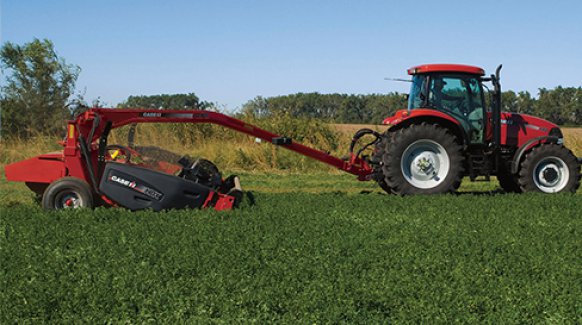

Case IH Products Maxxum 125

Double tap to zoom



Features

Performance, Versatility, Comfort. A Tractor Like This Comes Once in a Generation

Maxxum tractors have joined the ranks of Case IH high horsepower tractors powered by FPT engines with proven SCR exhaust technology that provides increased performance and fuel efficiency. Maxxum tractors are designed to handle the multiple tasks of livestock operations, row-crop applications and roadside mowing. In addition to enhanced cab visibility and thoughtfully designed controls and comfort, all models boast the PTO, hydraulics and transport power boost that are the hallmarks of Maxxum tractor performance

Power and Productivity

  • More horsepower when you need it for rough spots and tough jobs
  • Better engine performance and fuel economy
  • Meets today's emissions standards
  • Power Boost to handle tough conditions for power and productivity


Intuitive Innovation

Case IH design engineers work with real tractor users to innovate the new ideas we include in every tractor we make.

Includes features like:

  • The exclusive Turn Assist option to improve loader productivity
  • A convenient roof hatch for better visibility


Maximum Uptime

  • Case IH design technology provides long-term durability and outstanding fuel efficiency for tractors that start out strong and keep running strong over the long haul.
  • Ground-level maintenance access makes checking fluid and filters a snap.
  • 600-hour oil and filter change intervals keep you up and running more hours per season, season after season.


Operator Environment

  • Offers better comfort, better visibility and better control
  • In the Maxxum MultiController series, the ergonomic Multi-Control Armrest makes every move count.
  • Case IH cab suspension provides a smooth, comfortable ride in the field or out on the road.


A Better Day's Work Starts With a Better Workplace

Operator comfort isn't about making the workday easy. It's all about making every day as productive as possible, even when it starts before sunrise or stretches past sunset. The Maxxum operator environment is designed to make the long hours, and the tough tasks, fly by. There's your choice of three seats, all with unmatched visibility, and industry-leading suspension. All in all, the Case IH Maxxum cab provides the comfort and ease of operation needed to maximize in-field performance during long workdays.

Built-In Comfort

Instructional Seat

  • The optional instructional seat is ideal for use when training new operators and folds down to provide a work surface with twin cup holders.


Storage Compartments

  • The standard front storage box is semi-refrigerated by the console vent.
  • A hinged lid and recessed storage corner are also available.


Tilt and Telescopic Steering Column

  • The Maxxum's tilt and telescopic steering column is adjustable to suit any size operator.


Control Accessibility

Powershift MultiControl Handle and Armrest

  • The MultiControl handle places the controls operators use 85-90% of the time in one hand so the operator can focus on the task.
  • This translates to less fatigue and stress for more productivity.


Foot Throttle

  • Standard Equipment


Updated Instrument Display

  • New Selective Catalytic Reduction SCR) system information and warnings have been added to the instrumentation display.


Visibility and Platform

Single-Piece Molded Floor

  • The easy-to-clean floor covering reduces noise and vibration .
  • The floor area offers plenty of storage and legroom.


High Visibility Roof Window/Panel

  • Adds 4.5 square feet of upward visibility - ideal for loader operation.


Right-Hand Door

  • Fully opening and operational.
  • Standard on all models.


Electronic Joystick (Optional)

  • Operates front or rear remote attachments.


Cab Suspension

  • Reduces the shock loads to the operator by 25%.
  • Offers superior operator comfort on the road and in the field.
  • Designed with durable components, this continuously active, adjustable system offers five settings and a full four inches of cab travel.


Premium Air Seat

The premium choice among the three seats available, offering the latest in comfort technologies. It comes equipped with:

  • Low-frequency suspension system
  • A fore/aft isolation
  • A retractable seat belt
  • An adjustable armrest and backrest
  • Lumbar support
  • Base cushion adjustment
  • A heated cushion


Multi-Control Armrest

  • Innovative functionality and easy operation.
  • The same technology found on Case IH Puma®, Magnum™ and Steiger® Tractors
  • Provides access to all tractor controls and moves with the seat, allowing better vision and control of the implement at work.


Better Visibility

The Maxxum SurroundVision cab offers:

  • Unobstructed vision in all directions
  • High-visibility roof panel with optional opening window
  • Extended roofline beyond the glass to provide extra shade
  • The narrow, sloping hood is closely formed around the engine, allowing for excellent visibility of front-mounted implements.

Specifications

Make Case IH
Model Maxxum 125 (2015-Present)
Engine Performance
Advertised Engine Power, Rated, hp (kW) 125 (92)
Maximum Engine Power, hp (kW) 155 (114)
Rated Engine Speed, rpm 2200
Power Boost, hp (kW) 30 (22)
Fuel Tank capacity, gal (L) 52.2 (198) std; 58.6 (222) opt.
Diesel Exhaust Fluid (DEF) tank capacity, gal (L) 10.4 (39.5)
PTO Performance
PTO Horsepower, Basic / Optional Transmission, hp (kW) 105 (78)
PTO Speeds, rpm 540 / 1000
PTO operational Type (Independent; Live; Continuous) Independent
Basic Engine
Engine Make Case IH FPT
Engine Model 4.5 L
Number of Cylinders 4
Displacement, cu in (L) 274 (4.5)
Engine Bore, in (mm) 4.095 (104)
Engine Stroke, in (mm) 5.20 (132)
Block Design, Replaceable Liners Parent bore
Aspiration, Turbocharged or Naturally Aspirated Turbocharged w/ Air-to-Air Intercooler
Fuel System
Fuel System Description High Pressure Common Rail
Fuel System Control, Electronic or Mechanical Electronic
Fuel Injection to combustion chamber, Direct or Indirect Direct
Emission and Exhaust Treatment
Emission Level, US EPA Tier Tier 4B / Final
Selective Catalytic Reduction (SCR) w/Diesel Exhaust Fluid (DEF) SCR w/ DEF
Exhaust Gas Recirculation (EGR) No
Cleanup Catalyst (CUC) CUC standard
Diesel Oxidation Catalyst (DOC) DOC standard
Diesel Particulate Filter (DPF) No
Exhaust Pipe, Vertical stack or Horizontal Vertical stack
Cooling System
Fan Drive Type Viscous
Electrical System
System Rating, Volts 12
Alternator Rating, Amps 120 std; 150 or 200 opt
Basic Transmission Configuration
Manufacturer's Description 16x16 Semi-Powershift
Transmission Type Semi-Powershift
Number of Forward / Reverse Speeds 16F / 16R
Maximum Speed Forward, mph (kph) 25 (40)
Creeper Range Available Optional
Shuttle (Forward-Reverse) Available Standard
Optional Transmission 1
Manufacturer's Description 17x16 Semi-Powershift (25 mph)
Transmission Type Semi-Powershift
Number of Forward / Reverse Speeds 17F /16R
Optional Transmission 2
Manufacturer's Description 17x16 Semi-Powershift (31 mph)
Transmission Type Semi-Powershift
Number of Forward / Reverse Speeds 17F /16R
Wheel or Track Configuration
Drive Wheels or Tracks; 2WD, 4WD, 2WD / 4WD, 2 Tracks or 4 Tracks 4WD
Steering Configuration: Front Steer, Frame Articulated, or Track-type Steer Front Steer
Rear Axle Assembly
Final Drive Location and Description Planetary / Inboard
Axle Output End, Flange or Bar Flange std; Bar opt.
Axle Bar Diameter, in (mm) 3.625 (92)
Front Axle
Suspended Front Axle Available No; See MultiController model
Brakes
Service Brake Type Wet disc
Hydraulic System
Hydraulic System Type Open center std; PFC opt.
Main Hydraulic Pump Type Fixed displacement
Implement Pump Flow, gpm (Lpm) 21.1 (80)
Optional Pump Flow, gpm (Lpm) 29.8 (113)
Number of Standard Remote Valves 2 std; 3 or 4 opt
3-Point Hitch Features
3-Point Hitch Category Category 2
Optional Hitch Category Category 2 / 3N
Draft Sensing or Lift Control Electronic, lower link pins
Draft Link Ends Telescopic Yes
3-Point Hitch Lift Capacity
Standard Lift Capacity 24 Inches behind pin, lb (kg) 6,200 (2812) OECD
Optional Lift Capacity 24 Inches behind pin, lb (kg) 6,900 (3130) OECD
Standard Lift Capacity at lift pin, lb (kg) np
Optional Lift Capacity at lift pin, lb (kg) np
Drawbar
Drawbar Description Category 3, Swinging
Wheelbase / Trackbase
Wheelbase, 2WD, in (mm) No 2WD
Wheelbase/Trackbase, MFD/4WD or Track, in (mm) 104 (2642)
Length
Length, 2WD, incl. Hitch/Drawbar, in (mm) No 2WD
Length, MFD/4WD or track, incl. Hitch/Drawbar, in (mm) 175.8 (4465)
Vertical Dimensions
Height to Top of Cab, in (mm) 80 (2032)
Height to Top of ROPS raised, in (mm) No open ROPS
Width w/Tires or Tracks
Overall Width, with standard wheels or tracks, in (mm) 98 (2489) Bar axle ends
Weight (w/Tires or Tracks)
Weight, 2WD w/ROPS, lb (kg) No 2WD
Weight, MFD/4WD w/ROPS, lb (kg) No open ROPS
Weight, 2WD w/Cab, lb (kg) No 2WD
Weight, MFD/4WD or Tracks w/Cab, without ballast, lb (kg) 11,300 (5125)
Weight, Total allowable, w/maximum ballast, lb (kg) 19,841 (9000)
Tire / Track Size
Front Tire Size, 2WD No 2WD
Front Tire Size orTrack Width, MFD/4WD or Track 380/85 (14.9) R28 R1W
Rear Tire Size or Track Width 460/85 (18.4) R38 R1W
Sales Literature
Literature Number CIH01081501
Literature Date 1/1/2015
Secondary Literature Source
Secondary Literature Number --
Secondary Literature Date --
Other Documentation
Document Number TA-1407-14
Document Date 11/1/2014
Status and Entry Dates
Manufacturing Status, Current or Archive Current
First Entry Date 11/1/2014
Revision Date 2/1/2015
